Why is Square Aluminum Extrusion the Superior, Essential Choice for Your Designs?

Struggling to find a material that is strong, versatile, and cost-effective? I’ve seen promising projects get derailed by the wrong material choice, causing budget overruns and timeline disasters.

From my years of experience, I can tell you that square aluminum extrusion is absolutely a game-changer. It’s a profile created by forcing heated aluminum alloy through a square-shaped die. This process gives us a uniquely strong, lightweight, and incredibly versatile building block for countless industrial applications.

But what makes it so special, and how can you use it effectively in your own projects? Let’s break it down, step by step, so you can specify your needs with confidence.

What exactly is a square aluminum extrusion?

Are you sometimes confused by all the industry jargon? It’s tough to feel confident specifying a part if you don’t fully understand the terminology. I get it, so let me explain it simply.

I define a square aluminum extrusion as a semi-finished profile made by pushing a heated aluminum billet through a square die. Think of it like squeezing toothpaste from a tube, but the opening is a perfect square, creating a long, uniform, and hollow bar.

To really grasp what a square aluminum extrusion is, it helps to understand the core elements and the process. In my factory, we handle these components every single day, and knowing them is the first step to ensuring quality.

The Core Components

The entire process revolves around three key items: the billet, the die, and the extrusion press.

• The Billet: This is the raw material. It’s a solid, cylindrical log of a specific aluminum alloy. The choice of alloy is critical as it determines the final properties of the square aluminum extrusion, such as its strength and corrosion resistance. We carefully select the right alloy based on the customer’s application requirements.
• The Die: This is essentially the mold. It’s a disc of high-strength H13 tool steel with a precise, square-shaped opening cut into it. The design and quality of this die are what guarantee the dimensional accuracy and surface finish of the final profile. I personally oversee our die-making process because a small error here can lead to big problems down the line.
• The Press: This is the machine that provides the immense force needed. A hydraulic ram pushes the heated billet through the die.

Understanding these terms is fundamental for clear communication between you, the buyer, and us, the manufacturer.

By knowing these parts, you can ask more precise questions about the materials and tooling being used for your project, which is a key part of effective supplier management. This simple knowledge helps you avoid miscommunication and ensures you get the exact square aluminum extrusion you designed.

What are the key benefits of a square aluminum extrusion?

Are you weighing different material options for your project? I know that choosing the wrong one can be a costly mistake in terms of both money and performance. I’ve built my business on the incredible advantages of aluminum.

For me, the key benefits of square aluminum extrusion are its amazing strength-to-weight ratio, natural corrosion resistance, and total design flexibility. I’ve also found it’s highly recyclable and cost-effective, making it a smart choice for both the budget and the environment.

These benefits aren’t just bullet points on a sales sheet; they translate into real-world advantages for your products and your bottom line. As a purchasing manager, understanding how these benefits apply to your projects is crucial. Let’s look at each one more closely.

Strength Without the Weight

This is the most famous benefit. A square aluminum extrusion can offer strength comparable to some types of steel, but at only about one-third of the weight. This is a huge advantage in applications where weight is a concern, such as in robotics, automation frames, and transportation. Lighter final products mean lower shipping costs and easier handling during assembly. In my experience, switching from steel to a well-designed square aluminum extrusion profile has saved my clients significant money in logistics.

Built-in Corrosion Resistance

Aluminum naturally forms a thin, tough layer of aluminum oxide on its surface when exposed to air. This layer acts as a protective barrier, preventing rust and corrosion. This is a massive benefit for products used outdoors or in humid environments. Unlike steel, a square aluminum extrusion doesn’t need to be painted or treated to resist corrosion, although various surface finishes can be applied for enhanced protection or aesthetics.

Unmatched Design Flexibility

The extrusion process allows for incredibly complex and precise shapes to be created at a relatively low tooling cost. While we’re talking about a square aluminum extrusion, that same process can create intricate internal and external features. This means you can design profiles that snap together, have screw channels, or serve multiple functions in one piece, reducing the number of parts in your final assembly. This simplifies manufacturing and can drastically lower assembly costs.

Here’s how these benefits translate to common applications:

How is a square aluminum extrusion profile manufactured?

Have you ever wondered how these precise metal shapes are actually made? Not understanding the manufacturing process can make it difficult to identify a quality supplier. I oversee this process daily in my factory, and I believe transparency is key.

In my factory, we manufacture a square aluminum extrusion profile using a hot extrusion process. We heat a solid aluminum cylinder, or ‘billet,’ to around 500°C and then use a powerful hydraulic press to force it through a hardened steel die with a square opening.

The basic concept is simple, but ensuring consistent quality across thousands of meters of profile requires strict process control at every stage. This is where a good supplier distinguishes themselves. A failure at any step can lead to dimensional inaccuracies or weak spots—precisely the kinds of defects that cause problems for you. Let me walk you through the critical steps we take.

Step 1: Billet Preparation and Heating

It all starts with the raw material. We use a billet cast from a specific aluminum alloy, like 6061 or 6063. The billet is cut to a specific length and then heated in a large oven to a temperature between 450-500°C (850-930°F). The temperature must be exact. If it’s too hot, the metal will be too soft and the surface finish will be poor. If it’s too cold, it will require too much pressure to extrude and can cause the die to crack.

Step 2: The Extrusion Process

The heated billet is transferred to the extrusion press. A lubricant is applied to it, and then a hydraulic ram applies immense pressure (from 100 to over 15,000 tons, depending on the profile size). This pressure forces the soft but solid aluminum through the square-shaped opening in the die. What emerges on the other side is a long, perfectly formed square aluminum extrusion profile. The speed of the extrusion is also a critical control point that affects the final finish.

Step 3: Quenching and Cooling

As the profile exits the die, it is cooled rapidly. This process, called quenching, can be done with air or water. This controlled cooling is a heat-treatment step that locks the aluminum molecules into a structure that gives the final square aluminum extrusion its strength and hardness. This is a crucial step for achieving the desired “temper,” like the common T6 temper.

Step 4: Stretching and Cutting

Even with a perfect process, the long profile may have some slight internal stress from the cooling process, causing minor twists. To correct this, the profile is gripped on both ends by a stretcher and pulled until it is perfectly straight. Finally, the straightened profiles are cut to the standard or custom lengths required by the customer. We perform quality checks here to ensure the length and straightness are within the specified tolerances.

How strong is a typical square aluminum extrusion?

Is aluminum actually strong enough for your demanding application? I know that doubts about strength can kill a great design idea before it even gets started. I get this question all the time from new clients, and the answer is: it’s surprisingly strong.

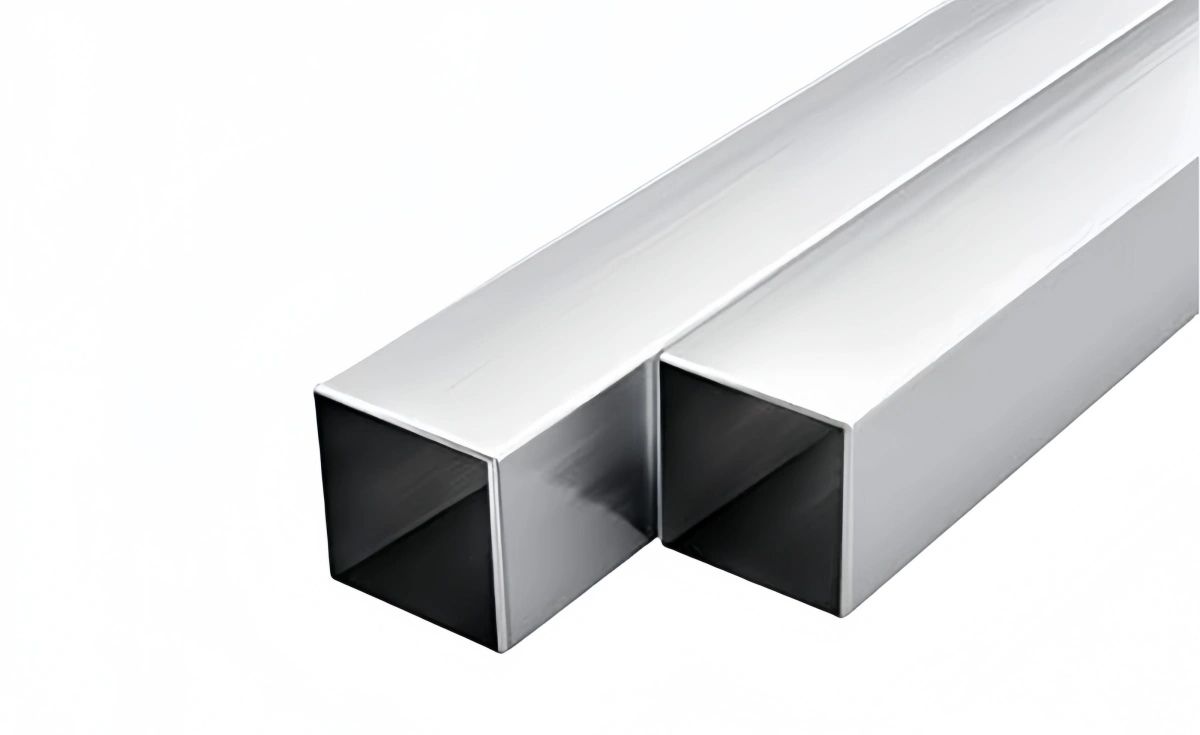

The strength of a square aluminum extrusion depends almost entirely on two factors: the alloy and the temper. I typically work with the 6061-T6 alloy for structural parts. It has a tensile strength of around 45,000 psi (310 MPa), making it robust enough for many industrial frames and supports.

The word “strong” can mean different things to different engineers. It’s not just one number. To make an informed decision, you need to understand what makes an extrusion strong and how to specify what you need. It comes down to the alloy, the temper, and the profile design itself.

Understanding Alloys and Tempers

This is the most important part. You can’t just ask for “aluminum.”

• Alloy: This is the recipe of the metal. Pure aluminum is soft. We add other elements like magnesium and silicon to create alloys with much higher strength. The 6xxx series (like 6061 and 6063) is the workhorse of the industry.
• Temperamento: This refers to the heat treatment process used to harden the alloy after extrusion. The “T6” in “6061-T6” is a very common temper. It involves solution heat-treating and then artificial aging to develop its full strength. An untreated profile would be much softer.

It’s Not Just Material, It’s Shape

The strength of a square aluminum extrusion also comes from its shape. The hollow square shape is inherently resistant to bending and twisting forces from multiple directions. You can increase the structural strength significantly by simply increasing the wall thickness of the profile. When you send us a drawing, the wall thickness is one of the most critical dimensions we look at to ensure the part will meet your performance needs.

Here is a quick comparison of two very common alloys I work with:

When you’re considering a square aluminum extrusion for your project, give your supplier details about the load it will need to bear. As a manufacturer, I can then recommend the perfect combination of alloy, temper, and wall thickness to ensure your product is a success.

Conclusione

In short, square aluminum extrusion is a powerful, versatile, and reliable material. Understanding its core benefits and how it is made helps you make smarter, more cost-effective choices for your next big project.
