Maximize Precision: Is Extruded Aluminum CNC the Ultimate Game-Changer for Your Parts?

Are your custom aluminum parts too costly or complex to produce efficiently? Many face this, struggling to balance intricate designs with budget constraints.

Yes, in my experience, combining aluminum extrusion with CNC machining is a powerful, often game-changing, strategy. Extruded aluminum CNC offers a brilliant way to get complex, precise parts while optimizing material use and often reducing costs.

This article explores the world of extruded aluminum CNC. We’ll look at what it is, if profiles can be machined, why it’s a great choice, and the significant benefits it offers.

What is extruded aluminum CNC machining?

Ever wondered how complex aluminum shapes with precise features are made? It’s often a smart combination of two powerful processes.

To put it simply, I see extruded aluminum CNC machining as a two-step manufacturing method. First, an aluminum profile with a specific cross-section is created through extrusion. Then, CNC machines add precise features like holes, slots, and contours to this pre-formed shape.

The synergy between aluminum extrusion and CNC machining allows for the creation of highly customized and accurate components. It leverages the strengths of both techniques. Extrusion efficiently produces a consistent cross-sectional shape, and CNC machining then refines this shape with intricate details that extrusion alone cannot achieve. This combined process, often referred to when discussing extruded aluminum cnc, is ideal for parts that have a uniform profile along their length but require specific features in certain areas.

The Extrusion Process: Creating the Base Shape

Aluminum extrusion is like squeezing toothpaste from a tube, but with hot aluminum. A heated aluminum billet (a solid block) is forced through a shaped opening in a die. The aluminum emerges with the die’s cross-sectional profile. This process can create very complex cross-sections and is excellent for producing long pieces with a consistent shape. Think of window frames, T-slots, or custom heat sinks – these are often aluminum extrusions. The key benefit here is getting a near-net shape, meaning the extruded profile is already very close to the final part’s overall form, especially along one axis. This significantly reduces the amount of material that needs to be removed later, which is a big plus for extruded aluminum cnc.

The CNC Machining Step: Adding Precision Features

Once the aluminum profile is extruded and cut to the desired length, it moves to the CNC (Computer Numerical Control) machining stage. CNC machines, such as mills or routers, use computer-programmed instructions to guide cutting tools. These tools precisely remove material from the extruded profile to add features like:

• Drilled and tapped holes
• Milled slots, pockets, or channels
• Counterbores or countersinks
• Chamfered or rounded edges
• Complex end cuts or contours

This is where the extruded aluminum cnc approach truly shines. While extrusion creates the overall shape, CNC machining adds the fine details and critical tolerances.

Key Characteristics of Extruded Aluminum CNC Parts

Parts made using the extruded aluminum cnc method have several distinct characteristics:

• Optimized Material Use: Extrusion creates a near-net shape, minimizing material waste.
• Design Flexibility: Combines complex profile shapes with precise machined features.
• Cost-Effectiveness: Often more economical than fully machining a part from a solid billet, especially for longer parts or when the profile complexity is high.

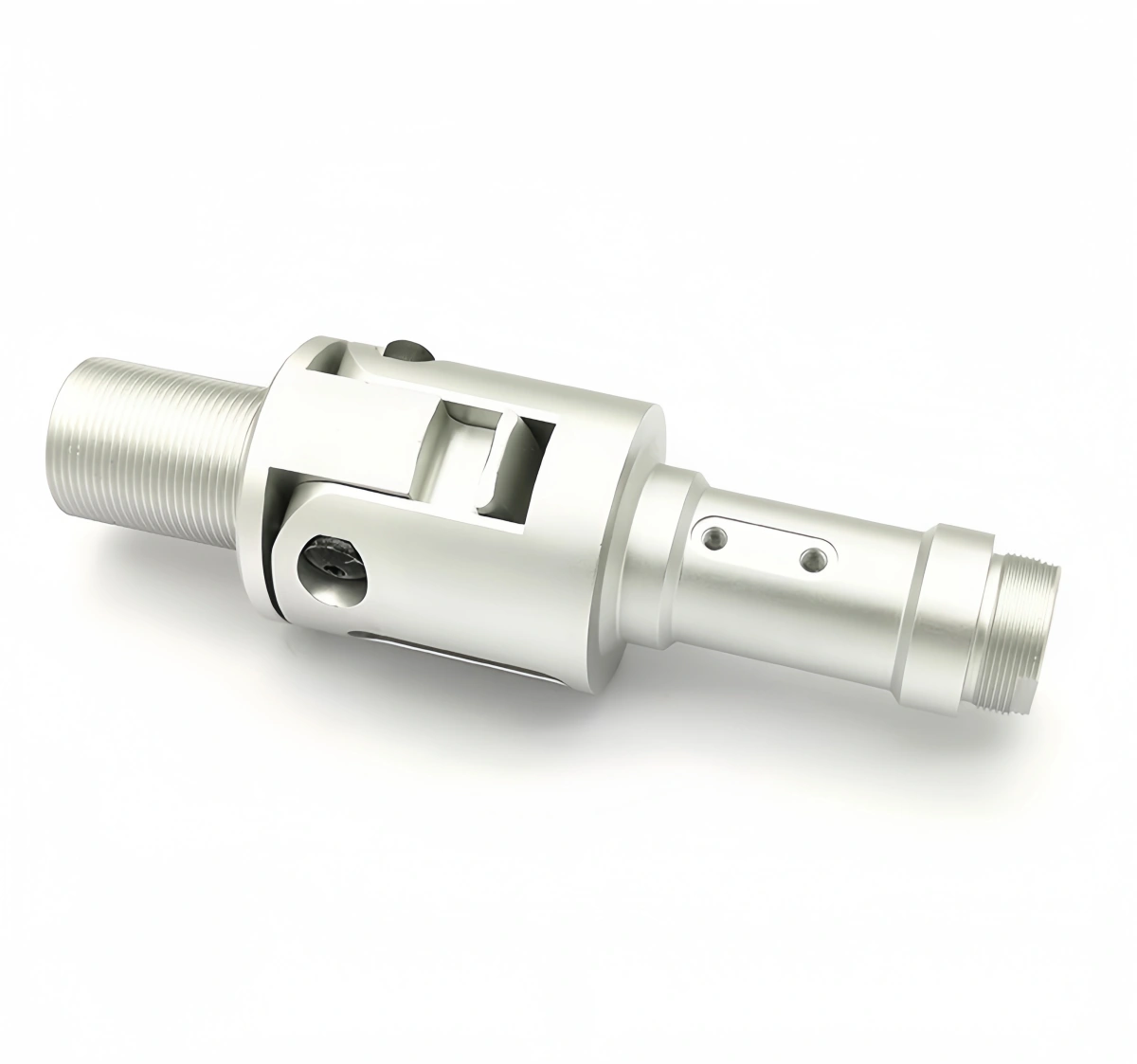

• Good Strength-to-Weight Ratio: Leverages aluminum’s inherent properties.

Here’s a comparison to illustrate:

This approach is a smart way to manufacture many types of components effectively.

Can you CNC machine extruded aluminum profiles?

So, you have an aluminum extrusion, perhaps a custom profile for your product. Can you then apply CNC machining to it?

Absolutely! I can tell you from countless projects, CNC machining extruded aluminum profiles is not only possible but a very common and effective manufacturing practice. It’s a core part of what makes extruded aluminum cnc so versatile.

Extruded aluminum profiles are excellent candidates for CNC machining because the base material is already formed into a shape that’s close to the final design’s main structure. This means the CNC machine doesn’t have to remove vast amounts of material from a solid block; instead, it focuses on adding precision features, details, and tolerances that the extrusion process itself cannot achieve. This synergy is fundamental to the efficiency of the extruded aluminum cnc method.

Common CNC Operations on Extruded Profiles

A wide range of CNC machining operations can be performed on aluminum extrusions. Here are some of the most frequent ones we handle:

• Cutting to Length: Precisely cutting extrusions to specific lengths with tight tolerances.
• Drilling: Creating holes of various diameters for fasteners, wiring, or assembly.
• Tapping: Adding internal threads to drilled holes for screws.
• Milling: Creating slots, pockets, channels, flat surfaces, or complex contours. This is a very versatile operation in extruded aluminum cnc.
• Counterboring/Countersinking: Creating stepped holes or angled openings for screw heads to sit flush or below the surface.
• Chamfering/Deburring: Adding angled edges or removing sharp burrs for safety, aesthetics, or improved fit.
• End Milling/Profiling: Machining specific shapes or features on the ends of the extruded profiles.

Workholding Challenges and Solutions for Extruded Aluminum CNC

One of the key considerations when performing extruded aluminum cnc operations is workholding – how the extruded profile is securely held in place during machining. Extrusions can have complex, non-uniform shapes, which can make standard clamping difficult.

• Custom Fixtures: For high-volume production or very complex profiles, we often design and build custom fixtures. These fixtures are specifically shaped to hold the extrusion securely and accurately, ensuring repeatability.
• Soft Jaws: Machinable soft jaws can be customized to grip the unique contours of an extrusion without damaging it.
• Vacuum Tables: For flatter profiles or operations on one side, vacuum tables can provide effective workholding.
  Our team at ALUT has extensive experience in developing effective workholding solutions for a vast array of extruded aluminum profiles.

Alloy Selection for Machinable Extrusions

The machinability of an aluminum extrusion depends on the alloy used. Most common aluminum alloys used for extrusion, like 6061 and 6063, have excellent machinability.

• 6061 Aluminum: Very popular for extrusions that will undergo subsequent CNC machining. It offers a good balance of strength, corrosion resistance, and machinability, making it ideal for many extruded aluminum cnc applications.
• 6063 Aluminum: Often chosen for its excellent surface finish and extrudability for complex shapes. It’s also readily machinable.
  Other alloys can be used, but their specific machining characteristics need to be considered.

Here’s a quick look at common CNC operations on extrusions:

Yes, CNC machining extruded aluminum is not just feasible, it’s a highly efficient way to produce sophisticated parts.

Why use CNC for extruded aluminum parts?

You might wonder, if extrusion already creates a shape, why add the step of CNC machining? Why is extruded aluminum cnc a preferred method?

In my view, we use CNC machining on extruded aluminum parts primarily to add precision, complexity, and features that the extrusion process alone simply cannot deliver. It’s about taking a good base shape and making it perfect for its final application.

While aluminum extrusion is fantastic for creating continuous, uniform profiles, it has limitations in producing features like cross-holes, pockets, threads, or very tight tolerances on specific dimensions. CNC machining bridges this gap. The combination, which we refer to as extruded aluminum cnc, allows manufacturers like us at ALUT to offer parts that are both cost-effective in their overall form and highly detailed in their specific features.

Achieving Tight Tolerances with Extruded Aluminum CNC

Extrusion itself has certain standard tolerances. For many applications, these are perfectly acceptable. However, when a part requires much tighter dimensional control – for example, for precise alignment, mating with other components, or a specific fit – CNC machining is essential.

• Positional Accuracy: CNC machines can locate features like holes or slots with very high accuracy relative to each other and to the overall profile.
• Precisión dimensional: Diameters of holes, widths of slots, and depths of pockets can be machined to tolerances often in the range of +/- 0.001 inches (0.025 mm) or even tighter.
• Acabado superficial: While extrusions can have a good surface finish, CNC machining can further refine specific surfaces if required, achieving smoother finishes for sealing or aesthetic purposes.
  This precision is a key driver for using the extruded aluminum cnc process.

Creating Complex Geometries on Extrusions

Extrusion can produce complex cross-sectional geometries, but it cannot easily create features that vary along the length of the extrusion or are perpendicular to the extrusion direction without secondary operations. CNC machining excels at this:

• Holes and Threads: Drilling and tapping holes of various sizes at precise locations.
• Pockets and Cavities: Milling out material to create internal pockets or recesses.
• Slots and Grooves: Machining slots for T-nuts, wiring, or other components.
• End Details: Creating complex profiles or features on the ends of the extruded parts.
• Angled Cuts and Chamfers: Adding beveled edges or angled surfaces.

Cost Benefits of Combining Extrusion and CNC

For many parts, the extruded aluminum cnc approach can be more cost-effective than machining the entire part from a solid block of aluminum (billet).

• Reduced Material Waste: Extrusion provides a near-net shape, so less material needs to be purchased and less material is turned into chips during machining.
• Faster Machining Cycles: Since the overall form is already present, CNC machines spend less time roughing out large volumes of material and can focus on the detailed features. This reduces machining time and cost.
• Optimized Tooling: While an extrusion die has an upfront cost, for higher volumes, this is often offset by the savings in material and machining time compared to fully machining each part.

Here’s a table illustrating when this combination is particularly advantageous:

Ultimately, using CNC for extruded aluminum parts allows for a powerful blend of design freedom, precision, and manufacturing efficiency.

What are benefits of extruded aluminum CNC process?

We’ve touched on why it’s used, but what are the tangible advantages of choosing the extruded aluminum CNC process for your components?

From my perspective, the benefits are substantial. The extruded aluminum CNC process offers reduced material waste, greater design flexibility, an excellent strength-to-weight ratio, and often faster production for many types of custom aluminum parts.

Combining the efficiency of aluminum extrusion with the precision of CNC machining creates a manufacturing strategy that delivers on multiple fronts. This extruded aluminum cnc methodology isn’t just about making parts; it’s about making them smarter, better, and often more economically. Let’s break down these advantages.

Material Savings in Extruded Aluminum CNC

This is a significant benefit. Extrusion creates a “near-net shape,” meaning the initial aluminum profile is already very close to the final part’s overall form, especially along its length.

• Less Raw Material Purchased: You start with a shape that requires less material to be removed compared to machining from a solid billet.
• Reduced Machining Waste (Chips): Consequently, less material ends up as scrap. This is not only cost-effective but also more environmentally friendly.
• Lighter Starting Stock: Handling and processing lighter, near-net shapes can be more efficient than dealing with heavy solid blocks.
  For projects where material cost is a key factor, extruded aluminum cnc can offer substantial savings.

Enhanced Design Freedom

The two-stage process of extruded aluminum cnc opens up vast design possibilities:

• Complex Cross-Sections: Extrusion allows for intricate and custom-designed profiles that would be very difficult or expensive to machine from scratch. Think of internal channels, T-slots, or interlocking features.
• Precise Feature Placement: CNC machining then allows for the addition of precise features (holes, slots, threads, pockets) exactly where they are needed on these complex profiles.
• Integration of Functions: Designers can incorporate features into the extrusion profile itself that might otherwise require separate components, and then use CNC to refine interfaces or add mounting points.

Optimized Strength and Weight

Aluminum is already known for its excellent strength-to-weight ratio. The extruded aluminum cnc process allows engineers to optimize this further:

• Material Where It’s Needed: Extrusion profiles can be designed to place material strategically, enhancing strength in critical areas while keeping other areas light.
• Alloy Selection: The choice of aluminum alloy (e.g., 6061, 6063) tailored for both good extrudability and desired mechanical properties, which are then preserved or enhanced by controlled CNC machining.
• Efficient Geometries: CNC machining can add features like ribs or pockets that further refine the strength and weight characteristics of the extruded part.

Comparing Production Efficiency and Cost-Effectiveness

For many part designs, especially those with a consistent profile and added features, extruded aluminum cnc can be more efficient:

• Reduced Machining Time: CNC machines focus on adding details rather than removing bulk material, leading to shorter cycle times.
• Tooling Considerations: While an extrusion die is an investment, for medium to high production volumes, its cost can be amortized, making the per-part cost lower than fully machining complex shapes.
• Consistency and Repeatability: Both extrusion and CNC machining are highly controlled processes, leading to consistent quality across production runs.

Here’s a summary of key benefits:

The extruded aluminum cnc process truly provides a powerful combination of advantages for a wide range of applications.

Conclusión

In conclusion, extruded aluminum CNC combines the best of both worlds: efficient shaping with precision detailing. It’s a smart choice for many custom parts.
