Aluminum Extrusion Tube: Your Ultimate Guide to Flawless Project Results?

Are your designs limited by standard, off-the-shelf tubing? This compromise can kill innovation and add unnecessary complexity. I can show you a better, more precise solution.

Based on my direct experience, the secret to flawless results is using a custom aluminum extrusion tube. Its ultimate value comes from the unique ability to combine custom shapes, high strength, and low weight, all controlled by a rigorous manufacturing process that I oversee personally.

This combination of features might sound complicated, but it’s the key to unlocking simpler, lighter, and more cost-effective products. Let’s explore exactly how an aluminum extrusion tube achieves this.

What makes an aluminum extrusion tube so versatile?

Are you stuck trying to make a standard round or square tube fit a complex design? This is a common frustration that leads to extra parts and assembly headaches.

From my perspective, what makes an aluminum extrusion tube so versatile is our ability to create almost any custom profile you need. I’m not just talking about circles. We can design complex internal and external shapes that integrate multiple functions into a single part.

The word “tube” often makes people think of a simple, hollow cylinder. But with aluminum extrusion, a tube is just the starting point. The true versatility comes from the design freedom the extrusion process offers. We can create an aluminum extrusion tube with internal screw ports, channels for wiring, or interlocking features that snap together with other parts. This capability is a game-changer for product designers and purchasing managers looking to innovate and simplify.

Beyond Simple Shapes: Functional Integration

The primary reason an aluminum extrusion tube is so adaptable is its ability to integrate features. Instead of buying a standard tube and then spending more money to machine it, weld brackets onto it, or add fasteners, you can design those features directly into the extrusion profile.

• Internal Ribs: We can add internal ribs to an aluminum extrusion tube to increase its strength and rigidity without significantly adding weight.
• Screw Ports: A common request I get is for a tube with a built-in channel designed to accept self-tapping screws. This eliminates the need for drilling and tapping later.
• Multi-Hollow Profiles: We can create a single aluminum extrusion tube with multiple, separate hollow cavities. This is perfect for applications that need to run fluids and wires separately within the same structural component.

Material and Profile Customization

Versatility also comes from the material itself. We can use different aluminum alloys and tempers to achieve specific properties.

This level of customization means a single aluminum extrusion tube can replace an assembly of three, four, or even more separate parts. For my clients, this leads to simpler inventory, faster assembly, and a more robust final product.

What benefits does an aluminum extrusion tube offer projects?

Are you worried about your product being too heavy or too expensive to ship? Are you concerned about long-term durability, especially in harsh environments? These are valid concerns.

I always tell my clients that the primary benefits of an aluminum extrusion tube are its incredible strength-to-weight ratio, its natural corrosion resistance, and its ability to lower the total project cost. I have seen these benefits transform products across many industries.

The benefits go far beyond just the shape. When you choose to use a custom aluminum extrusion tube, you are choosing a material and a process that solve some of the most common product design challenges. For a purchasing manager, understanding these benefits is key to making a strategic sourcing decision.

Key Project Benefits

• Significant Weight Reduction: Aluminum is about one-third the weight of steel. I worked with a client in the medical equipment field who replaced a steel frame on their mobile device cart with a custom aluminum extrusion tube. They reduced the cart’s total weight by 40%. This made it easier for nurses to handle and cheaper for the company to ship. The high strength-to-weight ratio is a massive advantage.
• Excellent Corrosion Resistance: Aluminum naturally forms a protective, passive oxide layer. This means it won’t rust like steel. This is a huge benefit for products used outdoors, in marine environments, or in clean-room settings where paint flakes are a contamination risk. This feature often eliminates the need for costly and environmentally-sensitive painting processes.
• Lower Total Cost of Ownership: This is a point I often discuss with purchasing managers. While a custom aluminum extrusion tube might have a higher per-foot cost than a standard steel tube, it often leads to a lower total cost. This happens because you eliminate downstream costs associated with assembly labor, secondary machining operations, and finishing. By integrating features, you reduce the number of parts you have to buy, stock, and assemble.

Here is a simple breakdown of how these benefits impact your project’s bottom line:

When you evaluate a component, looking at the complete picture is essential. An aluminum extrusion tube provides value that extends far beyond its initial price.

Which industries use custom aluminum extrusion tube solutions?

Do you think that custom tubing is only for high-tech aerospace applications? Many people are surprised to learn how common this solution is across a wide range of everyday products.

In my experience, almost every major industry uses custom aluminum extrusion tube solutions. I have personally developed parts for automotive, construction, electronics, medical, and consumer goods. Its versatility makes it a go-to solution for engineers trying to solve complex design problems.

The unique combination of light weight, strength, and design freedom has made the aluminum extrusion tube a fundamental building block for modern product design. If you look around, you will start to see it everywhere. This widespread adoption is a testament to its effectiveness as an engineered solution. The ability to create a specific shape for a specific problem is invaluable.

Widespread Industrial Applications

Let’s look at a few examples of how different industries leverage the unique properties of a custom aluminum extrusion tube.

• Automotive and Transportation: In this industry, weight reduction is critical for fuel efficiency. You’ll find a custom aluminum extrusion tube used in everything from car frames and battery enclosures for electric vehicles to roof racks and trim components. The ability to create strong, lightweight structures is key.
• Building and Construction: This is a huge market. Window and door frames, curtain wall systems, handrails, and architectural canopies are often made from a custom aluminum extrusion tube. Its corrosion resistance and ability to be finished in various colors make it perfect for architectural use.
• Electronics and LED Lighting: Heat dissipation is a major challenge for electronics. An aluminum extrusion tube is often designed with integrated fins to act as a heat sink for high-power LEDs or electronic components. It serves as both the structure and the cooling system.
• Medical and Mobility: From wheelchair frames and IV stands to the structural components of complex diagnostic machines, an aluminum extrusion tube is essential. It provides a clean, strong, and lightweight solution that is easy to sterilize and maneuver.

The list goes on to include consumer products like furniture and sporting goods, and industrial machinery where custom frames and pneumatic cylinders are needed. The core reason for this broad adoption is that a custom aluminum extrusion tube is not just a material; it is a design solution.

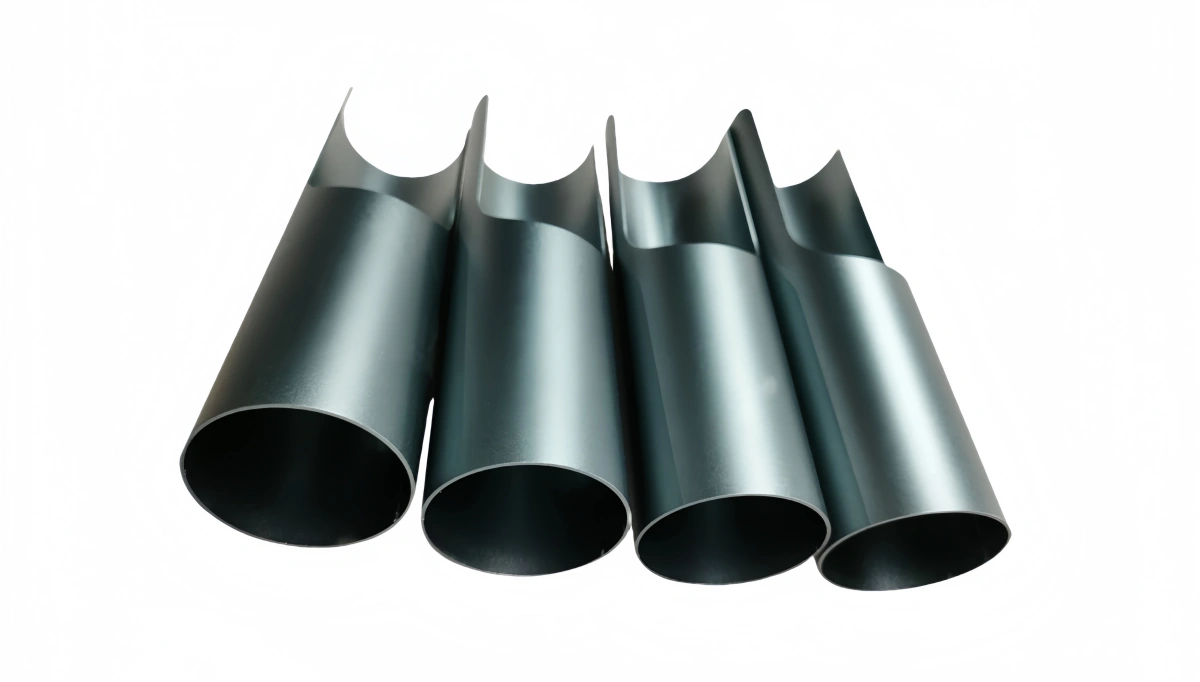

How is an aluminum extrusion tube manufactured for quality?

Are you worried about receiving parts that don’t meet your dimensional tolerances or specifications? This is a common pain point and a valid fear. A bad batch can shut down your production line.

At my company, ALUT, we manufacture every aluminum extrusion tube for quality by implementing strict controls at every single stage. For me, quality isn’t a final inspection; it’s a process that starts with certifying the raw material and ends with meticulous final packaging.

Delivering a high-quality aluminum extrusion tube consistently is not an accident. It is the result of a well-defined and rigorously followed manufacturing and quality control process. As a purchasing manager, understanding this process will help you identify suppliers who are truly committed to quality, not just those who say they are. It addresses the number one pain point I hear from new clients: receiving out-of-spec parts from a previous supplier.

A Step-by-Step Commitment to Quality

Here is how we ensure that every aluminum extrusion tube that leaves our factory meets your exact requirements.

• Step 1: Raw Material and Die Control: It all starts here. We only use high-purity aluminum billets from certified suppliers. We test the alloy composition to ensure it’s correct. At the same time, the extrusion die, which we produce in-house, undergoes a thorough design review (DFM) and inspection to ensure it will produce the profile to the correct tolerances.
• Step 2: Process Parameter Management: During the extrusion process itself, we monitor and control several critical variables in real-time. This includes the billet temperature, the extrusion speed, and the pressure. Maintaining these parameters within a very tight window is essential for a consistent, high-quality aluminum extrusion tube.
• Step 3: Post-Extrusion Inspection and Treatment: Once the profile is extruded, it’s not finished. We carefully stretch the profile to relieve internal stresses and ensure straightness. Then, we perform the first dimensional checks. After cutting to length, the parts go to a heat treatment oven for aging, which brings the aluminum extrusion tube to its final temper and strength (e.g., T5 or T6). We monitor oven temperatures and timing precisely.
• Step 4: Final Quality Assurance: Before packaging, every order undergoes a final, comprehensive inspection. We check dimensional tolerances with calibrated instruments like CMMs and digital calipers. We also inspect the surface finish and verify that any secondary operations like machining or anodizing have been done correctly.

This multi-stage quality gate system ensures that problems are caught and corrected early, not discovered by you when the parts arrive at your facility.

Conclusión

The custom aluminum extrusion tube is a versatile, powerful component. It can improve your product and lower costs. Choosing a partner who masters the quality process is the key to success.
