Ist das robuste C-Kanal-Aluminiumprofil Ihre unverzichtbare Lösung für den Rahmenbau?

Need strong, lightweight framing, but tired of heavy steel or rot-prone wood? Finding the right structural component can be a challenge. I often see c channel aluminum profile types as a top solution.

From my manufacturing perspective at ALUT, a c channel aluminum profile is a versatile extrusion characterized by its distinct ‘C’ shape. We produce these by extruding aluminum alloys like 6061 or 6063, creating components widely used for structural framing, supports, and tracks due to their excellent strength-to-weight ratio.

This specific shape offers unique advantages but also requires understanding its characteristics for proper use. Let’s explore what exactly defines this profile and where it shines.

What is c channel aluminum profile exactly?

Confused by the different channel shapes like U-channel versus C-channel? Getting the right profile matters for proper fit and structural function. Allow me to clarify exactly what a c channel aluminum profile is.

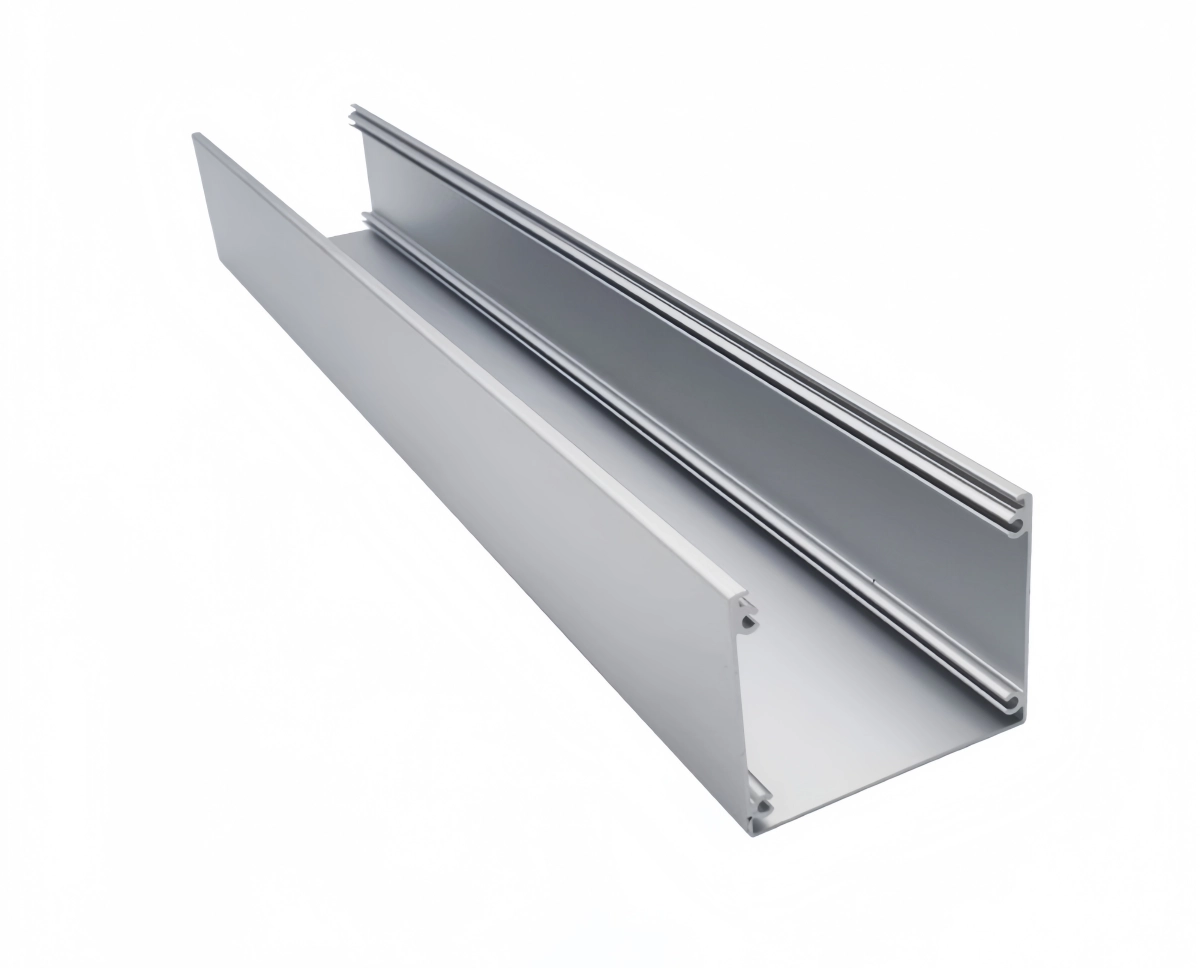

In my role overseeing production at ALUT, I define a c channel aluminum profile by its cross-section: it features a flat back, known as the web, and two perpendicular flanges extending from the same side of the web, creating that characteristic ‘C’ shape. This distinguishes it clearly from a U-channel where flanges point opposite ways.

The term c channel aluminum profile refers to a specific type of linear shape produced, almost always, through the aluminum extrusion process. Its geometry is its defining feature and dictates many of its applications and structural behaviors.

Key Geometric Features

Understanding the parts of the profile helps in specifying and using it correctly:

• Web: The flat, main back plate of the channel. Its width and thickness are critical dimensions.
• Flanges: The two legs extending perpendicularly from the same edge of the web. Their height (or length) and thickness are also key dimensions.
• Corners: The transition between the web and flanges typically has an internal radius for improved strength and easier manufacturing. External corners are often square or slightly rounded.
• Open Side: The defining characteristic is the open side opposite the web, which allows access for fastening or inserting other components.

C-Channel vs. U-Channel vs. Angle

It’s easy to confuse channel types. Here’s a basic comparison:

Table 1: Comparison of Aluminum Profile Shapes

Common Aluminum Alloys Used

While c channel aluminum profile sections can be made from various alloys, the most common are from the 6xxx series due to their balance of properties:

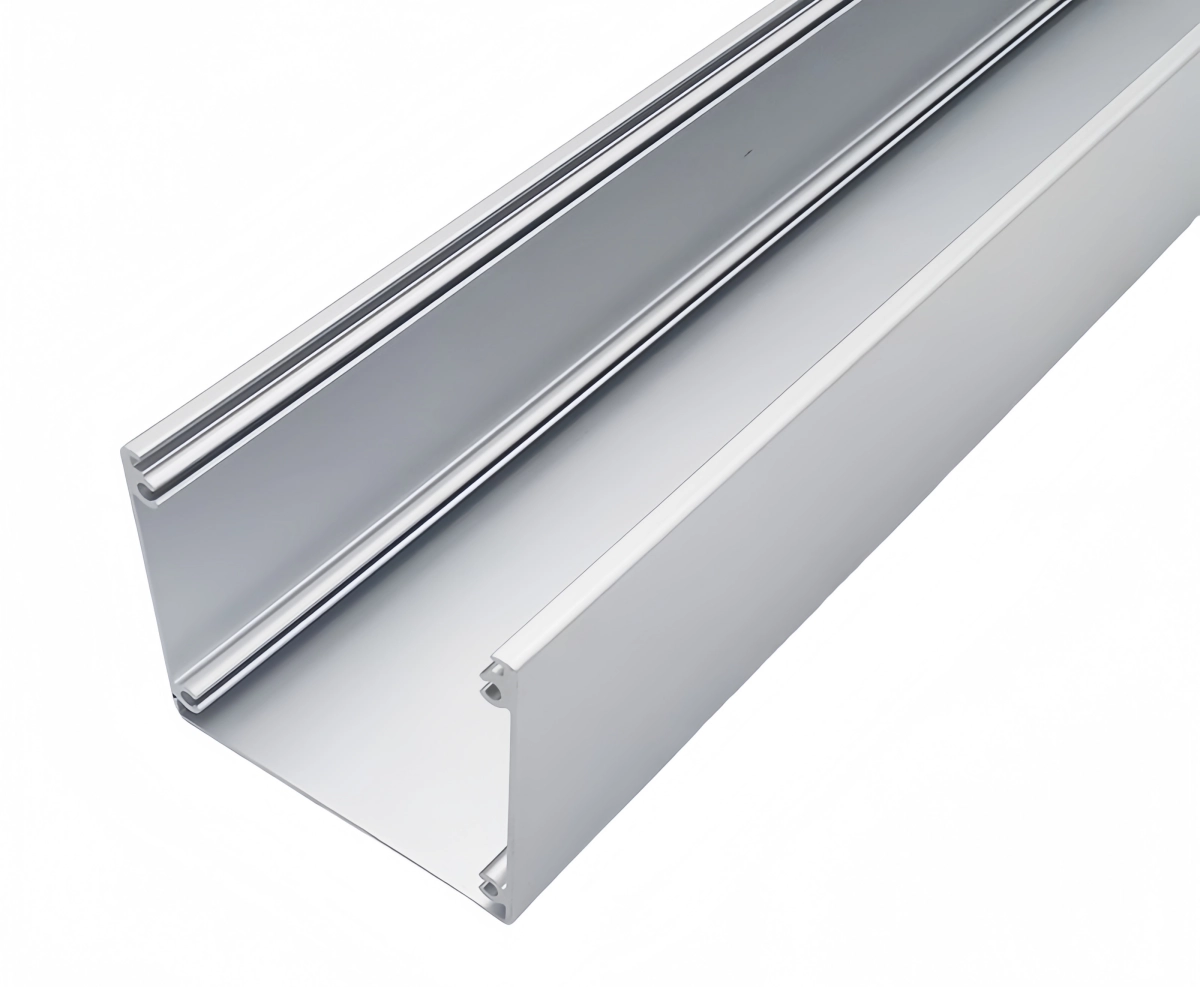

• 6063 Aluminum: Often used for architectural applications or where a good surface finish for anodizing is needed. It offers moderate strength and excellent corrosion resistance.
• 6061 Aluminum: A very popular choice for structural applications requiring higher strength. It offers good strength, corrosion resistance, machinability, and weldability. It’s often supplied in a T6 temper (solution heat-treated and artificially aged) for maximum strength.

The combination of the distinct ‘C’ shape and the beneficial properties of aluminum alloys makes the c channel aluminum profile a versatile component in many industries.

What is c channel aluminum profile used for?

See these C-shaped aluminum pieces used in various structures but unsure of their primary purpose? Their versatility might surprise you. Let’s explore the common applications where c channel aluminum profile sections excel.

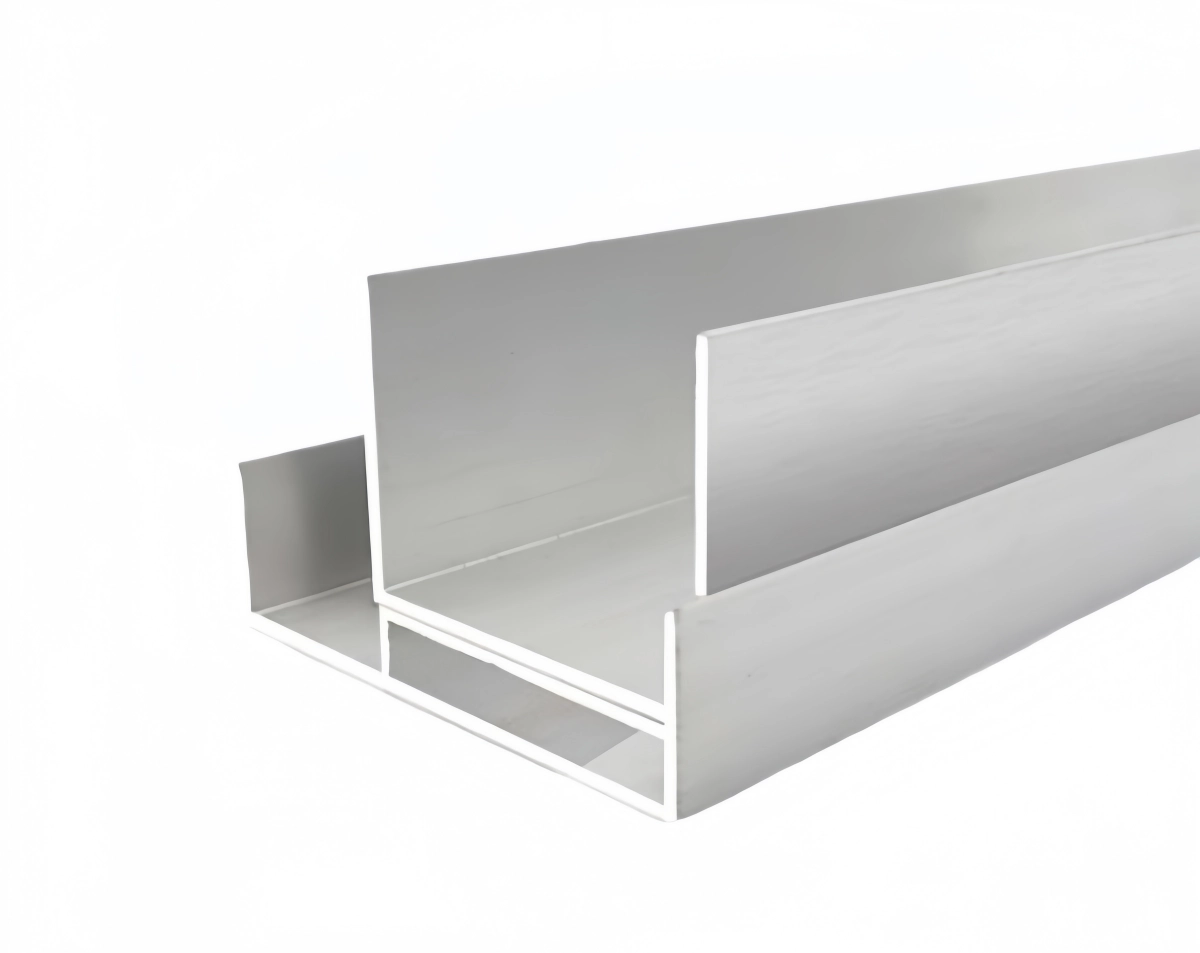

From my experience supplying manufacturers at ALUT, c channel aluminum profile sections are incredibly versatile. I see them most often used for lightweight structural framing, mounting supports and brackets, creating tracks or guide rails, and sometimes as protective or decorative trim elements.

The specific geometry of the c channel aluminum profile lends itself well to applications where moderate structural support is needed, along with easy access for mounting or fastening along the open side. Its versatility stems from combining this shape with aluminum’s inherent advantages.

Structural Framing and Supports

This is perhaps the most common category of use.

• Lightweight Framing: Used extensively to build frames for machinery, equipment enclosures, workbenches, display units, and light-duty building structures like partition walls or suspended ceiling grids. The aluminum construction keeps the overall weight low.

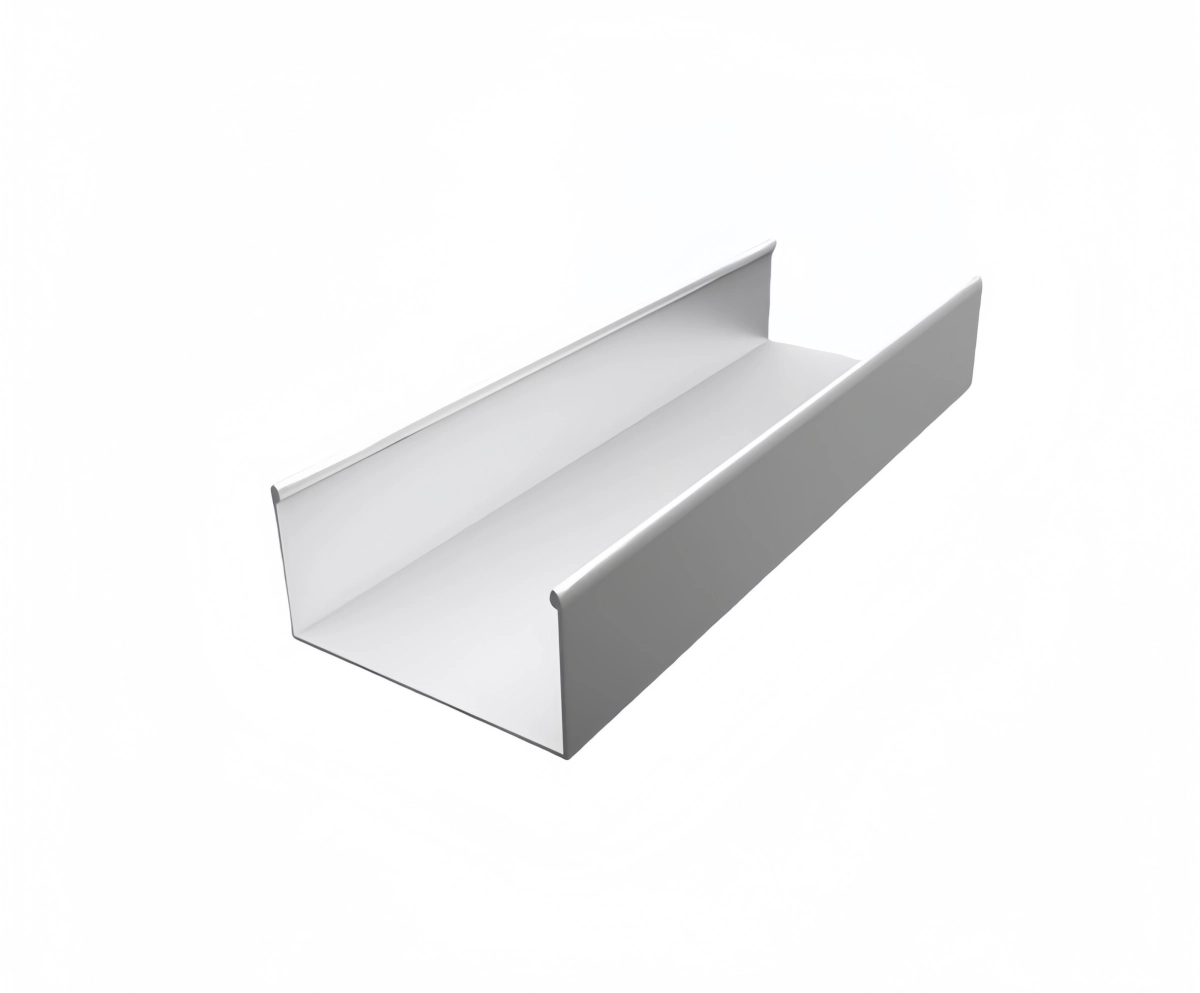

• Solar Panel Racking: Aluminum C-channels are frequently used as rails and support members in ground-mount and roof-mount solar racking systems due to their corrosion resistance and adequate strength for holding panels.
• Fördersysteme: Often form the side frames for conveyor belts, providing support and a track for rollers or guides.
• Support Brackets: Easily cut and drilled to create custom brackets for mounting shelves, components, or equipment to walls or other structures.

Tracks, Guides, and Enclosures

The channel shape is ideal for guiding movement or containing components.

• Sliding Door Tracks: Smaller C-channels can serve as tracks for lightweight sliding doors or panels in cabinets or displays.
• Guide Rails: Used as guides for linear motion elements in automated systems or machinery.
• Cable Management: Can function as trays or raceways (sometimes called cable channel or wire channel) to route and protect electrical wiring, though specialized profiles often exist for this.
• Edge Protection/Trim: Can be used to finish or protect the edges of panels or materials.

Transportanwendungen

• Trailer Frames: Used as cross members or other structural components in lightweight utility trailers or truck bodies where weight savings are important.
• RV and Marine Construction: Utilized for internal framing or fixtures due to aluminum’s corrosion resistance and light weight.

Why Choose Aluminum C-Channels?

The reasons for selecting a c channel aluminum profile for these uses often include:

• High Strength-to-Weight Ratio: Provides good structural support with significantly less weight than steel equivalents.
• Excellent Corrosion Resistance: Aluminum naturally forms a protective oxide layer, making it suitable for outdoor or damp environments (especially alloys like 6061 or 5xxx series).
• Ease of Fabrication: Aluminum is relatively easy to cut, drill, machine, and assemble using standard tools.
• Ästhetik: Offers a clean, modern look, especially with finishes like anodizing.
• Wiederverwertbarkeit: Aluminum is highly recyclable, contributing to sustainability goals.

The wide range of applications highlights the adaptability of the c channel aluminum profile in various engineering and construction scenarios.

How strong is c channel aluminum profile?

Need reliable support but worried aluminum C-channels aren’t strong enough compared to steel? It’s a common concern, but the strength of a c channel aluminum profile depends heavily on specific factors. Let me explain what impacts its load-bearing capability.

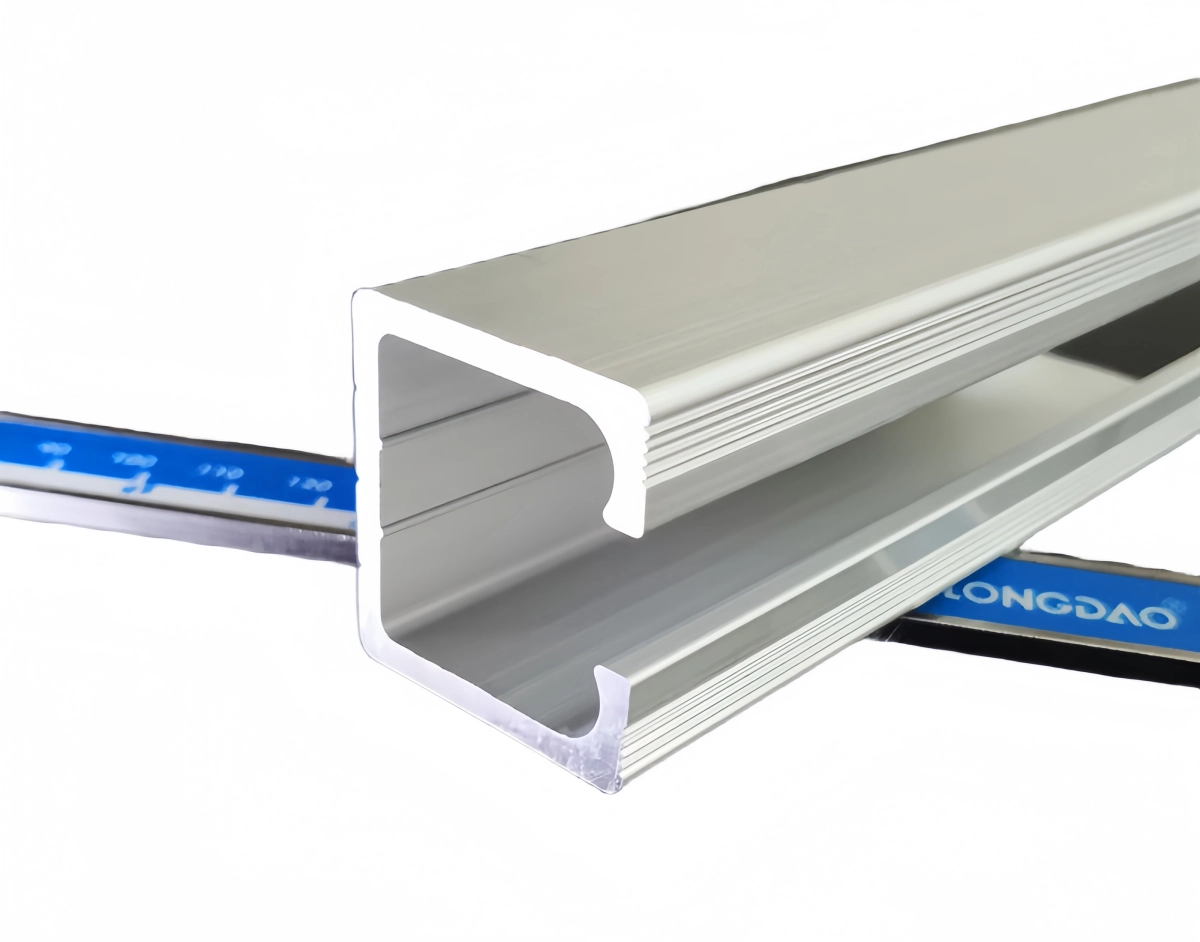

Based on engineering data and the parts we produce at ALUT, the strength of a c channel aluminum profile varies significantly. I know it’s primarily determined by the aluminum alloy used (e.g., 6061 is stronger than 6063), the temper (T6 is much stronger than T4 or T5), and the profile’s dimensions – particularly wall thickness and overall size.

You cannot assume all c channel aluminum profile sections have the same strength. A small, thin-walled channel made from 6063-T5 will behave very differently under load compared to a larger, thicker channel made from 6061-T6. Understanding the contributing factors is key to selecting the right profile for your load requirements.

Influence of Alloy and Temper

• Alloy: The base chemical composition dictates the inherent strength potential.
  • 6063: Commonly used for architectural applications, offers moderate strength. Good for light loads or where finish is paramount.
  • 6061: A workhorse structural alloy offering significantly higher strength than 6063, making it suitable for more demanding load-bearing applications.
  • Other Alloys: Series like 5xxx (good strength, excellent corrosion resistance) or even higher strength 7xxx series might be used for specialized c channel aluminum profile needs, but 6061 and 6063 are most common.
• Temperament: This refers to the heat treatment applied after extrusion, which drastically affects the strength of heat-treatable alloys (like 6061 and 6063).
  • -T4: Solution heat-treated and naturally aged. Moderate strength.
  • -T5: Cooled from extrusion and artificially aged. Stronger than T4, common for 6063.
  • -T6: Solution heat-treated and artificially aged to peak hardness. Offers the highest strength for alloys like 6061. 6061-T6 is the go-to for strong aluminum C-channels.

Impact of Profile Dimensions

• Web and Flange Thickness: Thicker material directly increases the cross-sectional area and resistance to bending and buckling. A thicker web and flanges result in a stronger c channel aluminum profile.
• Overall Size (Height and Width): Larger profiles generally have higher load capacities and greater stiffness (resistance to deflection). The stiffness is related to the profile’s moment of inertia, which increases significantly with depth (height).
• Section Modulus: This geometric property relates directly to a beam’s resistance to bending stress. Larger, well-proportioned C-channels have a higher section modulus.

Understanding Load Bearing Characteristics

• Asymmetry: Because the flanges are on one side, a c channel aluminum profile is asymmetrical. While strong in bending parallel to the web, it is susceptible to twisting (torsion) and lateral-torsional buckling under certain load conditions, especially if the flanges are under compression and not properly braced.
• Load Application: How and where the load is applied (e.g., centered on the web vs. applied to a flange) significantly impacts stress distribution and stability.

Here’s a simplified comparison of typical minimum yield strengths:

Table 2: Simplified Strength Comparison

While steel might seem stronger based purely on yield strength numbers, the excellent strength-to-weight ratio of alloys like 6061-T6 makes aluminum C-channels a very efficient structural choice, provided the correct size, alloy, and temper are selected and potential buckling modes are considered in the design.

What sizes does c channel aluminum profile come in?

Looking for a specific size c channel aluminum profile but unsure what’s standard or readily available? Availability varies, but there are common dimensions and ways these profiles are specified. Let’s cover typical sizing information.

From my experience supplying various projects at ALUT, c channel aluminum profile sections come in a wide range of sizes, from small channels barely an inch deep to large structural sections several inches deep. Sizes are typically defined by height, flange width, and material thickness, and standard lengths like 8, 12, or 20 feet are common, though we also provide custom cuts.

Finding the right size c channel aluminum profile is crucial for ensuring it fits the intended space and meets the required structural performance. While a vast array of sizes can be produced via custom extrusion, standard sizes are more commonly stocked by distributors and offer quicker availability for smaller quantities.

How C-Channel Dimensions are Measured

Understanding the terminology is key when specifying or ordering:

• Height (or Depth): This is the overall dimension measured across the web, from the back of the web to the outer edge of the flanges. It’s typically the largest dimension and significantly impacts bending strength and stiffness.
• Flange Width: This is the length of the flanges, measured from the outside face of the web to the tip of the flange.
• Web Thickness: The thickness of the flat back plate.
• Flange Thickness: The thickness of the flange material. Sometimes this is the same as the web thickness, but it can differ.
• Corner Radius: The radius at the inside corner where the web meets the flange.

Sizes are often expressed in a format like: Height x Flange Width x Web Thickness (e.g., 3″ x 1.5″ x 0.125″). Always verify which dimensions are being referenced by a supplier’s notation.

Examples of Standard Sizes

Standard sizes vary slightly by region and supplier, but here are some representative examples to give you an idea of the range available (dimensions often nominal):

Table 3: Examples of Common C-Channel Sizes
(Note: This is illustrative, not exhaustive. Thicknesses can vary for a given H x W).

Standard Lengths vs. Custom Runs

• Standard Lengths: Distributors commonly stock c channel aluminum profile sections in standard lengths such as 8 ft, 10 ft, 12 ft, 16 ft, 20 ft, or 24 ft (approx. 2.4m to 7.3m). You would typically cut these down to your required size.
• Cut-to-Length: Many suppliers offer services to cut standard lengths down to specific sizes for an additional fee.
• Custom Extrusion Runs: For large volume orders (typically requiring several hundred or thousand pounds/kg), manufacturers like ALUT can produce c channel aluminum profile sections in custom lengths directly from the extrusion press, minimizing waste. We can also create entirely custom dimensions by manufacturing a new extrusion die, which involves tooling costs but provides complete design freedom for specific B2B needs.

Selecting the appropriate size involves balancing the required strength and stiffness for the load and span, the available space for installation, and cost/availability considerations.

Schlussfolgerung

The c channel aluminum profile is a robust, versatile C-shaped extrusion. Its strength varies with alloy, temper, and size. It’s widely used for framing and support, available in many standard sizes.
