Could a Powerful Air Conditioner Heat Sink Be Your AC’s Ultimate Savior?

AC not cooling? Wondering if a hidden part is failing? A faulty air conditioner heat sink could be the culprit, leading to expensive problems. I’ve seen this happen.

Yes, absolutely! From my experience manufacturing custom aluminum parts like these, a high-performing air conditioner heat sink is the ultimate lifesaver for your AC unit. It’s essential for efficient cooling, preventing overheating and extending the unit’s lifespan dramatically.

That small, often overlooked component, the air conditioner heat sink, plays a massive role. It’s more than just a piece of metal; it’s a critical player in your air conditioner’s ability to keep you cool and comfortable. Let’s break down what an air conditioner heat sink is and why it’s so vital for your system’s performance and longevity.

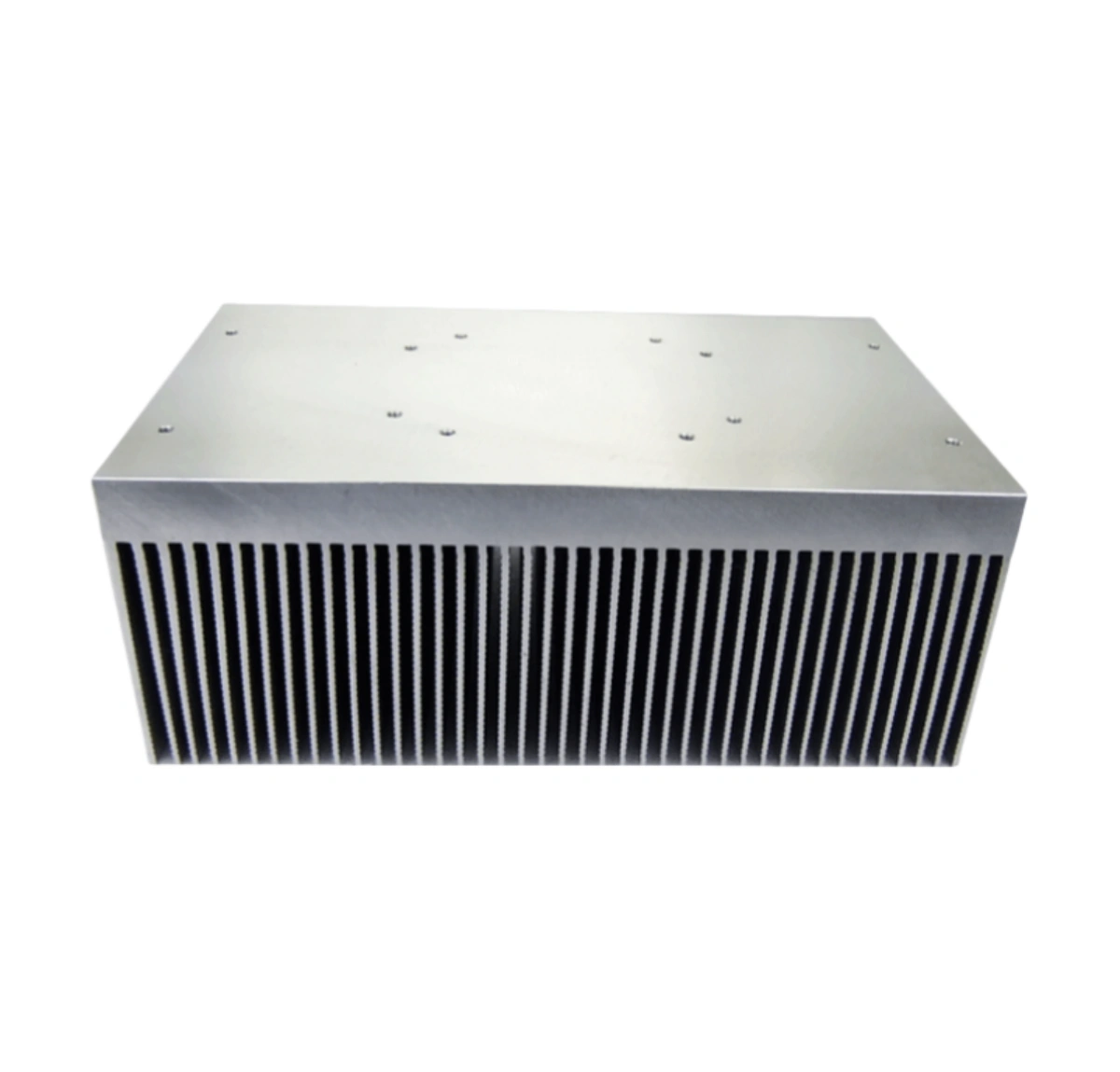

What is an air conditioner heat sink?

Confused about what an AC heat sink actually does? You’re not alone. Many of my clients ask this when we discuss custom thermal solutions for their products.

In our factory, I see these daily. An air conditioner heat sink is a critical component, usually made of metal with fins, designed to absorb and dissipate unwanted heat away from the AC’s vital parts, keeping it running cool.

An air conditioner heat sink is a fundamental part of the cooling system. Think of it as the lungs of your AC unit, breathing out the unwanted heat. In most air conditioners, you’ll find two main components that function as large-scale heat sinks or, more accurately, heat exchangers: the evaporator coil (inside) and the condenser coil (outside). These are specifically designed air conditioner heat sink assemblies.

Their primary job is to facilitate the transfer of thermal energy. The refrigerant flowing through the AC system absorbs heat from your indoor air (at the evaporator coil) and then releases that heat to the outdoor air (at the condenser coil). The efficiency of this heat transfer process heavily relies on the design and condition of these coil assemblies.

Materials Used in Air Conditioner Heat Sinks

The choice of material is critical for an air conditioner heat sink because it directly impacts thermal conductivity and durability. As a manufacturer of custom aluminum products, we at ALUT often work with aluminum for these applications due to its excellent properties.

Aluminum is a popular choice for the fins of an air conditioner heat sink because it’s light and transfers heat well. Copper is often used for the tubes that carry the refrigerant because it’s also great at heat transfer and easy to form. Sometimes, you’ll see copper tubes with aluminum fins – a combination that tries to get the best of both worlds. The overall design, including the spacing of the fins and the diameter of the tubes, is carefully engineered to maximize the surface area for heat exchange. A well-designed air conditioner heat sink is crucial for the unit’s overall performance.

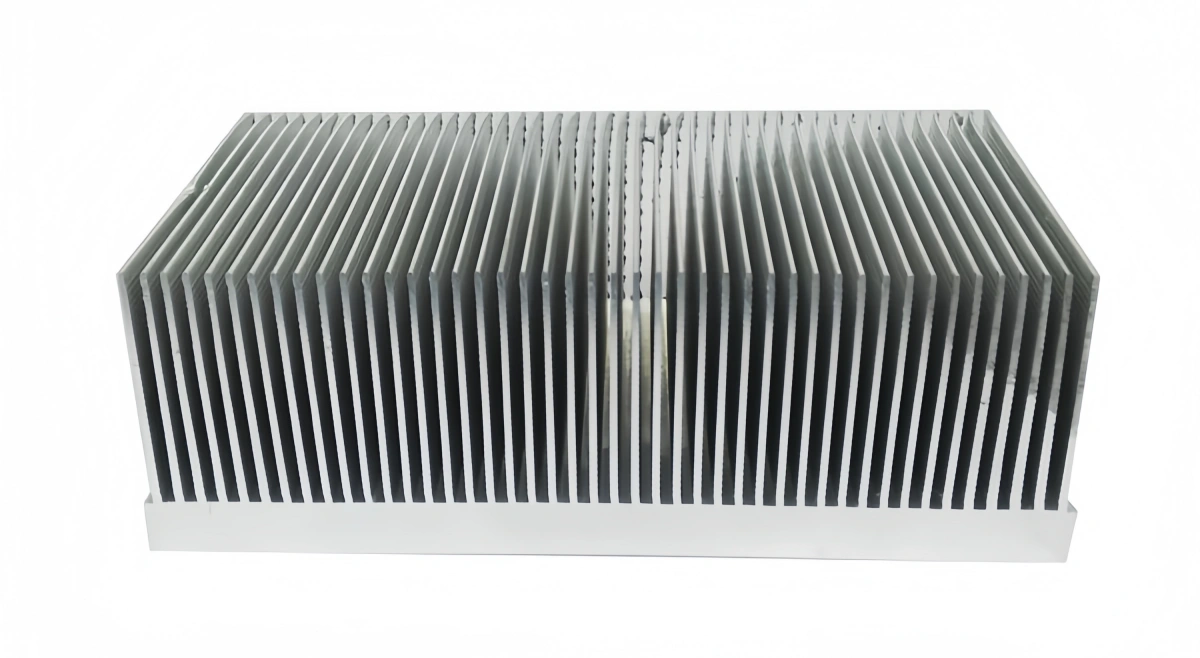

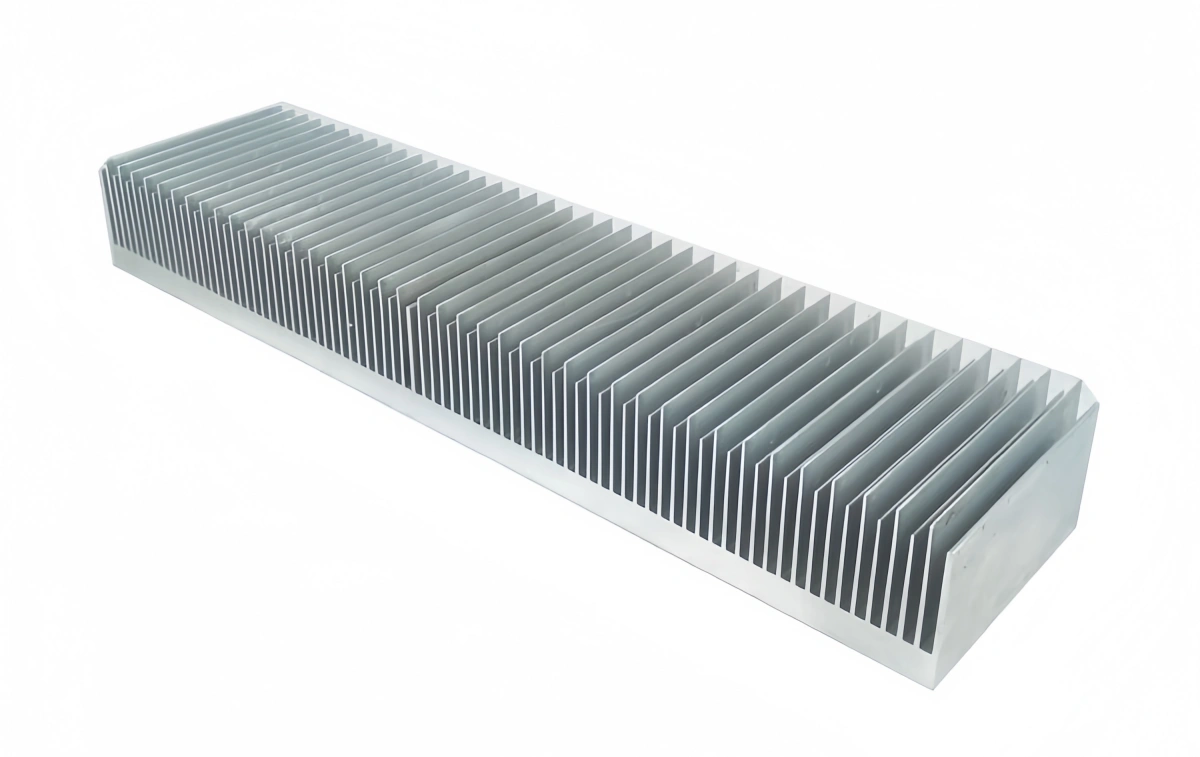

Why is an air conditioner heat sink important?

AC running hot or breaking down often? A failing air conditioner heat sink might be why, leading to frustrating inefficiency and costly repairs. I’ve seen this impact many businesses.

Based on my years in aluminum manufacturing, I can tell you an air conditioner heat sink is incredibly important. It prevents overheating of critical components, ensures the AC runs efficiently, and significantly extends the lifespan of the entire air conditioning unit.

The importance of an air conditioner heat sink (specifically the condenser and evaporator coils) cannot be overstated. It’s central to the entire refrigeration cycle. Without effective heat exchange, the AC unit simply cannot cool your space.

Impact on System Efficiency

An AC’s efficiency, often measured by its SEER (Seasonal Energy Efficiency Ratio), is directly tied to how well its air conditioner heat sink components perform. If the fins are dirty, bent, or the heat sink is undersized, the unit has to work much harder and consume more electricity to achieve the desired cooling. This means higher energy bills. I’ve advised many purchasing managers that investing in quality heat sink components translates to long-term operational savings for their customers. A clean and well-maintained air conditioner heat sink ensures optimal heat transfer, allowing the compressor to operate under less strain.

Preventing Component Failure

The compressor is the heart of your AC system, and it’s also one of the most expensive parts to replace. Overheating is a major enemy of compressors. A properly functioning air conditioner heat sink (condenser coil) ensures that the high-pressure, high-temperature refrigerant from the compressor can effectively release its heat. If this heat isn’t dissipated, the refrigerant temperature and pressure remain too high, putting excessive strain on the compressor. This can lead to premature failure. We design custom heat sinks at ALUT precisely to prevent such issues in various applications.

Ensuring Consistent Cooling Performance

If your AC struggles to cool your space, especially on very hot days, a poorly performing air conditioner heat sink could be the problem. If the evaporator coil can’t absorb enough heat from the indoor air, or the condenser coil can’t release enough heat outdoors, the cooling capacity of the unit diminishes. This leads to uncomfortable indoor temperatures and a system that runs constantly without achieving the set point.

A well-maintained and properly designed air conditioner heat sink is not just a component; it’s a cornerstone of reliable and efficient air conditioning.

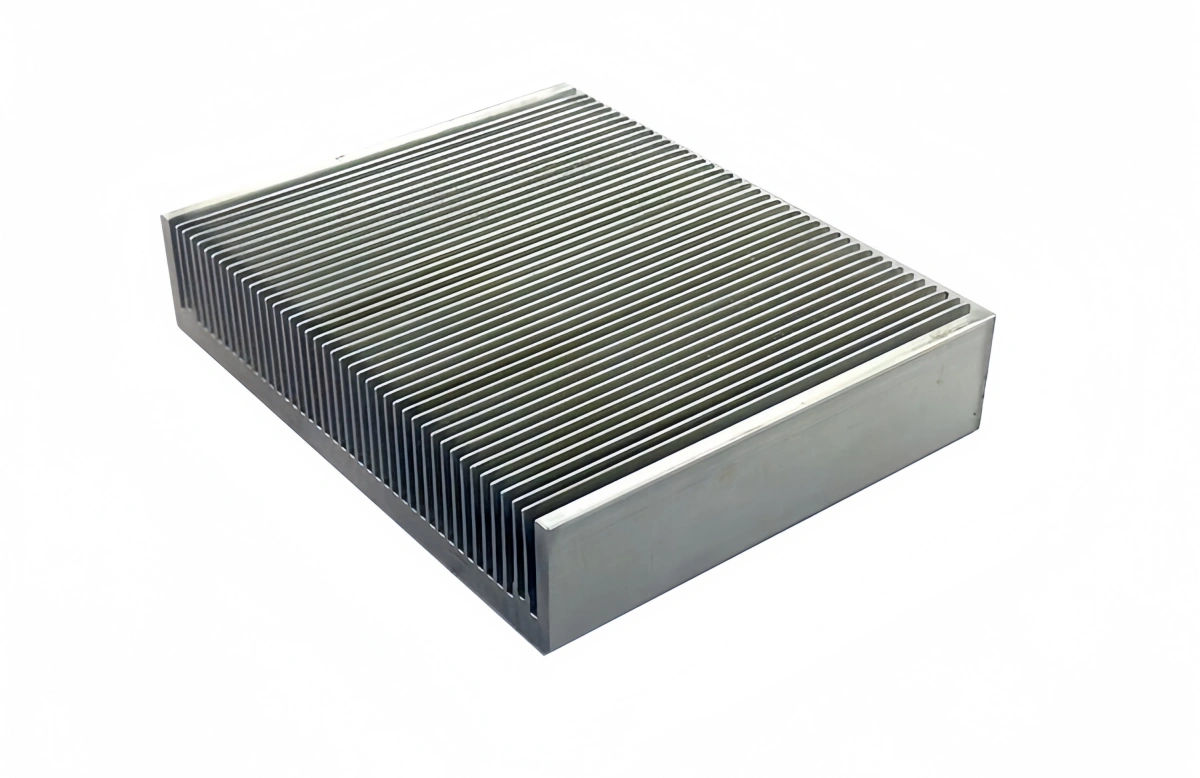

What functions does an air conditioner heat sink perform?

Does an air conditioner heat sink just cool things down, or is there more to its role? It’s a common query I get from engineers designing new thermal management systems.

From my manufacturing perspective, an air conditioner heat sink performs several vital functions. Primarily, it absorbs and transfers heat, but it also facilitates the refrigerant’s phase change and influences overall system efficiency and reliability.

The term “air conditioner heat sink” most directly applies to the large finned coils: the evaporator coil and the condenser coil. These perform several distinct but interconnected functions crucial to the air conditioning process.

Heat Absorption (Evaporator Coil)

The evaporator coil, located inside your home or building, functions as an air conditioner heat sink by absorbing heat from the indoor air.

1. Refrigerant State: Cold, low-pressure liquid refrigerant enters the evaporator.
2. Airflow: The indoor unit’s fan blows warm indoor air across the evaporator coil’s fins.
3. Heat Transfer: The refrigerant inside the coil is much colder than the indoor air. Heat naturally moves from the warmer air to the colder refrigerant.
4. Phase Change: As the refrigerant absorbs heat, it boils and changes from a liquid to a low-pressure gas. This phase change absorbs a significant amount of latent heat, which is key to efficient cooling.
   The design of this air conditioner heat sink (the evaporator) maximizes contact between the air and the cold surfaces to ensure effective heat absorption.

Heat Rejection (Condenser Coil)

The condenser coil, located in the outdoor unit, functions as an air conditioner heat sink by rejecting the absorbed heat (plus heat generated by the compressor) to the outside environment.

1. Refrigerant State: Hot, high-pressure gas refrigerant from the compressor enters the condenser.
2. Airflow: The outdoor unit’s fan blows ambient outdoor air across the condenser coil’s fins.
3. Heat Transfer: The refrigerant inside the coil is much hotter than the outdoor air. Heat naturally moves from the hotter refrigerant to the cooler outdoor air.
4. Phase Change: As the refrigerant releases heat, it condenses from a gas back into a high-pressure liquid. This phase change releases a significant amount of latent heat.
   The efficiency of this air conditioner heat sink (the condenser) is vital for the entire system. If it can’t reject heat effectively, the system pressure and temperature rise, reducing efficiency and stressing components.

Facilitating Refrigerant State Changes

As mentioned above, a key function of these air conditioner heat sink components is to provide the necessary conditions for the refrigerant to change its state (evaporation and condensation). These phase changes are where the bulk of the heat energy transfer occurs in the refrigeration cycle. The large surface area provided by the fins of the air conditioner heat sink is essential for this.

Understanding these functions helps appreciate why the design, material, and maintenance of an air conditioner heat sink are so critical for any cooling application. At ALUT, we often customize heat sink designs to optimize these functions for specific OEM requirements.

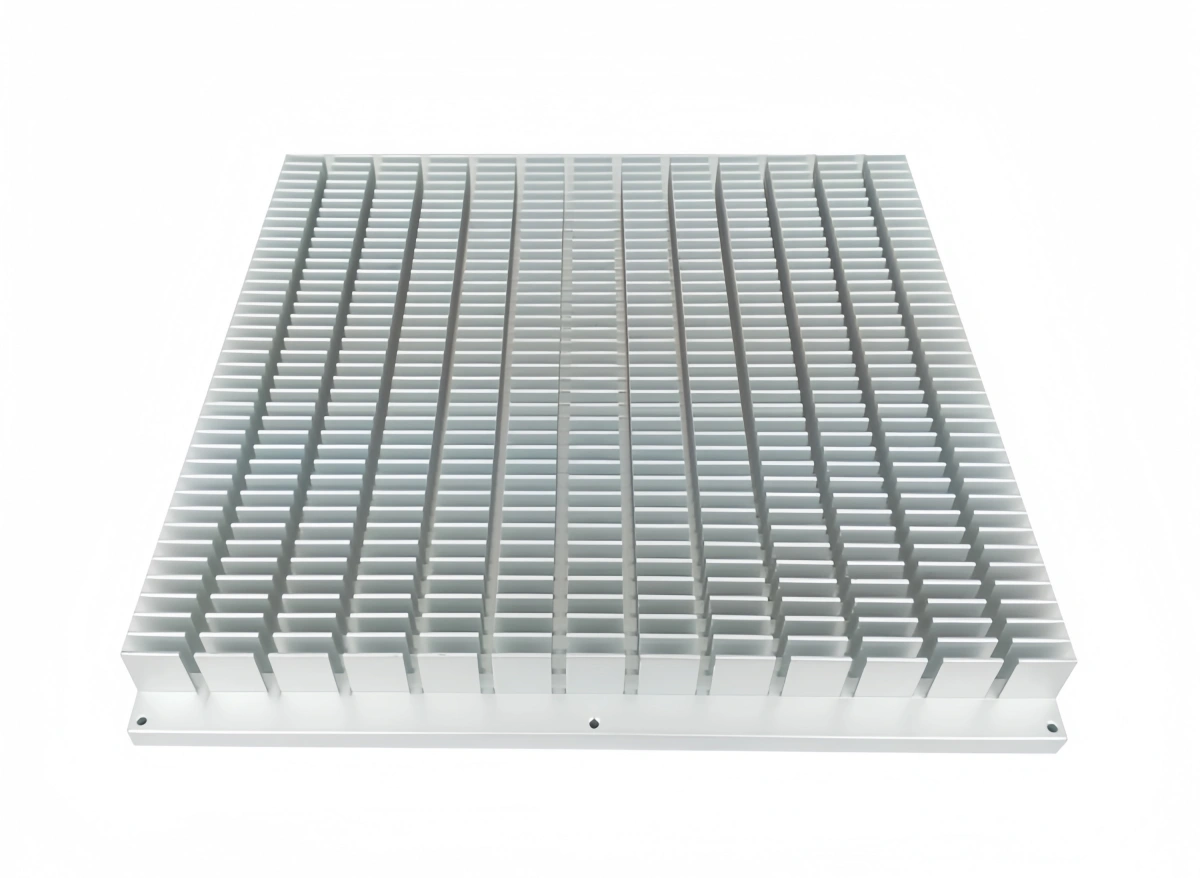

How does an air conditioner heat sink dissipate heat?

Ever wondered about the science behind how an air conditioner heat sink gets rid of all that heat? It’s a fascinating process I often discuss with clients needing custom thermal solutions.

In our custom aluminum production, we focus on maximizing this. An air conditioner heat sink, specifically the condenser coil, dissipates heat mainly through conduction from the hot refrigerant to its fins, then convection to the surrounding air, significantly aided by a fan.

The process by which an air conditioner heat sink (primarily referring to the condenser coil in this context, but the principles also apply to the evaporator absorbing heat) dissipates heat involves a few key thermal transfer mechanisms. These mechanisms work together to move heat from the hot refrigerant inside the coils to the cooler ambient air outside.

1. Conduction

• What it is: Conduction is the transfer of heat through a material or between materials in direct contact.
• How it works in an AC heat sink:
  • Hot refrigerant gas flows through the tubes of the condenser coil.
  • Heat conducts from the hot refrigerant, through the tube walls (usually copper or aluminum), and into the fins (usually aluminum) that are bonded to the tubes.
  • The material’s thermal conductivity is key here. Copper and aluminum are chosen for an air conditioner heat sink because they are excellent conductors of heat. This means heat spreads quickly and efficiently from the tubes throughout the entire fin structure. We ensure good bonding between tubes and fins in our manufacturing processes to maximize this conductive pathway.

2. Convection

• What it is: Convection is the transfer of heat by the movement of a fluid (like air or water).
• How it works in an AC heat sink:
  • Once the fins of the air conditioner heat sink are hot, the heat needs to be transferred to the surrounding air.
  • A large fan in the outdoor unit pulls or pushes ambient air across the heated fins.
  • As the cooler air passes over the hot fin surfaces, it picks up heat, becomes warmer, and is then expelled away from the unit.
  • This is called “forced convection” because a fan actively moves the air. The greater the airflow and the larger the surface area of the fins, the more effective the convective heat transfer.
  • The design of the fins (e.g., louvered, wavy) can create turbulence in the airflow, which further enhances heat transfer by disrupting the boundary layer of air clinging to the fin surface.

3. Radiation (Minor Role)

• What it is: Radiation is the transfer of heat through electromagnetic waves. All objects with a temperature above absolute zero radiate heat.
• How it works in an AC heat sink:
  • The hot surfaces of the air conditioner heat sink will radiate some heat directly to cooler surrounding objects or the sky.
  • However, in most air conditioner designs, convection is the dominant mode of heat dissipation from the air conditioner heat sink, especially with forced airflow from a fan. Radiation plays a smaller, but still present, role.

The effectiveness of an air conditioner heat sink in dissipating heat depends on several factors:

• Material: High thermal conductivity (aluminum, copper).
• Surface Area: More fins, and larger fins, mean more surface area for convection.
• Airflow: Sufficient airflow provided by a properly sized and functioning fan.
• Cleanliness: Dirt and debris on fins act as insulators, hindering both conduction and convection. This is why regular cleaning of an air conditioner heat sink is so important.
• Temperature Difference (Delta T): The greater the temperature difference between the hot refrigerant and the cooler ambient air, the faster the heat transfer.

As manufacturers of custom aluminum components, we at ALUT pay close attention to these principles when designing and producing parts that will be used as, or in, air conditioner heat sink assemblies.

Schlussfolgerung

An air conditioner heat sink is vital. It ensures your AC cools effectively, saves energy, and lasts longer. Proper care and quality design are absolutely key for performance.
