Harnessing the Mighty Power of a Large Aluminum Heat Sink?

Are standard heat sinks failing to cool your high-power devices? Undersized cooling leads to critical failures. I’ve seen how a large aluminum heat sink can be the ultimate thermal solution.

From my experience at ALUT designing and manufacturing robust thermal systems, a large aluminum heat sink is distinguished by its substantial size and surface area. We use these to effectively dissipate significant heat loads from high-power electronics, industrial equipment, and demanding applications where smaller solutions are inadequate.

But “large” isn’t just about physical dimensions; it’s about thermal capacity and design intent. Let’s explore when these substantial coolers are necessary and how they deliver superior performance.

When is a large aluminum heat sink necessary?

Wondering if a standard-sized heat sink is enough, or if you need to scale up? Choosing an undersized solution can lead to overheating and device failure. I can help you identify the tell-tale signs.

Based on numerous projects at ALUT requiring robust cooling, a large aluminum heat sink becomes necessary when dealing with high heat loads from powerful components, when passive cooling is preferred over active solutions like fans, or when ambient temperatures are high, demanding greater surface area for effective heat dissipation.

Not every application requires a massive heat sink. Standard-sized heat sinks are often sufficient for many consumer electronics or low-power devices. However, there are specific scenarios where a large aluminum heat sink isn’t just beneficial, but absolutely essential for reliable operation and longevity. Recognizing these situations is key to proper thermal management design.

Key Indicators for Needing a Large Aluminum Heat Sink:

1. High Heat Dissipation Requirements (High TDP):
   • Components with a high Thermal Design Power (TDP) rating, such as powerful CPUs, GPUs, high-power LEDs, power amplifiers, industrial motor drives, and power supply modules, generate significant amounts of waste heat (often >100 Watts, sometimes much more).
   • A small heat sink simply doesn’t have enough surface area or thermal mass to effectively dissipate such large heat loads, leading to the component exceeding its maximum operating temperature. A large aluminum heat sink provides the necessary capacity.
2. Preference for Passive Cooling (No Fans):
   • In applications where noise is a concern (e.g., audio equipment, medical devices, some office environments) or where reliability is paramount (fans have moving parts and can fail), passive cooling is preferred.
   • To achieve effective passive cooling for components that still generate considerable heat, a much larger heat sink surface area is required to maximize natural convection and radiation. This often necessitates a large aluminum heat sink.
3. High Ambient Operating Temperatures:
   • If the device operates in an environment with elevated ambient temperatures, the temperature difference (ΔT) between the heat sink and the surrounding air is reduced. This makes heat transfer less efficient.
   • To compensate, a larger surface area is needed to dissipate the same amount of heat. A large aluminum heat sink provides this increased area.
4. Space Constraints Limiting Airflow:
   • In tightly packed enclosures or sealed units where airflow is restricted, natural convection is limited. A large aluminum heat sink with widely spaced fins can still be effective by maximizing radiative cooling and conductive spreading, even with minimal airflow.
5. Critical Component Reliability and Lifespan:
   • Operating electronic components at lower temperatures significantly enhances their reliability and extends their operational lifespan.
   • For critical applications where failure is not an option, engineers often over-specify the cooling solution, opting for a large aluminum heat sink to ensure components stay well within their safe operating temperature limits, providing a greater thermal margin.
6. Consolidating Cooling for Multiple Components:
   • Sometimes, a single, well-designed large aluminum heat sink can be used to cool multiple heat-generating components on a PCB or within an enclosure, simplifying the overall thermal design compared to using many smaller, individual heat sinks.

Essentially, the need for a large aluminum heat sink arises when the thermal challenge exceeds the capabilities of smaller, standard solutions due to high heat loads, reliance on passive cooling, or challenging environmental conditions.

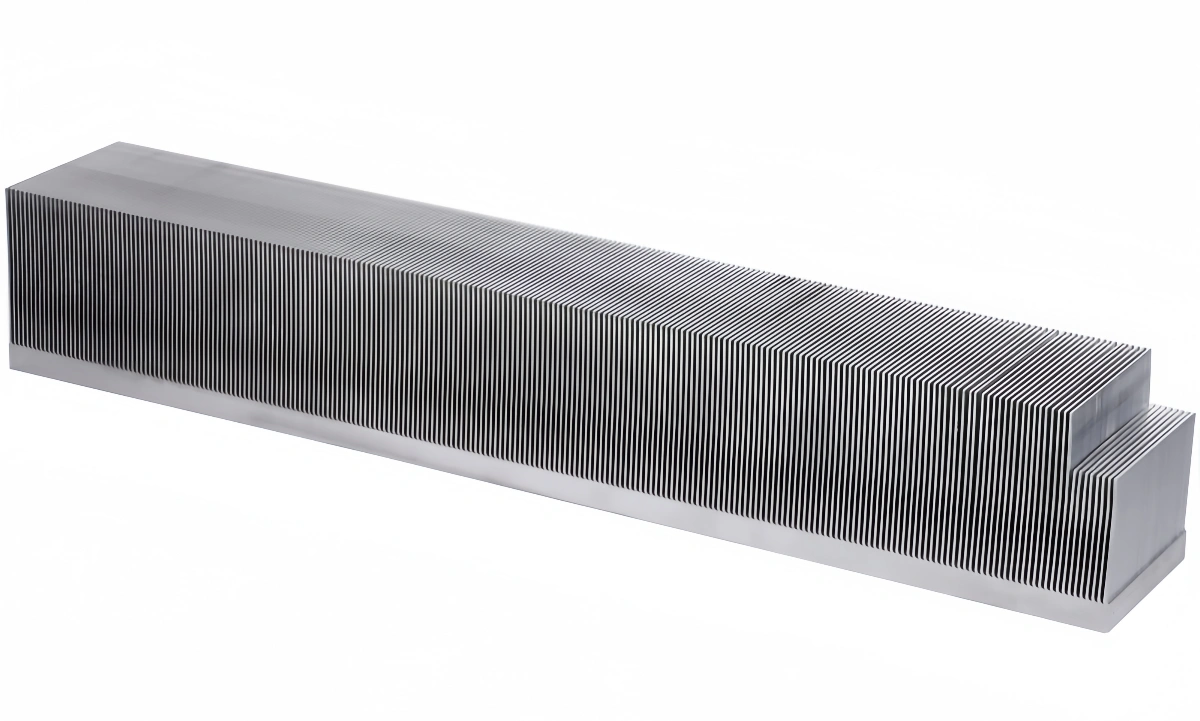

How is a large aluminum heat sink manufactured?

Curious about how these substantial cooling devices are made? Creating a large aluminum heat sink involves more than just scaling up smaller designs. I’ve overseen the production of many, and specific techniques are key.

From our factory operations at ALUT, manufacturing a large aluminum heat sink typically involves processes like extrusion for creating long, finned profiles that are then cut to size, or sometimes die casting or forging for more complex 3D shapes. For very large or high-performance units, assembly of multiple parts (e.g., bonded fin or skived fin technology) is also common.

The manufacturing method for a large aluminum heat sink depends on its specific design, required thermal performance, production volume, and cost targets. While the principles of creating surface area for heat dissipation remain the same, the scale presents unique challenges and opportunities. Here are the common manufacturing approaches:

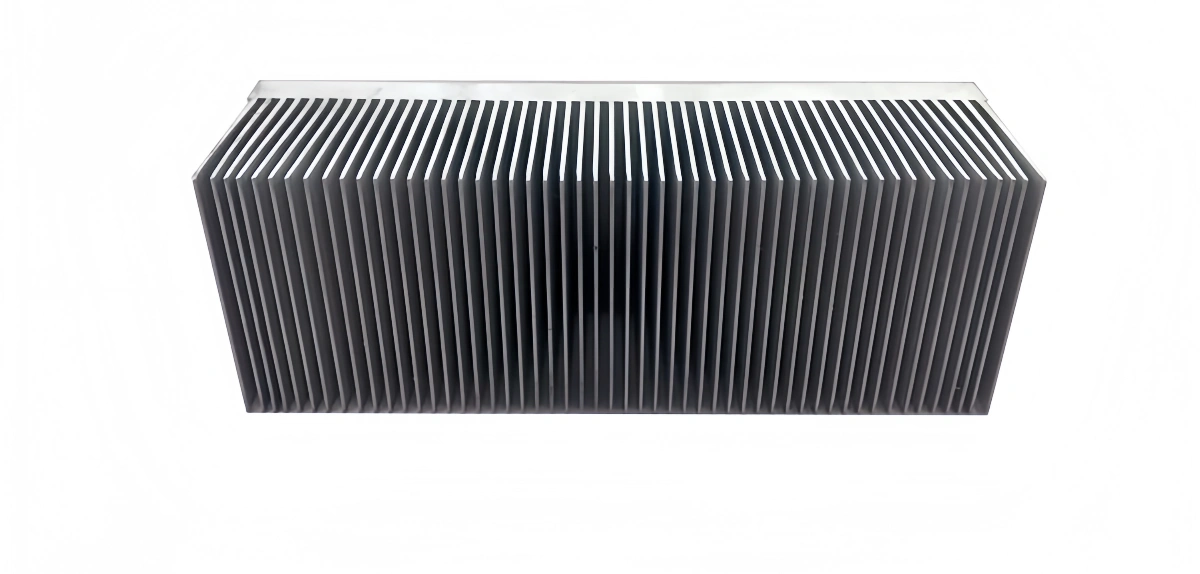

1. Extrusion

• Prozess: This is a very common method for producing large aluminum heat sink profiles, especially those with a consistent cross-section along their length. A heated aluminum billet is forced through a die with the desired finned shape. The long extrusion is then cut to the required length.
• Advantages: Cost-effective for high volumes, allows for complex fin geometries and good fin density, good material utilization.
• Limitations for Large Sizes: The maximum size of an extruded profile is limited by the capacity of the extrusion press (e.g., “circle size” – the diameter of a circle that can circumscribe the profile). For extremely wide or long heat sinks, multiple extrusions might need to be joined.
• Erwägungen: Ensuring uniform cooling of large extrusions to prevent warping can be challenging.

2. Die Casting

• Prozess: Molten aluminum is injected under high pressure into a steel mold (die) shaped like the heat sink.
• Advantages: Allows for very complex 3D shapes, net-shape or near-net-shape manufacturing (reducing machining), good for high volumes. Can integrate mounting features directly.
• Beschränkungen: Thermal conductivity of cast aluminum alloys is generally lower than wrought/extruded alloys (due to porosity and alloy composition). Tooling costs are high, making it suitable mainly for large production runs. Achieving very thin or high-aspect-ratio fins can be difficult.

3. Forging

• Prozess: A heated aluminum billet is pressed or hammered into a die.
• Advantages: Produces parts with excellent strength and grain structure. Can create complex shapes.
• Beschränkungen: Higher cost than extrusion or casting for many heat sink designs. Achieving very fine fin details can be challenging.

4. Bonded Fin Technology

• Prozess: Individual fins (often stamped or extruded) are bonded (e.g., using thermal epoxy or brazing) into grooves machined into a base plate.
• Advantages: Allows for very high fin densities and aspect ratios, which is excellent for thermal performance. The base and fins can potentially be made from different materials (e.g., copper base for spreading, aluminum fins for weight/cost). Enables creation of a very large aluminum heat sink by assembling many fins.
• Beschränkungen: More complex assembly process, potentially higher cost than monolithic solutions. The thermal resistance of the bond joint must be minimized.

5. Skived Fin Technology

• Prozess: Thin fins are “skived” or peeled up from a solid block of aluminum using a special cutting tool. The fins remain integral to the base.
• Advantages: Excellent thermal contact between fin and base (no interface resistance), allows for very thin and densely packed fins. Good for creating a custom large aluminum heat sink from a solid block.
• Beschränkungen: The Material removal process can be more expensive for very large sizes.

6. Machining from Solid Block

• Prozess: A large aluminum heat sink is CNC machined from a solid billet of aluminum.
• Advantages: Maximum design flexibility, ideal for prototypes or low volumes, can achieve very precise features.
• Beschränkungen: High material waste, long machining times, and generally the most expensive method for high volumes.

Assembly of Multiple Sections

For exceptionally large aluminum heat sink requirements, it’s common to manufacture smaller sections using one or more of the above methods and then assemble them (e.g., by welding, brazing, or mechanical fastening) to create the final large structure.

The choice of manufacturing method involves balancing thermal performance needs, design complexity, material properties, production volume, and target cost for the large aluminum heat sink.

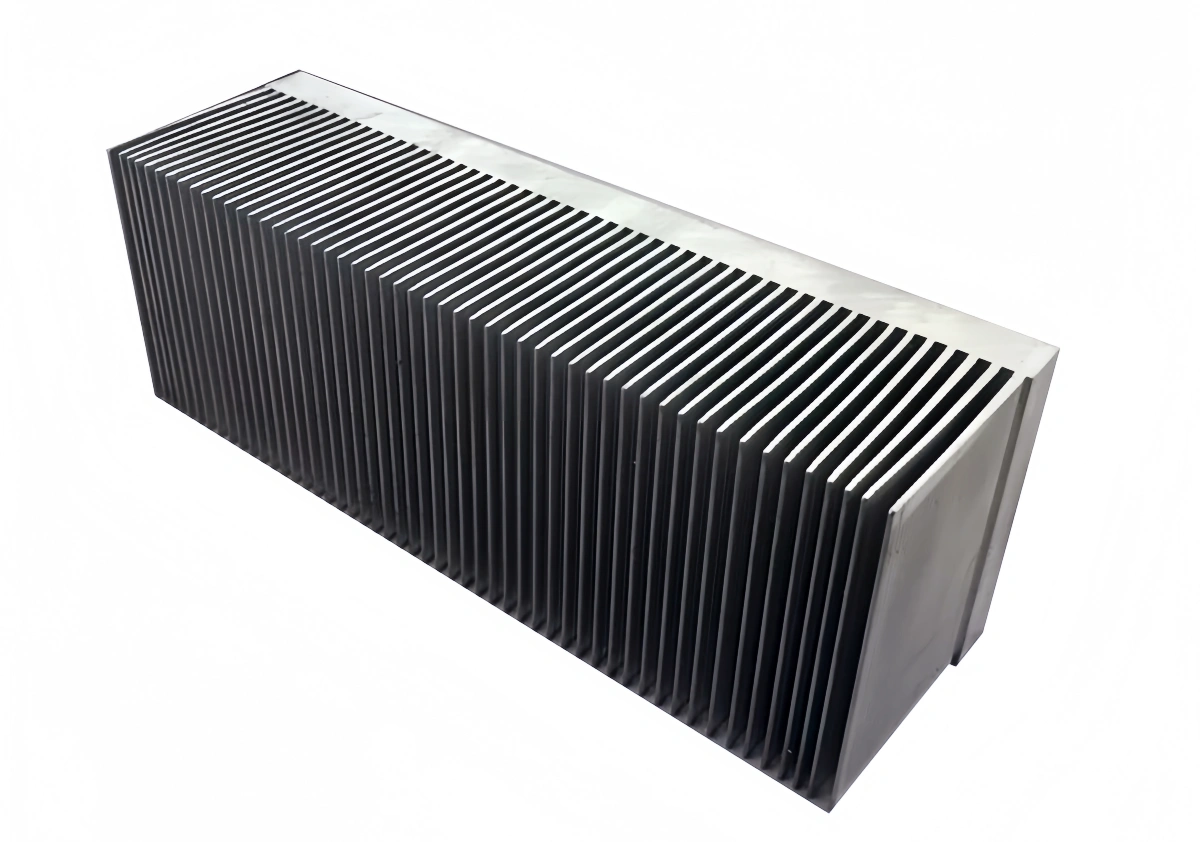

How effective is a large aluminum heat sink?

Wondering if simply making a heat sink bigger guarantees better cooling? While size matters, the actual effectiveness of a large aluminum heat sink depends on more than just its bulk. I’ve seen designs where “bigger” wasn’t necessarily “better” without smart engineering.

Based on thermal performance analysis we conduct at ALUT, a large aluminum heat sink is generally very effective at dissipating substantial heat loads, primarily due to its increased surface area for convection and radiation, and greater thermal mass. However, its true effectiveness is also heavily influenced by fin design, airflow conditions, and proper mounting.

A large aluminum heat sink inherently offers greater potential for heat dissipation compared to a smaller one, but its effectiveness isn’t solely determined by its overall dimensions. Several factors contribute to how well it performs its cooling task:

Factors Determining Effectiveness:

1. Surface Area:
   • Primary Driver: The most significant advantage of a large aluminum heat sink is its vastly increased surface area. Heat dissipation to the surrounding air occurs primarily through convection from the surfaces of the base and, more importantly, the fins. More surface area means more contact with the air, allowing more heat to be transferred.
   • Fin Design: The design of the fins (height, thickness, spacing, shape) is crucial for maximizing effective surface area. Simply adding more fins isn’t always better if they are too closely packed, as this can impede airflow between them (increasing pressure drop and reducing convective efficiency).
2. Thermal Conductivity of Aluminum:
   • Even in a large aluminum heat sink, the ability of the aluminum alloy (typically 6063 or 6061) to conduct heat efficiently from the heat source to the extremities of the fins is vital. Good conductivity ensures that the entire surface area participates effectively in heat dissipation.
3. Airflow (Convection Type):
   • Natural Convection: In passive cooling scenarios (no fans), a large aluminum heat sink relies on natural convection currents. Larger, widely spaced fins are often more effective here to allow buoyant hot air to rise and be replaced by cooler air. The orientation of the heat sink also matters.
   • Forced Convection: If fans are used (active cooling), the effectiveness of a large aluminum heat sink can be dramatically increased. The fin design should then be optimized for the available airflow (e.g., denser fins might be acceptable if the airflow is strong). Airflow bypassing the fins reduces effectiveness.
4. Thermal Interface Material (TIM):
   • The material used between the heat source (e.g., CPU) and the base of the large aluminum heat sink is critical. A good TIM (thermal grease, pad) minimizes the thermal resistance at this interface, ensuring efficient heat transfer into the heat sink. Even the best heat sink will perform poorly if this interface is bad.
5. Mounting Pressure and Flatness:
   • Sufficient and even mounting pressure ensures good contact between the heat source and the heat sink base, minimizing contact resistance. The flatness of the heat sink base is also important.
6. Radiative Heat Transfer:
   • A large aluminum heat sink also dissipates heat through radiation. The emissivity of the heat sink surface affects this. Darker, anodized surfaces typically have higher emissivity than bare, shiny aluminum, improving radiative cooling, especially in natural convection or vacuum environments.

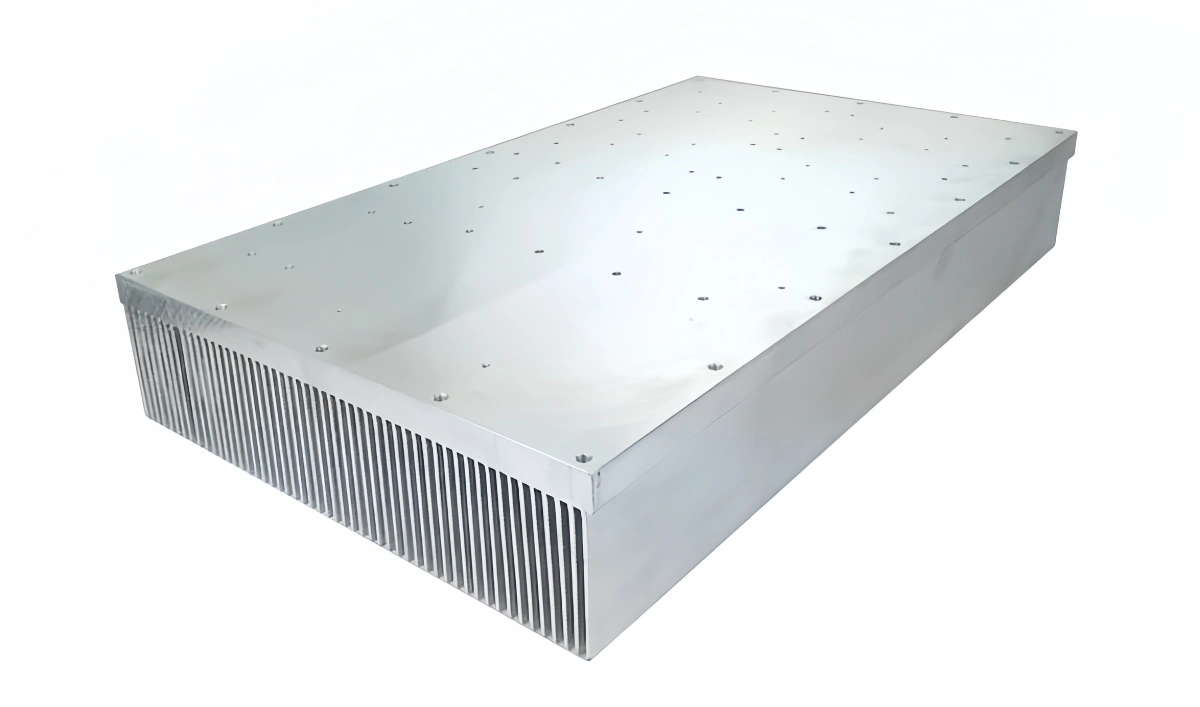

Measuring Effectiveness:

The effectiveness of any heat sink, including a large aluminum heat sink, is typically quantified by its thermal resistance (R_th), measured in °C/W (degrees Celsius per Watt).

• A lower thermal resistance value indicates a more effective heat sink. It means that for every Watt of heat dissipated, the temperature rise of the heat source above ambient will be lower.
• A large aluminum heat sink, properly designed, will generally have a significantly lower thermal resistance than a smaller one designed for the same airflow conditions.

While a large aluminum heat sink provides the potential for excellent cooling, its actual effectiveness is a result of careful design considering all these factors to optimize heat transfer from the source to the ambient environment.

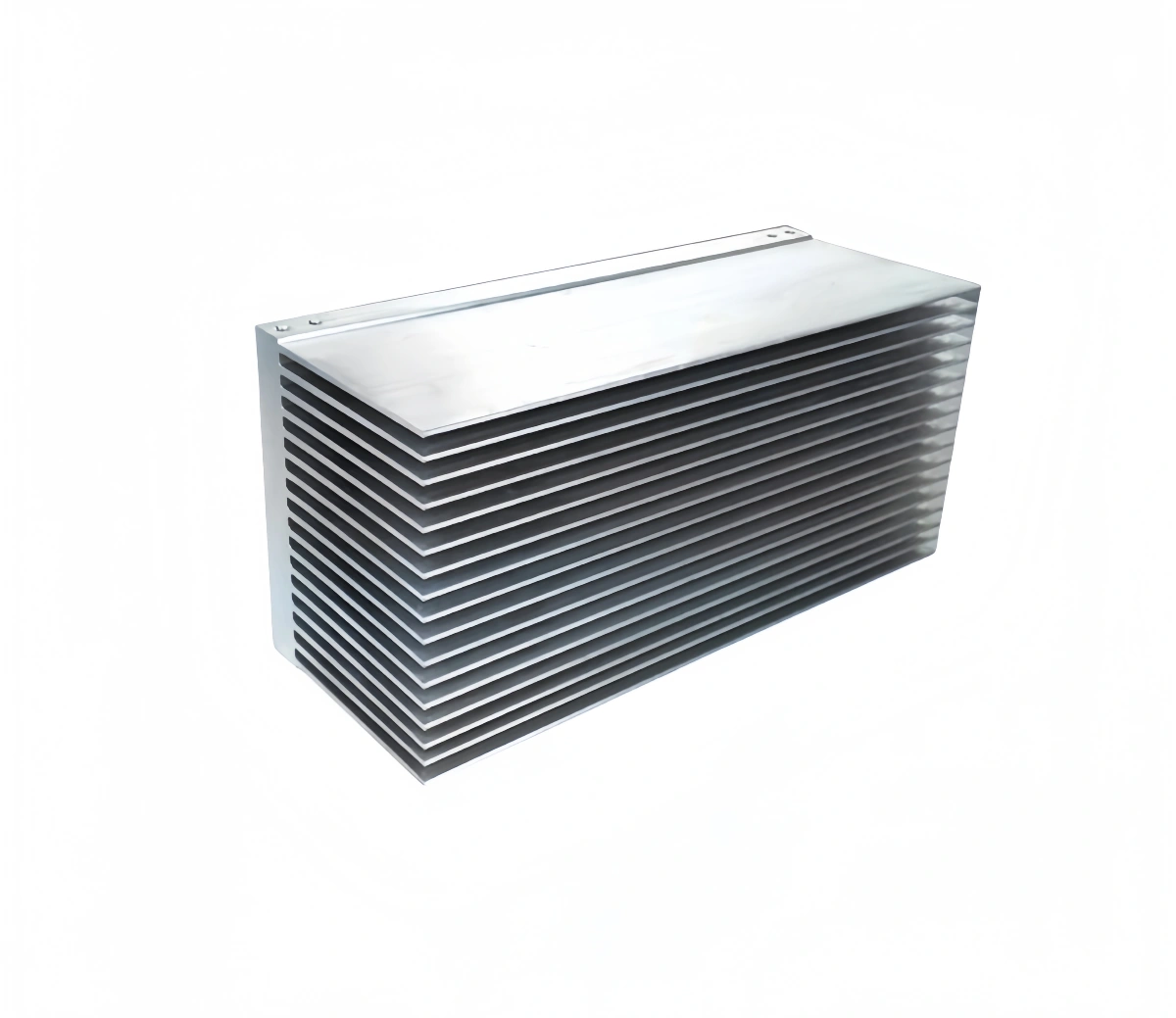

What applications use a large aluminum heat sink?

Thinking a large aluminum heat sink is only for a niche, super-high-power industrial gear? You might be surprised at the range of common and critical applications where these substantial coolers are indispensable. I’ve supplied them for quite a variety.

From my experience providing thermal solutions at ALUT, a large aluminum heat sink is used in a wide array of applications. Common examples I encounter include high-power LED lighting (streetlights, stadium lights), power electronics (inverters, converters, power supplies), industrial automation equipment, telecommunication base stations, and even high-performance computing systems.

The deployment of a large aluminum heat sink is typically driven by the need to manage significant thermal loads where smaller cooling solutions would be overwhelmed, or where passive, silent cooling is a primary design requirement. Here’s a look at some key application areas:

1. High-Power LED Lighting

• Streetlights & Roadway Lighting: Modern LED streetlights generate considerable heat from their high-power LED arrays. A large aluminum heat sink, often forming the luminaire’s housing, is crucial for dissipating this heat to ensure LED longevity and stable light output.
• Stadium & Arena Lighting: These fixtures use extremely powerful LED modules. Massive heat sinks, often with complex fin designs and sometimes active cooling, are essential.
• Horticultural Grow Lights: High-intensity grow lights produce a lot of heat that needs to be managed to protect both the LEDs and the plants.
• High Bay Industrial Lighting: Large passively cooled heat sinks are common in these fixtures.

2. Power Electronics

• Inverters and Converters: Devices that convert electrical power (e.g., DC-AC inverters for solar, AC-DC converters in power supplies, DC-DC converters) involve power semiconductors (IGBTs, MOSFETs) that generate substantial heat during switching and conduction. A large aluminum heat sink is vital for their reliable operation.
• Uninterruptible Power Supplies (UPS): Larger UPS systems require significant cooling for their power stages.
• Welding Equipment & Industrial Power Supplies: These handle high currents and voltages, generating significant heat.

3. Industrial Automation and Control Systems

• Motor Drives (VFDs): Variable Frequency Drives used to control large industrial motors dissipate a lot of heat.
• Programmable Logic Controllers (PLCs) & Industrial PCs: Higher-power modules or fanless industrial computers often rely on substantial passive heat sinks.
• Robotics: Power electronics and motors within industrial robots can require robust thermal management.

4. Telecommunications Equipment

• Base Station Power Amplifiers: Radio frequency (RF) power amplifiers in cellular base stations are notoriously inefficient and generate large amounts of heat. A large aluminum heat sink, often with forced air, is standard.
• Network Switches and Routers: Higher-end enterprise or carrier-grade equipment can have significant cooling needs.

5. High-Performance Computing & Servers

• While many servers use active fan cooling, some high-density systems or fanless designs might incorporate very large aluminum heat sink components, sometimes as part of a liquid cooling loop’s radiator.
• Workstations: High-end graphics cards and CPUs in powerful workstations can utilize large passive or actively cooled heat sinks.

6. Transportation and Automotive

• Electric Vehicle (EV) Components: Power electronics, battery management systems, and on-board chargers in EVs often require substantial heat sinking.
• Railway Systems: Power conversion and control units in trains.

7. Medical Equipment

• Some diagnostic or therapeutic equipment (e.g., MRI power supplies, laser systems) generates heat that must be managed silently and reliably, often necessitating a large aluminum heat sink.

The common thread across these applications is the presence of components generating heat loads that exceed the capacity of small, simple cooling solutions, making a well-designed large aluminum heat sink a critical enabling technology.

The versatility of aluminum and the effectiveness of large heat sink designs make them indispensable in these and many other demanding fields.

Schlussfolgerung

A large aluminum heat sink is crucial for high-power applications. Proper manufacturing and design ensure effective heat dissipation, making them vital for LEDs, power electronics, and industrial equipment reliability.
