Unlocking Superior Cooling: Why Heat Sink Profiles Aluminum Are Essential?

Are your electronics overheating, leading to poor performance or failure? This is a common, costly problem. I’ve seen how crucial effective thermal management is for product reliability.

From my experience manufacturing components at ALUT, I know heat sink profiles aluminum are essential because aluminum offers an outstanding combination of high thermal conductivity, light weight, and excellent extrudability. This allows us to create complex finned shapes that efficiently dissipate damaging heat away from sensitive components.

These specialized profiles are more than just pieces of metal; they are engineered solutions critical to the lifespan and performance of many electronic devices. Let’s explore why aluminum is the go-to material, the types available, and what makes them perform so well.

Why use aluminum for heat sink profiles?

Wondering why aluminum is so dominant for heat sinks when other metals exist? Choosing the wrong material means poor cooling and potential device failure. I understand the need for optimal thermal performance.

In my role at ALUT, facilitating the production of countless thermal solutions, I can tell you aluminum is used for heat sink profiles due to its excellent thermal conductivity (around 205 W/mK for common alloys like 6063), light weight, corrosion resistance, and cost-effectiveness. Crucially, its superior extrudability allows us to easily form complex fin designs that maximize surface area for efficient heat dissipation.

While other materials like copper offer even higher thermal conductivity, aluminum strikes an optimal balance of several key properties that make it the preferred choice for the vast majority of heat sink profiles aluminum applications. Let’s delve deeper into these reasons:

Excellent Thermal Conductivity

• Heat Transfer Efficiency: Aluminum, particularly alloys like 6063 and 6061 commonly used for heat sink profiles aluminum, possesses very good thermal conductivity. This property allows heat to quickly spread from the hot component (e.g., CPU, LED, power transistor) across the entire volume of the heat sink. Efficient spreading is the first step in effective dissipation. While copper is better (~400 W/mK), aluminum’s conductivity is more than sufficient for most electronic cooling needs and comes with other advantages.

Leichtgewicht

• Reduced Structural Load: Aluminum’s density is about 2.7 g/cm³, roughly one-third that of copper (8.96 g/cm³) or steel. This low weight is a significant advantage, especially in applications where overall product weight is a concern (e.g., portable electronics, aerospace, automotive components). Lighter heat sink profiles aluminum mean less stress on mounting points and PCBs, and easier handling during assembly.

Superior Extrudability and Manufacturability

• Complex Shapes: This is a major reason for aluminum’s dominance. Aluminum alloys are highly extrudable, meaning they can be easily forced through a die to create intricate and complex linear shapes with consistent cross-sections. This allows for the design of heat sink profiles aluminum with numerous thin, high-aspect-ratio fins, maximizing the surface area available for convective heat transfer to the surrounding air.
• Cost-Effective Production: Extrusion is a relatively low-cost manufacturing process for producing long, continuous profiles that can then be cut to desired lengths. This makes heat sink profiles aluminum economical, especially for high-volume production. Secondary machining (like CNC milling for base flatness or mounting holes) is also straightforward with aluminum.

Good Corrosion Resistance

• Natural Protection: Aluminum naturally forms a thin, tenacious oxide layer (aluminum oxide, Al₂O₃) on its surface when exposed to air. This layer is very stable and protects the underlying metal from further oxidation and corrosion in many environments.
• Eloxieren: The corrosion resistance and surface hardness of heat sink profiles aluminum can be further enhanced through anodizing, a common surface treatment that also allows for coloring (often black, to improve radiative heat emission).

Kosten-Wirksamkeit

• Material Cost: Aluminum is generally less expensive than copper, which has significantly higher raw material costs.
• Manufacturing Cost: As mentioned, the ease of extruding and machining aluminum contributes to lower overall manufacturing costs for heat sink profiles aluminum compared to equivalent copper heat sinks.

Wiederverwertbarkeit

• Aluminum is highly recyclable without significant loss of its properties, making it an environmentally favorable choice.

Here’s a comparison highlighting why heat sink profiles aluminum are popular:

While copper might be chosen for extremely high heat flux applications where space is severely limited, the overall balance of thermal performance, low weight, ease of manufacturing complex shapes, good corrosion resistance, and cost makes heat sink profiles aluminum the optimal solution for the vast majority of electronic cooling needs.

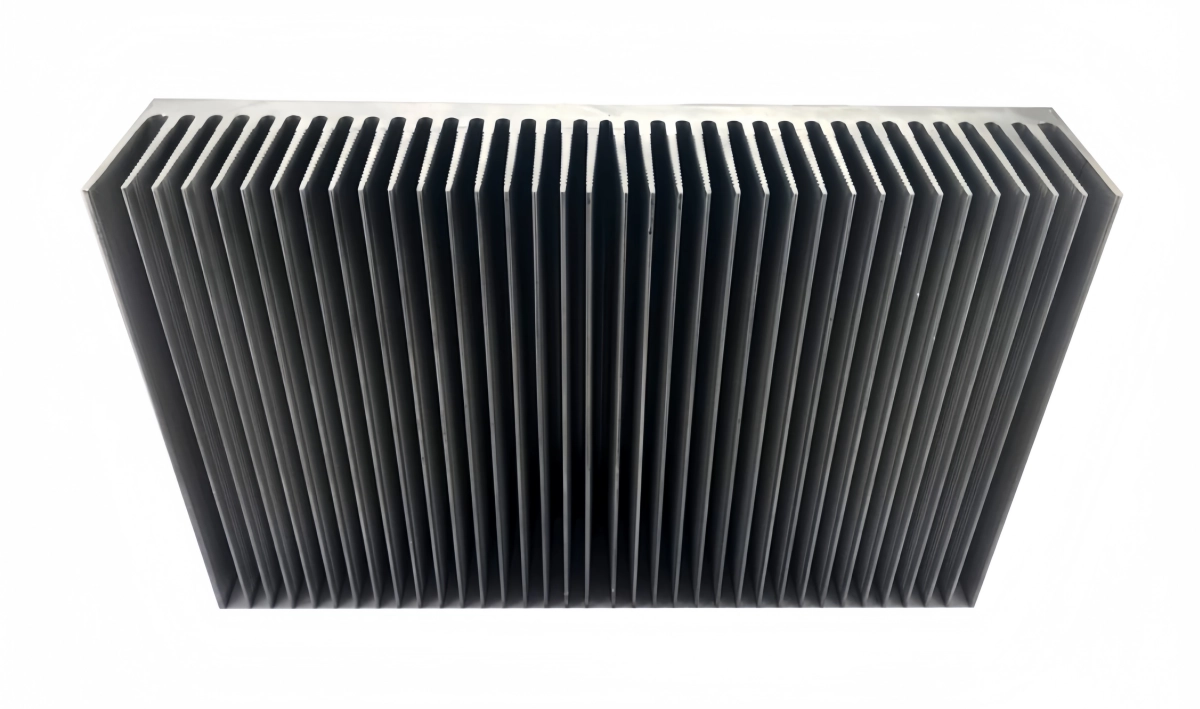

What types of heat sink profiles aluminum exist?

Are all finned aluminum pieces the same? When you need to cool electronics, knowing the different types of heat sink profiles aluminum helps you select the most effective and appropriate solution. Simply picking any profile might lead to suboptimal cooling.

From the diverse range of heat sink profiles aluminum we manufacture at ALUT to meet specific cooling requirements, I can tell you they primarily vary by their fin design, overall shape (e.g., flat back, U-channel, round), and manufacturing method (though extrusion is dominant for profiles). Common types include straight fin, flared fin, and pin fin designs, each offering different airflow characteristics.

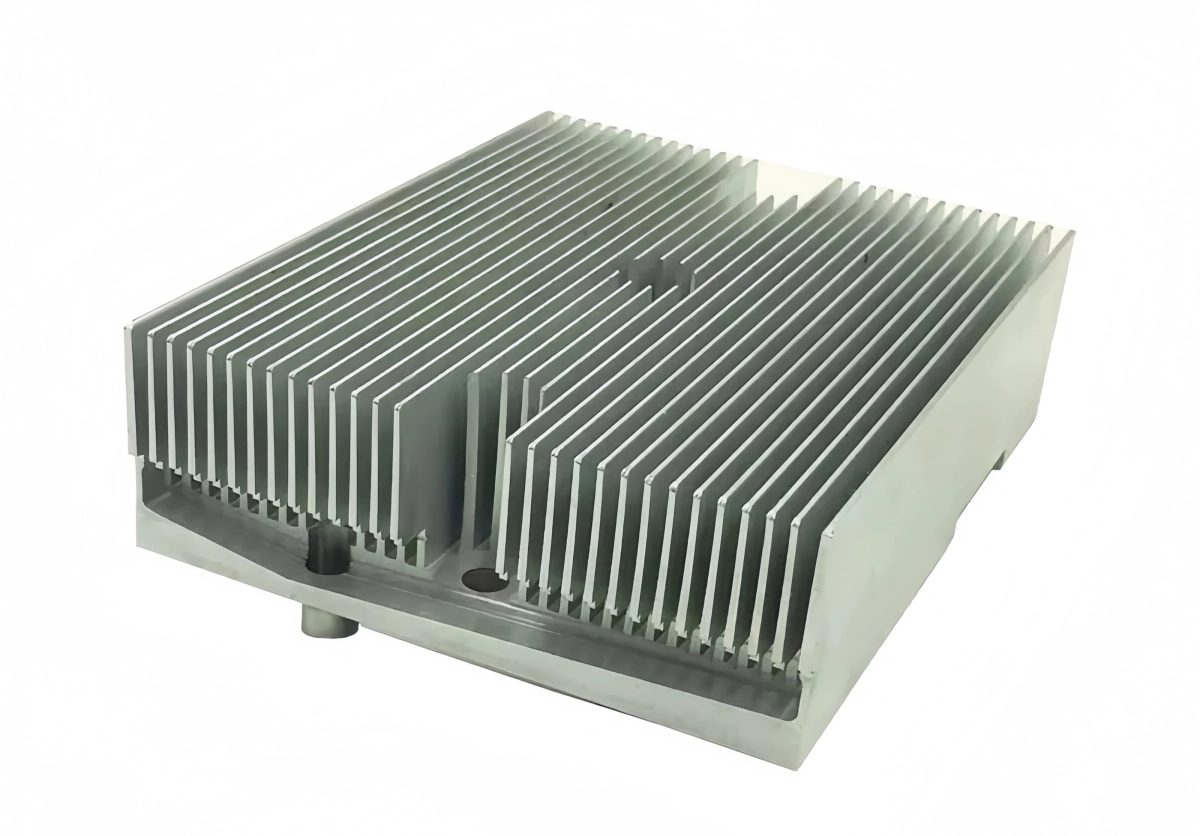

The “profile” aspect of heat sink profiles aluminum most often refers to shapes created through the extrusion process, which allows for a continuous cross-section with integrated fins. However, the term can sometimes broadly include other heat sink constructions made from aluminum. The primary goal is always to maximize the effective surface area for heat dissipation. Here are the common types:

Based on Fin Geometry (Primarily Extruded)

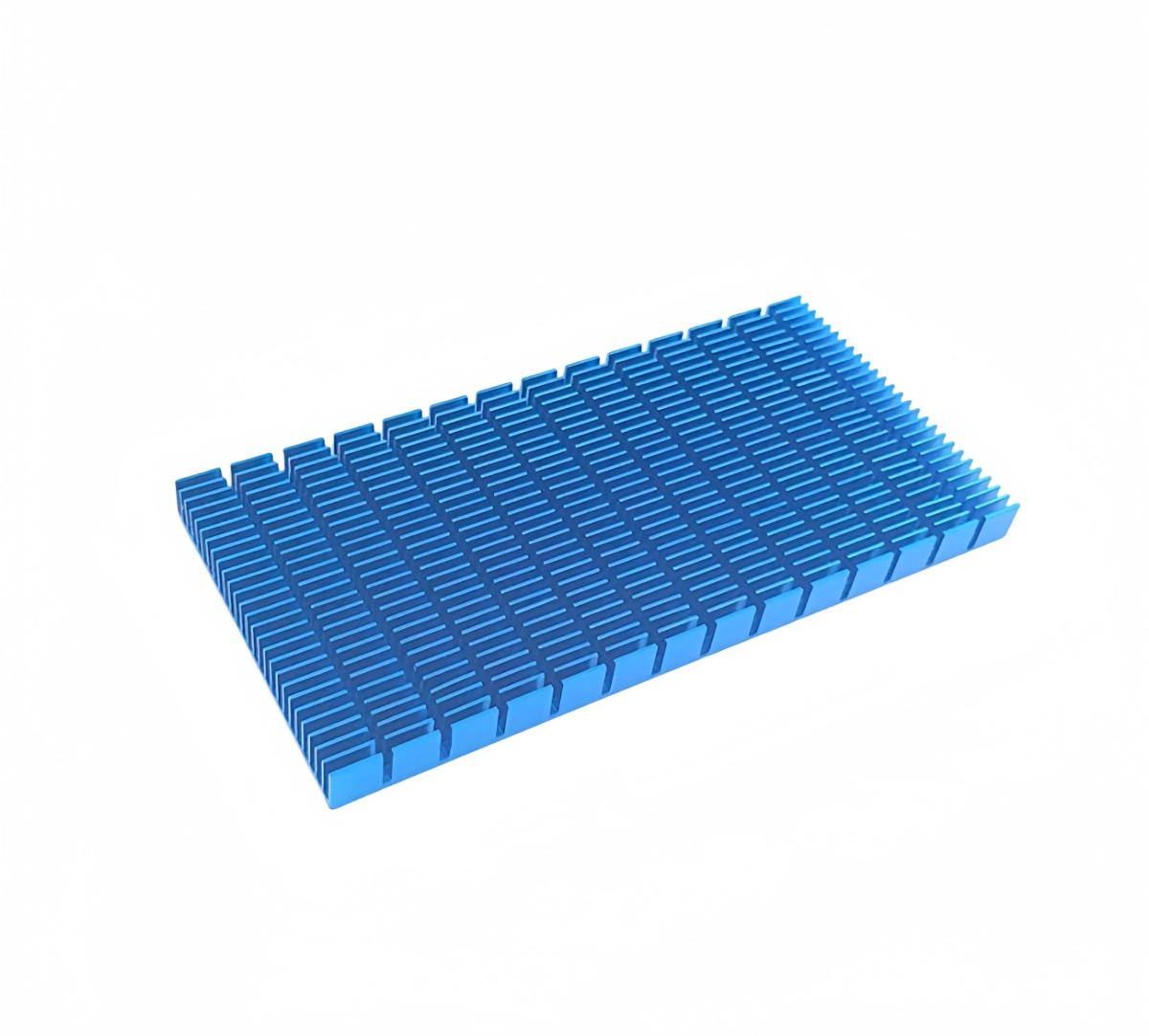

• Straight Fin Profiles:
  • Beschreibung: These are the most common type of extruded heat sink profiles aluminum. They feature straight, parallel fins extending from a flat base.
  • Characteristics: Simple to manufacture, cost-effective, and perform well in natural convection or forced airflow parallel to the fins. Fin height, thickness, and spacing are key design parameters.
  • Anwendungsfälle: General electronics, LED lighting, power supplies, amplifiers.
• Flared Fin (or Splayed Fin) Profiles:
  • Beschreibung: The fins are angled outwards (splayed) from the base, rather than being strictly parallel.
  • Characteristics: Flaring the fins can slightly reduce airflow resistance and potentially improve performance in natural convection by encouraging better air movement through the fin array, especially if the heat sink is not optimally oriented.
  • Anwendungsfälle: Similar to straight fin, often chosen when airflow is less direct or space around the heat sink is more open.
• Interlocking or Dovetail Profiles:
  • Beschreibung: These heat sink profiles aluminum are designed with features (like dovetail slots) that allow multiple extrusions to be interlocked to create much wider heat sinks than can be economically extruded as a single piece.
  • Characteristics: Enables very large heat sink assemblies for high-power applications.
  • Anwendungsfälle: High-power inverters, large power supplies, industrial equipment.

Based on Overall Shape and Mounting

• Flat Back / Plate Fin: The most common form, with a flat base for mounting directly onto the heat-generating component or PCB.
• U-Channel or C-Channel Shapes: Extruded in a U or C shape, often used to clamp onto components or provide structural support as well as cooling. Fins can be on the inside or outside surfaces.

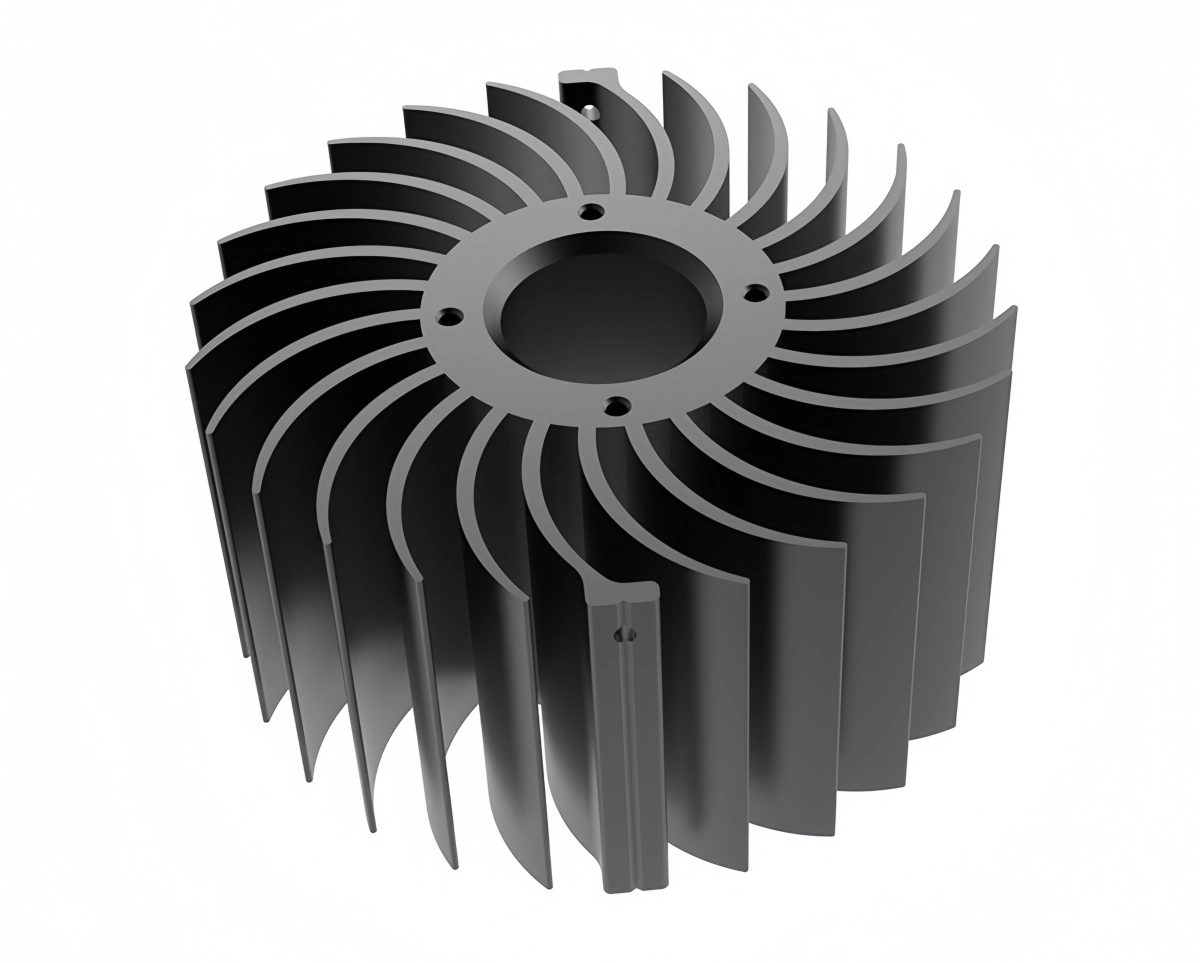

• Round or Star Profiles: Sometimes used for omnidirectional cooling, especially for LEDs or components that radiate heat in multiple directions. The fins radiate outwards from a central core.
• Board-Level Heat Sinks: Smaller, often stamped or forged (not always ‘profiles’ in the extruded sense), designed for direct mounting onto PCBs to cool individual ICs. Some very small board-level heat sinks can be miniature extrusions.

Less Common “Profiled” Heat Sinks (May Not Be Pure Extrusions)

• Pin Fin Heat Sinks:
  • Beschreibung: Consists of an array of cylindrical, square, or elliptical pins extending from a base. These are often made by forging, casting, or machining, though some specialized extrusion techniques can create pin-like features.
  • Characteristics: Offer good performance in situations with impinging airflow (air hitting the pins perpendicularly) or omnidirectional airflow, as they have lower pressure drop than dense straight fins.
• Bonded Fin Heat Sinks:
  • Beschreibung: Individual fins (often made from stamped or folded sheet aluminum) are bonded (e.g., with thermal epoxy or brazing) to a base plate. This allows for very high fin densities and aspect ratios not easily achievable with single-piece extrusion.
  • Characteristics: Excellent performance, especially for forced convection, but generally more expensive than extruded heat sink profiles aluminum.

Here’s a table summarizing common extruded types:

The choice of heat sink profiles aluminum depends heavily on the thermal load, available space, airflow conditions (natural convection or forced air), and cost constraints of the application. Extruded straight fin profiles offer the best balance for a wide range of needs.

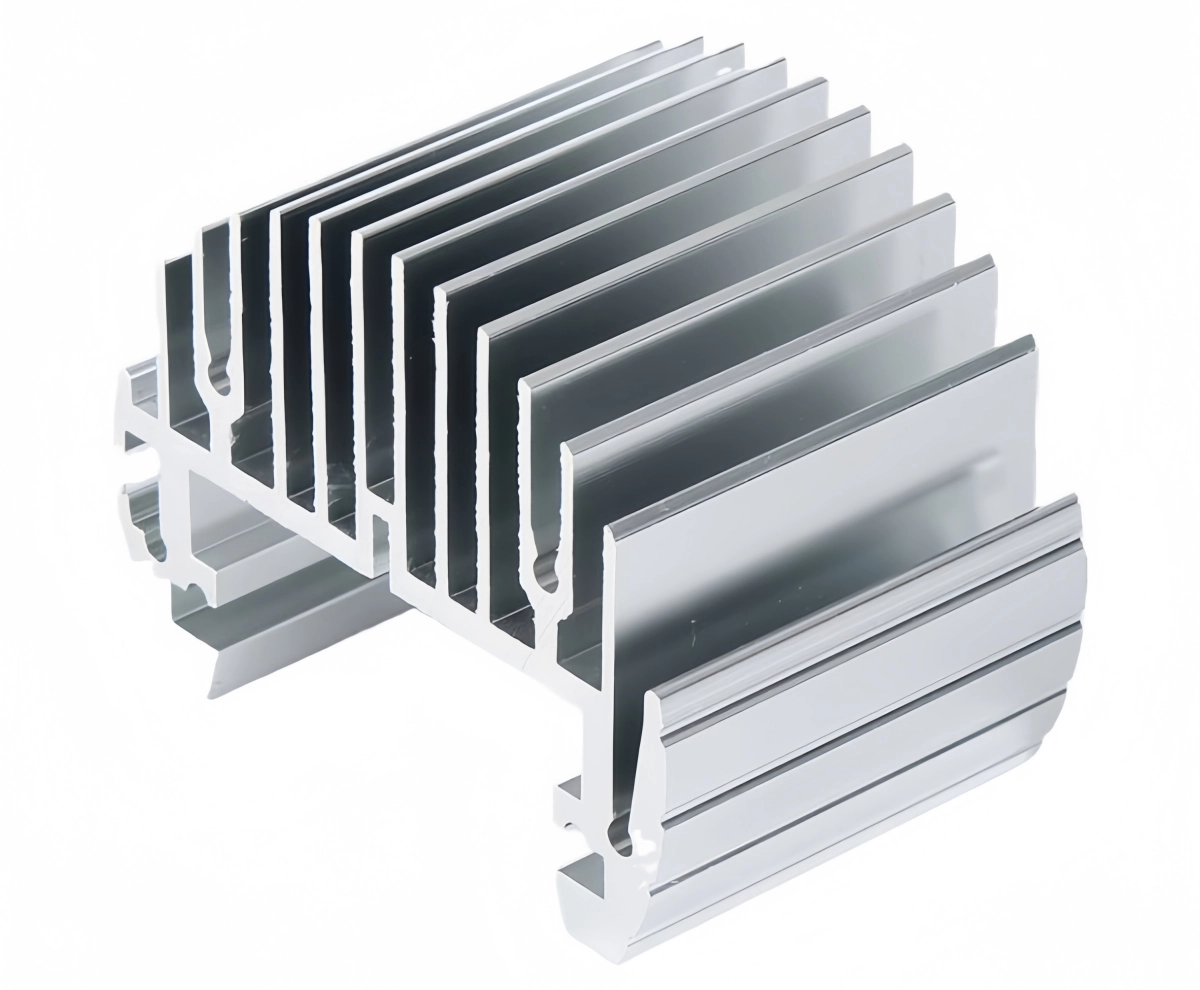

What affects heat sink profiles aluminum performance?

Is your chosen heat sink profiles aluminum not cooling effectively enough? Simply having fins isn’t a guarantee of good performance. Many factors influence how well a heat sink does its job. I’ve seen how overlooking these can lead to overheating issues.

From my engineering and manufacturing perspective at ALUT, the performance of heat sink profiles aluminum is critically affected by several interconnected factors. These include the overall surface area (fin design), the thermal conductivity of the aluminum alloy, the thermal resistance at the interface with the heat source, the ambient temperature, and, very importantly, the nature and velocity of airflow over the fins.

The primary goal of heat sink profiles aluminum is to transfer thermal energy from a hot component to the surrounding cooler air. Its performance is typically quantified by its thermal resistance (°C/W), which indicates how much the temperature of the heat source will rise for every watt of heat it generates. A lower thermal resistance means better performance. Several elements contribute:

1. Material Thermal Conductivity

• As discussed, aluminum alloys like 6063 or 6061 have good thermal conductivity (~200-210 W/mK). This allows heat to spread efficiently from the base (contact point with the heat source) throughout the fins. Higher conductivity means less temperature drop along the fins, making more of the fin surface effective.

2. Surface Area

• More Fins, More Area: The total exposed surface area of the heat sink profiles aluminum (base plus all fin surfaces) is directly proportional to its ability to convect heat to the air. More fins, taller fins, and thinner fins (allowing more fins in a given space) generally increase surface area.
• Fin Efficiency: However, simply adding more fins isn’t always better. Very tall, thin fins can have poor “fin efficiency” because the tip of the fin might be much cooler than its base, reducing its heat transfer effectiveness. Fin spacing is also critical; if fins are too close, they restrict airflow. There’s an optimal balance for fin height, thickness, and spacing for given airflow conditions.

3. Airflow (Convection)

This is often the most dominant factor for heat sink profiles aluminum.

• Natural Convection: Relies on buoyancy; warmer air rises, drawing cooler air in. Performance is highly dependent on heat sink orientation (fins vertical is usually best) and unrestricted space around it.
• Forced Convection: Using a fan to blow air across the fins dramatically increases the heat transfer coefficient, significantly improving performance. Higher air velocity generally means better cooling, up to a point where the pressure drop becomes excessive. The design of the heat sink profiles aluminum (fin spacing, type) should be matched to the airflow characteristics.

4. Thermal Interface Material (TIM)

• Contact Resistance: The interface between the heat-generating component and the base of the heat sink profiles aluminum is never perfectly flat. Microscopic air gaps create significant thermal resistance. A Thermal Interface Material (TIM) – like thermal grease, pads, or phase change materials – is applied to fill these gaps and improve heat transfer from the component to the heat sink base. The quality and application of the TIM are crucial.

5. Radiation

• Heat sinks also dissipate heat via radiation. The amount of heat radiated depends on the surface emissivity (black surfaces radiate better than shiny ones – hence why many heat sink profiles are aluminum and black anodized) and the temperature difference between the heat sink and its surroundings. Radiation becomes more significant at higher temperatures and in natural convection scenarios.

6. Ambient Temperature

• The temperature of the surrounding air directly impacts the temperature difference (ΔT) between the heat sink and the air. A larger ΔT drives more heat transfer. If the ambient temperature is high, the heat sink will be less effective.

7. Heat Sink Base Spreading Resistance

• If the heat source is much smaller than the heat sink base, there’s a “spreading resistance” as heat travels from the small source area out into the larger base. A thicker base or materials with higher conductivity (like a copper insert under the heat source) can reduce this.

Optimizing the performance of heat sink profiles aluminum involves a careful balance of these factors, often requiring thermal simulation or empirical testing.

Where are heat sink profiles aluminum commonly used?

Are you wondering which common devices rely on heat sink profiles aluminum for thermal management? You might be surprised by their ubiquity. Their efficient cooling makes them indispensable in many modern electronics and industrial applications.

Based on the wide array of industries we supply with heat sink profiles aluminum at ALUT, I see them commonly used in LED lighting fixtures, computer CPUs and GPUs, power supplies and converters, amplifiers, motor controls, telecommunication equipment, and various automotive electronics. Essentially, anywhere significant heat is generated by electronic components and needs to be managed efficiently and cost-effectively.

The versatility, cost-effectiveness, and excellent thermal properties of heat sink profiles aluminum make them a go-to solution for thermal management across a vast spectrum of applications. Here are some of the most prominent areas:

Electronics and Computing

• CPUs and GPUs: Desktop computers, servers, and gaming consoles almost universally use heat sink profiles aluminum (often with copper bases and fans) to cool central processing units and graphics processing units.
• Motherboards: Chipsets and VRMs (Voltage Regulator Modules) on motherboards often have smaller dedicated aluminum heat sinks.
• Solid State Drives (SSDs): High-performance NVMe SSDs can generate significant heat and often come with or have aftermarket heat sink profiles aluminum available.
• Power Supplies: Both internal (ATX, server) and external power supplies use them to cool rectifiers, transistors, and transformers.
• Audio Amplifiers: Power transistors in audio amplifiers generate considerable heat that needs dissipation, often with large, visible heat sink profiles aluminum.

LED Lighting

• High-Power LEDs: LEDs, especially high-brightness ones used in commercial, industrial, automotive, and even residential lighting, convert a portion of electrical energy into heat. Heat sink profiles aluminum are crucial for dissipating this heat to maintain LED lifespan, color consistency, and light output. Many LED fixtures have the heat sink integrated into their housing design.

Power Electronics and Industrial Equipment

• Motor Controls and Drives: Variable Frequency Drives (VFDs) and motor controllers use power semiconductors (IGBTs, MOSFETs) that require substantial cooling, often provided by robust heat sink profiles aluminum.
• Power Converters and Inverters: Devices that convert AC to DC, DC to DC, or DC to AC rely on efficient cooling for their switching components.
• Welding Equipment: The power electronics in modern welding machines generate intense heat.
• Telecommunication Equipment: Base stations, routers, and switches contain electronics that need reliable thermal management.

Automobil und Transport

• Electronic Control Units (ECUs): Various ECUs in vehicles require heat sinks.
• LED Headlights and Taillights: High-intensity automotive LED lighting uses heat sink profiles aluminum.
• In-Car Entertainment and Navigation Systems.
• Power Electronics in Electric and Hybrid Vehicles.

Andere Anwendungen

• Medical Devices: Many electronic medical instruments require silent, reliable passive cooling.
• Test and Measurement Equipment.
• Consumer Electronics: A wide range of devices from set-top boxes to home appliances.

This table highlights some common areas:

The widespread adoption of heat sink profiles aluminum underscores their importance as a fundamental component in enabling the performance and reliability of modern technology.

Schlussfolgerung

Heat sink profiles aluminum are vital for superior device cooling. Their material properties, varied designs, and efficient performance make them indispensable across many industries for managing heat effectively and ensuring product longevity.
