The Ultimate Guide: Can You Bend 6061 Aluminum?

Are you wondering if you can bend 6061 aluminum without it cracking? This frustrating problem wastes material and delays your projects. I’ll show you how to master this tricky process and get it right every time.

Yes, you can absolutely bend 6061 aluminum, but it requires specific knowledge to do it successfully. In my experience, success depends entirely on understanding its temper, using a large bend radius, and sometimes applying heat through annealing to prevent fractures and ensure a clean result.

This challenge, answering “can you bend 6061 aluminum?”, is one of the most common issues purchasing managers bring to me. But don’t worry. Below, I’ll walk you through the exact steps and considerations my engineering team uses every day to deliver perfectly formed parts to our clients in the US and Europe. Let’s dive in.

What makes bending 6061 aluminum so difficult?

You know it’s hard, but without understanding why, you’ll never solve the puzzle of how to successfully bend 6061 aluminum. This leads to repeated failures and wasted material. Let’s fix that.

From my years running a factory, the main problem when people ask if you can bend 6061 aluminum comes from the 6061-T6 temper. This heat treatment gives the aluminum its fantastic strength. But, it also severely reduces its ductility. This trade-off makes the material brittle and very likely to crack.

The difficulty when you try to bend 6061 aluminum is a classic engineering problem. It is a trade-off between strength and how easy it is to form. Many of our clients, especially in the industrial machinery and aerospace fields, choose this alloy. They like its excellent strength-to-weight ratio. However, they often run into problems when their designs require bending. The reason is almost always the T6 temper. This heat treatment creates a very strong but inflexible material. It is great for structural parts but terrible for parts that need to be formed.

Understanding Temper and Ductility

Most of the 6061 aluminum you find is in the T6 temper state. Temper tells you what kind of heat treatment the metal had.

• T6 Temperament: This means the aluminum was heat-treated and then artificially aged. This process makes the metal very strong and hard. But it also makes it less forgiving. When you try to bend 6061 aluminum in the T6 state, the metal grains can’t move easily. This causes stress and leads to cracks.
• O Temper: This is the soft, annealed condition. Annealing is a heat process that softens the metal. It removes stress and makes the metal easy to bend. For complex shapes or tight bends, starting with the O temper is often the best choice.

The Role of Alloying Elements

The specific recipe of 6061 aluminum, with magnesium and silicon, is designed for heat treatment. These elements are key to making it hard. In contrast, an alloy like 5052 is much easier to form. I often show this simple table to clients to help them understand their options when they need to bend 6061 aluminum.

Understanding this basic difference is the first step. If your part needs a lot of forming, you must either choose a different alloy or plan to soften the material. This is a crucial decision when you need to bend 6061 aluminum.

What is the minimum bend radius for 6061 aluminum?

Are your parts constantly cracking at the bend? Trying to make a tight radius is a common mistake when you first try to bend 6061 aluminum. Let’s look at the real numbers you need to know.

Based on thousands of projects, I can tell you a safe minimum bend radius if you want to successfully bend 6061 aluminum is between 3 to 6 times the material thickness. For my team, trying to go tighter than this is a major red flag.

The minimum bend radius is a critical number. It is the smallest radius you can bend a sheet of metal to without it cracking. For a brittle material like 6061-T6, this is one of the most important design rules. The outside of the bend stretches, and the inside compresses. If the stretch on the outside is too much, the material will break. A larger bend radius spreads this stress over a wider area, preventing failure. This is a key factor when you need to bend 6061 aluminum.

Calculating Your Bend Radius

A simple rule of thumb is essential for good design. I always advise my customers to use a chart. This makes sure their design can actually be made. When we get drawings for a part that requires us to bend 6061 aluminum, the first thing my engineers check is the bend radius.

Here is a general guide we use. Look at how the recommended radius gets much bigger for the stronger T6 temper.

Factors That Influence the Bend Radius

Other things also affect the bend.

• Werkzeuge: The tools in a press brake must be correct. A sharp tool creates a stress point and will cause a crack.
• Grain Direction: Aluminum sheet has a grain. Bending along the grain can cause it to split. We always try to bend across the grain.
• Bending Speed: A slow, steady bend works best. It gives the material time to form without breaking.

Ignoring the minimum bend radius is a common reason for failure. Always design with a large enough radius.

Do you need to anneal 6061 aluminum before bending?

Do you need a sharp bend, but the material will not cooperate? When your design has a tight radius, you need a way to soften the metal so you can bend 6061 aluminum correctly.

Absolutely. In my factory, we often anneal when the goal is to bend 6061 aluminum with a tight radius that the T6 temper cannot handle. Annealing it to the ‘O’ temper state makes it soft and ductile. It is often the only way to get complex forms right.

Annealing is a heat treatment process. It changes the inside structure of the metal. For 6061 aluminum, it reverses the hardening of the T6 temper. It makes the material soft, removes stress, and brings back its ability to bend. You can think of it as hitting a “reset” button. This makes it possible to bend 6061 aluminum into shapes that would otherwise be impossible. This step is a standard part of our quality control process for complex parts.

The Annealing Process for 6061 Aluminum

When a client gives us a design that cannot be formed in the T6 state, we suggest annealing. The process has a few key steps:

1. Heizung: We heat the part in a special furnace to about 775°F (415°C). The temperature control must be very accurate.
2. Soaking: We hold the part at this temperature for 2 to 3 hours.
3. Kühlung: Then, we cool the part very slowly inside the furnace.

This slow cooling is the most important part. If it cools too fast, the metal will get hard again. After annealing, the part is in the O temper and is ready to be bent easily. The entire question of “can you bend 6061 aluminum” becomes much simpler after this step.

When is Annealing Absolutely Necessary?

We always anneal in these situations:

• Tight Bend Radii: When the design needs a bend radius of 1 times the thickness or less.
• Complex Forms: For parts with many bends close together or deep shapes.
• After Work-Hardening: If a part gets too hard during forming, we can anneal it to soften it for more work.

The main drawback is that the part loses its T6 strength. If the final part needs to be strong, we must heat-treat it again after forming.

How can you prevent 6061 aluminum from cracking when bending?

Cracked parts are the ultimate enemy. You need a reliable strategy to get it right every single time you need to bend 6061 aluminum.

To prevent cracking when you bend 6061 aluminum, my team follows a strict checklist. We use a generous bend radius, bend slowly, and always bend across the grain. For any tough job, annealing is our foolproof solution for guaranteed success.

Preventing cracks is all about controlling stress. The entire process to bend 6061 aluminum must be geared towards minimizing stress concentration. Over the years, we have created a list of best practices that almost completely stops failures. It is not one single trick. It is a system that respects the material. A good supplier should manage all these things for you so you do not have to worry about quality problems.

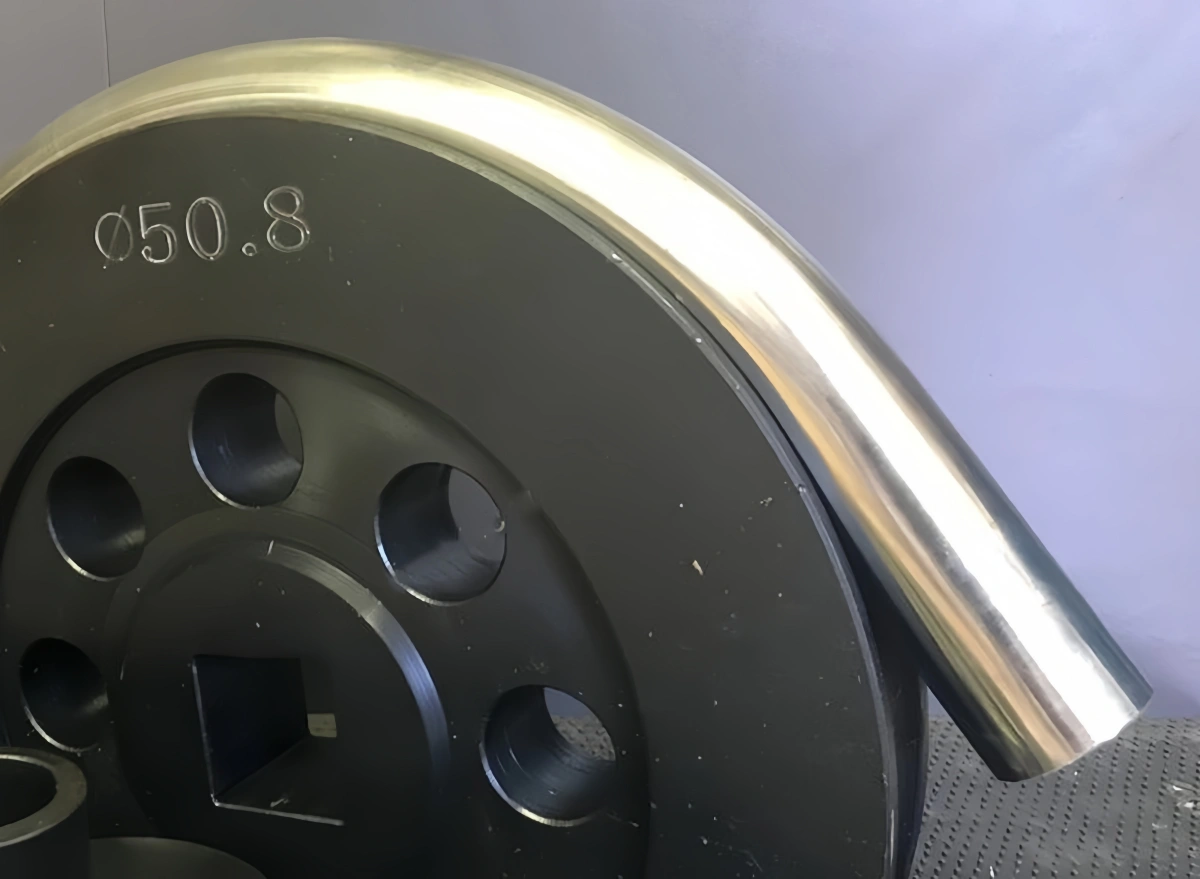

Tip 1: Proper Tooling and Die Selection

The tools are very important. A sharp tool will act like a knife and focus all the bending force in one small area. This causes cracks. The bottom tool, the V-die, is also important. A wider V-die creates a bigger, more gradual bend. This reduces stress.

Tip 2: Pay Attention to Grain Direction

Aluminum sheet has a grain. Bending along this grain is a bad idea. The material is more likely to split. We make sure to cut the sheet so the bend goes across the grain. It’s a simple step that makes a big difference when the task is to bend 6061 aluminum.

Tip 3: Control Your Bend Speed

Finally, speed can be a problem. Bending too fast is like hitting the material with a hammer. A slow, steady bend speed gives the aluminum time to form.

Here is a quick troubleshooting guide I give to my team:

By controlling these key things—tooling, orientation, and speed—you can reliably bend 6061 aluminum without costly fractures.

Schlussfolgerung

So, the final answer to “can you bend 6061 aluminum?” is yes. But it is not simple. You must respect the material. Master the bend radius, consider annealing, and you will avoid frustrating and expensive mistakes.
