Unveiling the Ultimate Best Aluminum Alloy for Heat Sink Success?

Struggling with overheating electronics or LEDs? Choosing the wrong material for your heat sinks can lead to component failure and poor performance. I know this is a critical decision for your products.

From my experience manufacturing countless thermal solutions at ALUT, I can tell you the best aluminum alloy for heat sink applications generally combines high thermal conductivity with good extrudability and reasonable cost. Alloys like 6063 and 6061 are often top contenders due to these balanced properties.

But the “best” isn’t always a single answer; it depends on specific application needs and design constraints. Let’s explore the properties that matter most and compare common alloy choices to help you select the ideal material for your thermal management challenges.

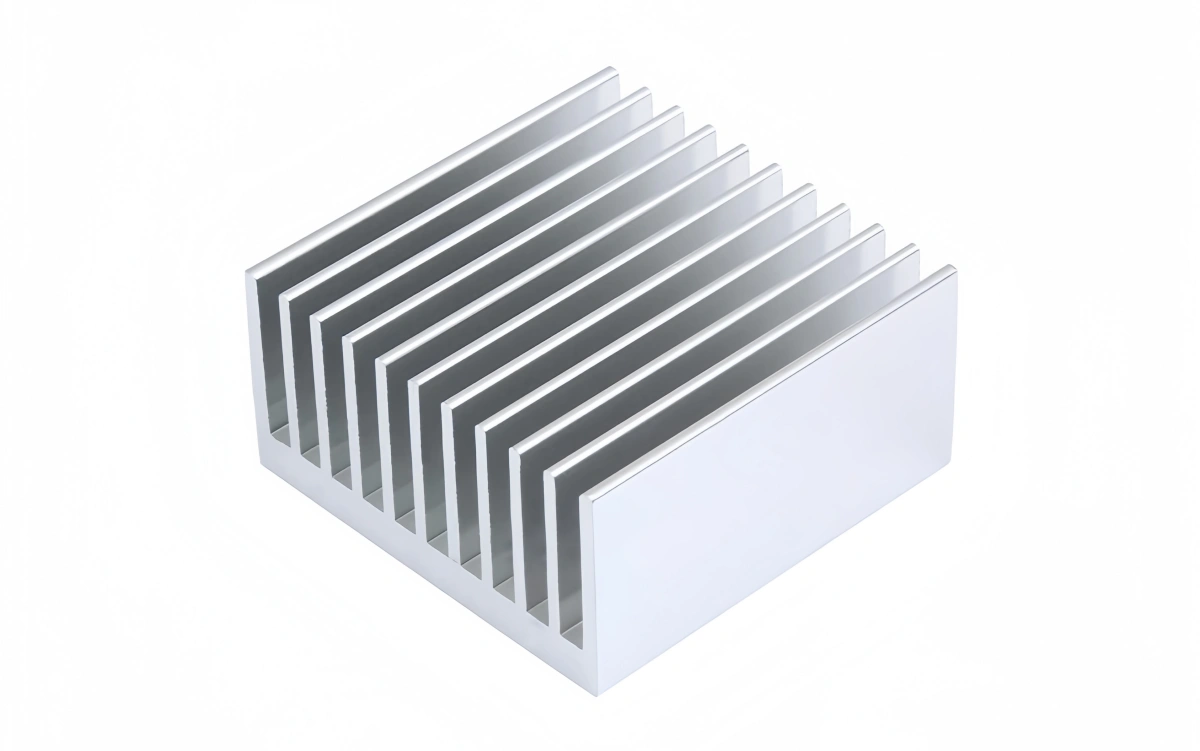

What factors determine the best aluminum alloy for heat sink performance?

Wondering what specific properties elevate an aluminum alloy to “best” status for heat sink applications? Simply picking any aluminum type off the shelf won’t guarantee optimal cooling for your devices. Let me break down the critical characteristics you need to consider.

Based on our extensive manufacturing of thermal management parts at ALUT, the factors that make the best aluminum alloy for heat sink use are primarily its thermal conductivity, ease of fabrication (especially extrudability to create complex fin designs), corrosion resistance, strength-to-weight ratio, and overall cost-effectiveness for the intended application.

A heat sink’s primary job is to dissipate heat away from a heat-generating component (like a CPU, GPU, LED, or power transistor) into the surrounding cooler air. The material chosen for the best aluminum for heat sink plays a pivotal role in how effectively this happens. While other materials like copper offer higher thermal conductivity, aluminum alloys often provide the best overall balance of performance, weight, and cost for many applications. To determine the best aluminum alloy for heat sink designs, several key material properties must be considered:

1. High Thermal Conductivity

• Definition: This is arguably the most critical property for a heat sink material. Thermal conductivity (usually denoted as ‘k’, measured in W/m·K – Watts per meter-Kelvin) indicates a material’s ability to transfer heat energy. A higher ‘k’ value means the material can conduct heat away from the heat source more quickly and efficiently.
• Impact on Performance: The faster heat can be drawn from the small, hot contact area with the electronic component into the heat sink body and spread throughout its fins, the more effectively it can be transferred to the ambient air via convection (heat transfer to moving air) and radiation (heat transfer via electromagnetic waves). Pure aluminum has very high thermal conductivity (around 235 W/m·K), but alloying elements, added to improve strength or extrudability, generally reduce this value. However, even common aluminum alloys offer excellent conductivity compared to many other structural materials like steel or plastics.

2. Good Extrudability / Fabricability

• Complex Fin Design: Effective heat sinks often feature intricate and densely packed fin designs to maximize the surface area available for heat dissipation to the air. Aluminum alloys that are easily extrudable allow for the cost-effective production of these complex, high-aspect-ratio fins and unique profiles. This formability is a major reason why aluminum is so popular for heat sinks. The ability to create these shapes efficiently directly influences the thermal performance that can be achieved.
• Bearbeitbarkeit: While extrusion can create near-net shapes, some heat sinks require secondary machining operations (e.g., for creating precise mounting holes, lapping the base for better contact with the heat source, or milling specific features). Alloys chosen should possess reasonable machinability to keep these post-extrusion costs manageable.

3. Corrosion Resistance

• Long-Term Durability: Heat sinks need to perform reliably over the entire lifespan of the product they are cooling. They must resist degradation from environmental factors, primarily corrosion, which could impede thermal transfer by forming an insulating layer or altering surface properties. Most aluminum alloys offer good to excellent natural corrosion resistance due to the spontaneous formation of a thin, tenacious, and protective aluminum oxide layer on their surface. This resistance can be further enhanced by surface treatments like anodizing.

4. Lightweight (Good Strength-to-Weight Ratio)

• Reduced System Weight: In many electronic devices, especially portable ones (laptops, mobile devices) or those with overall weight constraints (aerospace, automotive), aluminum’s low density (approximately 2.7 g/cm³, about one-third that of steel or copper) is a significant advantage. It allows for effective cooling solutions without adding excessive mass to the overall system.

5. Cost-Effectiveness

• Material Cost: Aluminum is a relatively abundant and therefore cost-effective raw material compared to high-conductivity alternatives like copper.
• Manufacturing Cost: The ease of extruding and fabricating aluminum alloys into complex shapes contributes to lower overall manufacturing costs for heat sinks, especially for high-volume production.

The best aluminum alloy for heat sink applications will therefore be one that scores highly across these critical parameters, offering an optimal blend for the specific thermal challenge, manufacturing process, and budget constraints of the project.

Do you know the best aluminum alloy for heat sink applications?

Searching for that one “magic bullet” alloy that is universally the top choice for all heat sink needs? While some aluminum alloys are clear frontrunners due to their properties, the truly “best” option can be application-dependent. However, I can point you to the most commonly successful and recommended choices based on a balance of performance and practicality.

From my experience manufacturing countless heat sinks for various industries at ALUT, while several alloys can be used, I generally find that 6063 aluminum alloy is often considered the best aluminum alloy for heat sink applications. This is primarily because it offers an excellent combination of high thermal conductivity with superior extrudability for complex fin designs and a good surface finish. Alloy 6061 is also a very strong contender, particularly if higher mechanical strength is a key requirement for the heat sink.

While pure aluminum (from the 1xxx series, such as 1050A or 1100) boasts the highest thermal conductivity among all aluminum alloys (typically around 220-230 W/m·K), it is relatively soft and possesses low mechanical strength. This softness makes it less suitable for forming intricate and durable fin structures through extrusion or for applications where the heat sink might experience any physical stress. Consequently, manufacturers and designers usually turn to specific heat-treatable alloys from the 6xxx series, which offer a more practical balance of properties.

Leading Contenders for the Best Aluminum Alloy for Heat Sink Designs:

• Aluminum Alloy 6063:
  • Wärmeleitfähigkeit: Typically ranges from 200 W/m·K to 218 W/m·K, depending on the specific temperature (e.g., T5 or T6). This value is very good and often provides an excellent trade-off between thermal performance and other desirable characteristics.
  • Extrudierbarkeit: This is where 6063 truly shines. It is known for its excellent extrudability, allowing for the creation of very intricate, thin-walled, and high-aspect-ratio finned profiles with high precision. This capability is crucial for maximizing the surface area of the heat sink, which is essential for effective convection.
  • Korrosionsbeständigkeit: Very good, suitable for most operating environments.
  • Stärke: Moderate mechanical strength. While not as strong as 6061, it is generally sufficient for most heat sink applications where the component is not under significant structural load.
  • Oberfläche: Alloy 6063 takes anodizing exceptionally well, resulting in a very good aesthetic appearance and further enhanced corrosion and wear resistance. This makes it ideal for visible heat sinks.
  • Common Use Cases: It’s widely used for electronic cooling solutions, LED lighting heat sinks, computer components (like CPU and GPU coolers), and various general-purpose thermal management applications. Many in the industry consider 6063 the go-to best aluminum alloy for heat sink designs when extrudability and a superior surface finish are paramount, alongside strong thermal performance.
• Aluminum Alloy 6061:
  • Wärmeleitfähigkeit: Slightly lower than that of 6063, typically around 167 W/m·K to 180 W/m·K (depending on temper, with T6 being common). While lower, this is still a very respectable value for many thermal applications.
  • Extrudierbarkeit: Good, but generally not quite as easy to extrude into the most complex or thinnest-finned shapes as 6063.
  • Korrosionsbeständigkeit: Good.
  • Stärke: Significantly higher mechanical strength and toughness compared to 6063. This makes it suitable for heat sinks that may also bear some structural load, require more robust mounting features, or might be subjected to vibration or impact.
  • Common Use Cases: Utilized when higher strength or structural integrity is a more critical factor in addition to thermal performance, such as in more ruggedized electronic enclosures or larger heat sink assemblies that form part of a device’s structure.

Why aren’t other common aluminum series the best aluminum alloy for heat sink use?

• 2xxx and 7xxx Series (High Strength Alloys): While alloys like 2024 (Al-Cu) and 7075 (Al-Zn-Mg) are known for their very high strength, they generally have significantly lower thermal conductivity (often in the 120-150 W/m·K range). This is due to their higher content of alloying elements like copper and zinc, which impede heat flow. Their higher material cost and lower thermal performance make them generally unsuitable for most heat sink applications unless their exceptional strength is an overriding design requirement.
• 5xxx Series (Marine Grade Alloys): Alloys like 5052 offer excellent corrosion resistance, particularly in saltwater environments, and good weldability. However, their thermal conductivities are typically similar to or slightly lower than 6061, without offering the same balance of extrudability that is ideal for fine-finned heat sinks.

Therefore, for the majority of extruded heat sink applications where efficient thermal dissipation and complex shapes are required, 6063 often emerges as the primary candidate for the best aluminum alloy for heat sink designs. It provides an optimal blend of high thermal conductivity, excellent formability, good surface finish, and adequate strength. Alloy 6061 serves as a robust and common alternative when the mechanical demands on the heat sink are higher. The final choice often comes down to a detailed analysis of the specific application’s thermal, mechanical, and cost requirements.

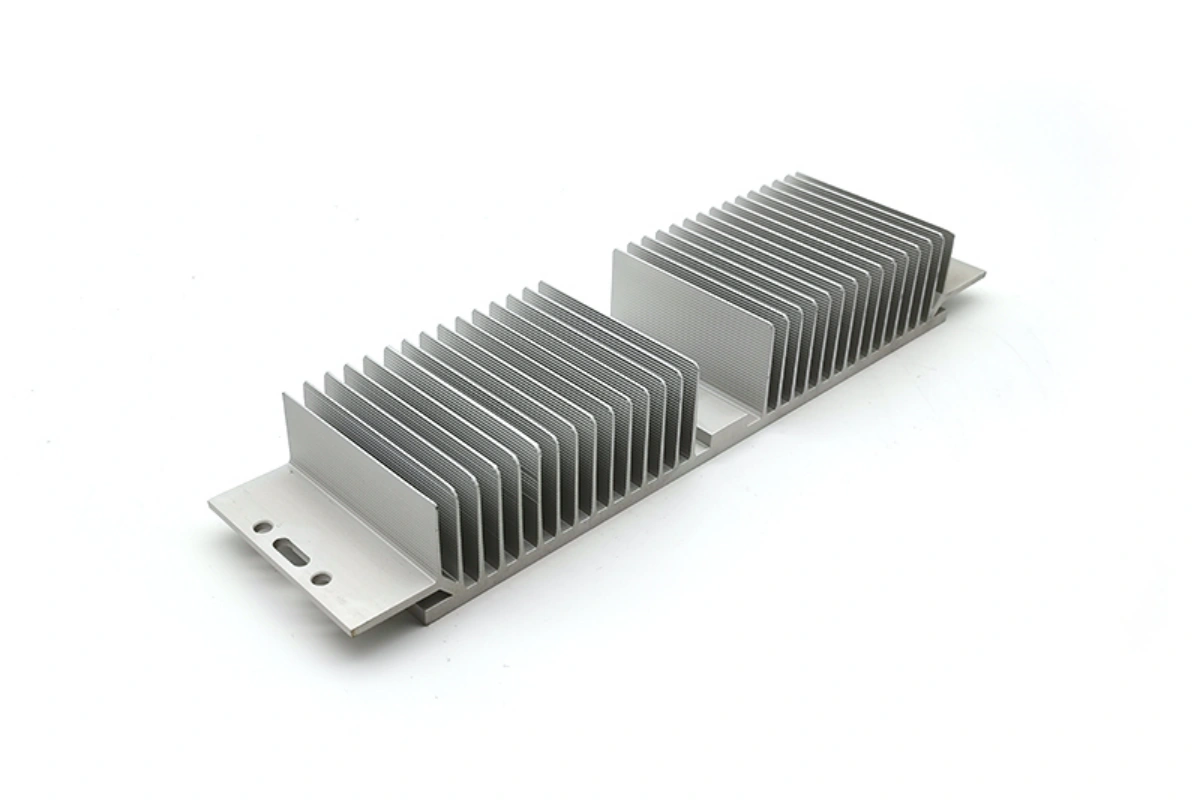

How does thermal conductivity affect best aluminum alloy for heat sink?

Is a small difference in thermal conductivity really that important when choosing an alloy for a heat sink? When it comes to efficiently cooling sensitive electronics, even seemingly minor variations in this key material property can significantly impact the overall cooling effectiveness. I’ve seen this make a real difference in final product performance and reliability.

From my experience in optimizing thermal designs for various clients at ALUT, thermal conductivity directly dictates how quickly and efficiently an aluminum alloy can draw heat away from the heat-generating source and spread it across the entire heat sink body. A higher thermal conductivity value means a more efficient material, directly impacting whether an aluminum alloy is considered the best aluminum alloy for heat sink performance, especially in high-power or space-constrained applications.

Thermal conductivity, denoted by the symbol ‘k’ and typically measured in Watts per meter-Kelvin (W/m·K), is arguably the single most important intrinsic material property for a heat sink. It quantifies the rate at which heat energy is transferred by conduction through a given material. For a heat sink to perform its function effectively, it must rapidly conduct heat from the relatively small, hot contact area with the electronic component (e.g., a CPU die, LED chip) to the much larger surface area of its fins. Once the heat is spread to the fins, it can then be dissipated to the surrounding cooler environment (usually air) primarily through convection and, to a lesser extent, radiation.

The Journey of Heat and the Critical Role of Conductivity

1. Heat Source Interface: Heat is generated by the electronic component. This heat needs to move efficiently into the base of the heat sink. The thermal resistance at this interface (often managed with thermal interface materials like grease or pads) is critical, but beyond that, the material of the heat sink base must quickly absorb this heat.
2. Spreading Resistance in the Base: Once heat enters the heat sink base, a material with high thermal conductivity will allow this heat to spread out laterally across the base more quickly and uniformly. This reduces “hot spots” directly above the heat source and ensures that all fins receive heat more evenly. If the base material has poor conductivity, heat will concentrate near the source, making the fins further away less effective.
3. Conduction Along the Fins: Heat then needs to travel from the base up along the length of the fins. Again, high thermal conductivity in the fin material ensures that heat is efficiently transported from the fin root to the fin tip. This maintains a higher average fin temperature, which in turn increases the rate of convective heat transfer to the air. If conductivity is low, the fin tips will be much cooler than the base, reducing their effectiveness. This is why choosing the best aluminum alloy for heat sink design with good ‘k’ is vital.

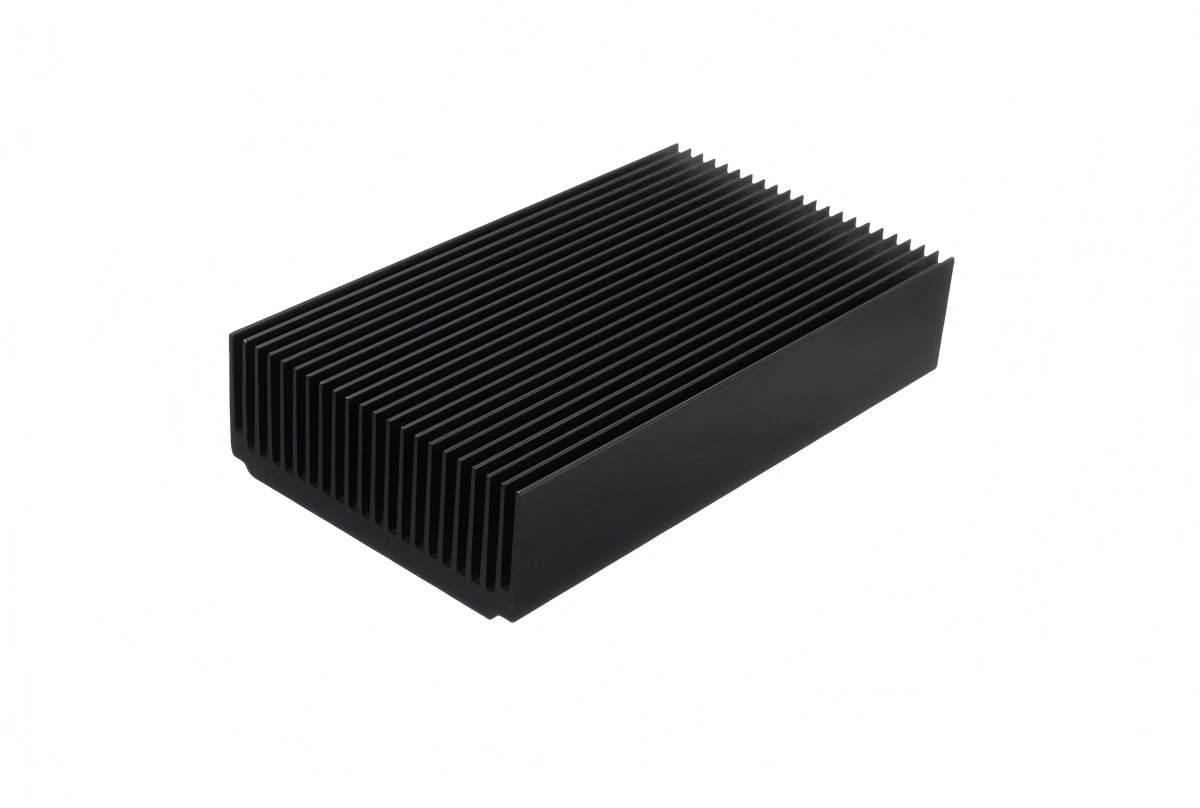

Impact of Varying Thermal Conductivity Values

Let’s consider two aluminum alloys with different ‘k’ values:

• Alloy A (e.g., 6063-T5): k ≈ 200 W/m·K
• Alloy B (e.g., a lower-conductivity casting alloy): k ≈ 120 W/m·K

If identical heat sink geometries are made from these two alloys and subjected to the same heat load:

• Heat Spreading: Alloy A will spread heat across its base and along its fins much more effectively than Alloy B.
• Temperature Gradient: Alloy A will exhibit a lower temperature difference between the heat source contact point and the fin tips. Alloy B will have a steeper gradient, meaning its fin tips are much cooler and thus less efficient at dissipating heat.
• Overall Thermal Resistance: The heat sink made from Alloy A will have a lower overall thermal resistance (measured in °C/W – degrees Celsius per Watt). This means for a given heat load, the heat-generating component will operate at a lower temperature when cooled by the Alloy A heat sink.

This difference becomes more pronounced as the heat load increases or as the heat sink geometry becomes more complex (e.g., longer fins, denser fin packing). Therefore, even a 20-30% difference in thermal conductivity can lead to a noticeable difference in component operating temperature, which directly affects performance, reliability, and lifespan. This is why a high ‘k’ value is a primary criterion when selecting the best aluminum alloy for heat sink solutions.

Here’s a table illustrating typical thermal conductivities:

This clearly shows why aluminum alloys, particularly those with k > 150 W/m·K, are preferred over steels or plastics for thermal management.

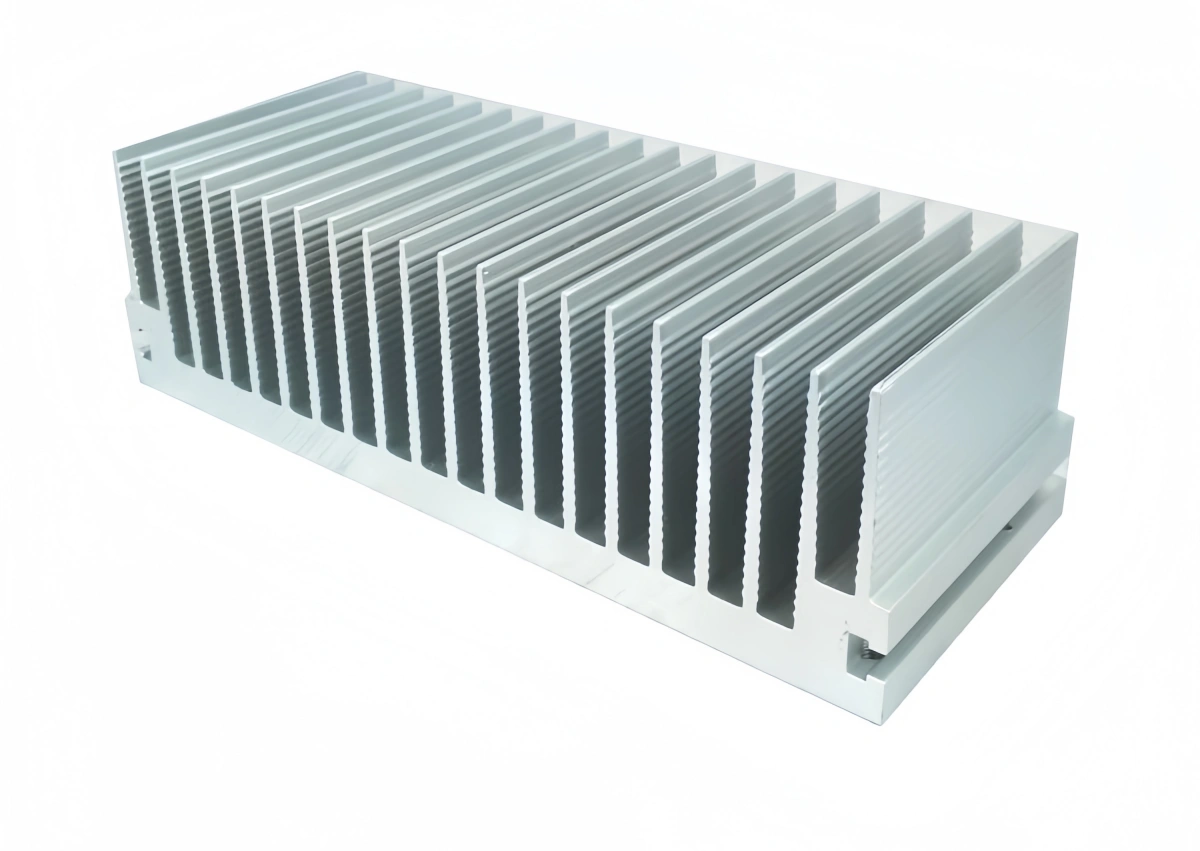

Are 6061 or 6063 the best aluminum alloy for heat sink?

Facing the common dilemma: 6061 or 6063 for your heat sink? Both are popular, but subtle differences can make one a better fit for your specific needs. I often guide clients through this exact decision.

**From my manufacturing perspective at ALUT, while both 6061 and 6063 are excellent choices, I often recommend 6063 as the slightly better, and often considered the overall best aluminum alloy for heat sink designs if maximum extrudability for complex fins and a superior surface finish are priorities, as it also has slightly higher thermal conductivity. However, 6061 is superior if the heat sink requires higher mechanical strength or toughness.

Aluminum alloys 6061 and 6063 are two of the most widely used extrudable alloys in the 6xxx series (Aluminum-Magnesium-Silicon). Both are heat-treatable and offer a good combination of properties, making them frequent candidates for the best aluminum alloy for heat sink manufacturing. However, they have distinct characteristics that make them more or less suitable depending on the specific requirements of the thermal solution.

Aluminum Alloy 6063

• Composition: Primarily alloyed with magnesium (Mg) and silicon (Si). It has a slightly lower percentage of these alloying elements compared to 6061.
• Wärmeleitfähigkeit: Generally higher than 6061. Typically, 6063-T5 temper has a thermal conductivity around 200-218 W/m·K. This slight edge in thermal conductivity can be beneficial in high-performance cooling applications.

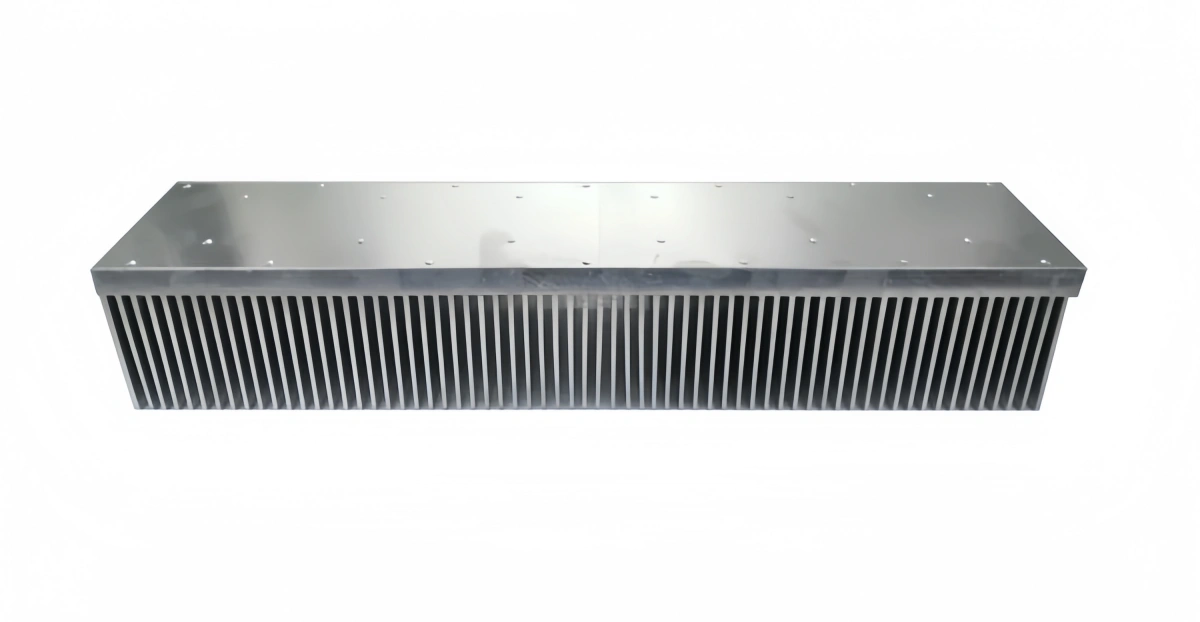

• Extrudierbarkeit: Excellent. This is a major advantage of 6063. It flows more easily through complex extrusion dies, allowing for the creation of thinner fins, more intricate profiles, and tighter dimensional tolerances. This means designers can achieve higher surface area to volume ratios, which is crucial for efficient convective cooling. This feature often makes it a top choice when considering the best aluminum alloy for heat sink fabrication.
• Mechanical Strength: Moderate. Its yield strength and tensile strength are lower than 6061. Common tempers are T5 and T6. For most heat sinks that are not load-bearing, its strength is perfectly adequate.
• Oberfläche: Takes anodizing exceptionally well, producing a smoother and more aesthetically pleasing surface finish than 6061. This is important for visible heat sinks or those requiring specific cosmetic appearances.
• Schweißeignung: Good.
• Korrosionsbeständigkeit: Very good.
• Typical Applications: Preferred for custom heat sinks with complex fin structures, LED lighting heat sinks, electronics enclosures with integrated cooling fins, and architectural applications where finish is important.

Aluminum Alloy 6061

• Composition: Also alloyed with magnesium and silicon, but generally in slightly higher proportions than 6063, and often with a small amount of copper.
• Wärmeleitfähigkeit: Good, but typically lower than 6063. For 6061-T6 temper, it’s around 167-180 W/m·K.
• Extrudierbarkeit: Good, but not as good as 6063. It’s more resistant to flow, so achieving very thin or highly complex fins can be more challenging or costly.
• Mechanical Strength: Significantly higher than 6063. Alloy 6061 in the T6 temper offers an excellent strength-to-weight ratio, making it a true structural alloy. Its yield and tensile strengths are considerably greater.
• Oberfläche: Good, but generally does not achieve the same high-quality aesthetic finish after anodizing as 6063.
• Schweißeignung: Very good.
• Korrosionsbeständigkeit: Good.
• Typical Applications: The best aluminum alloy for heat sinks that also serve a structural purpose requires greater robustness, needs to withstand vibration or impact, or have threaded holes requiring higher material strength. Common in industrial equipment, automotive applications, and structural components that also dissipate heat.

Direct Comparison Table: 6063 vs. 6061 The Best Aluminum For Heat Sinks

Conclusion for the Comparison:
If the primary goal is to create a heat sink with the most intricate fin design possible to maximize surface area for superior thermal performance, and if the heat sink does not bear significant mechanical loads, then 6063 is generally the best aluminum alloy for heat sink choice. Its slightly higher thermal conductivity and superior extrudability are key advantages.

However, if the heat sink needs to be very strong, support other components, or withstand harsh physical conditions, then 6061-T6 would be the more appropriate choice, even with its slightly lower thermal conductivity. The decision often involves balancing these thermal and mechanical trade-offs against the specific demands of the application.

Schlussfolgerung

Choosing the best aluminum alloy for heat sink designs involves balancing thermal conductivity, extrudability, strength, and cost. Alloys like 6063 and 6061 often provide the optimal solution for effective thermal management.
