Unveiling the Amazing Power of Extruded Heat Sinks?

Are your devices suffering from damaging heat buildup? Standard cooling methods often fall short, leading to failure. I know effective thermal management is absolutely critical for reliability.

From my experience manufacturing these vital components at ALUT, I can tell you extruded heat sinks offer powerful thermal solutions. We achieve this by forcing heated aluminum through a custom-designed die, creating intricate finned profiles that vastly increase surface area for superior heat dissipation from critical electronic components.

These aren’t just simple metal parts; they are engineered thermal management devices. Understanding their design, performance, and applications is key to leveraging their cooling capabilities effectively. Let’s explore what makes extruded heat sinks a cornerstone of modern electronics cooling.

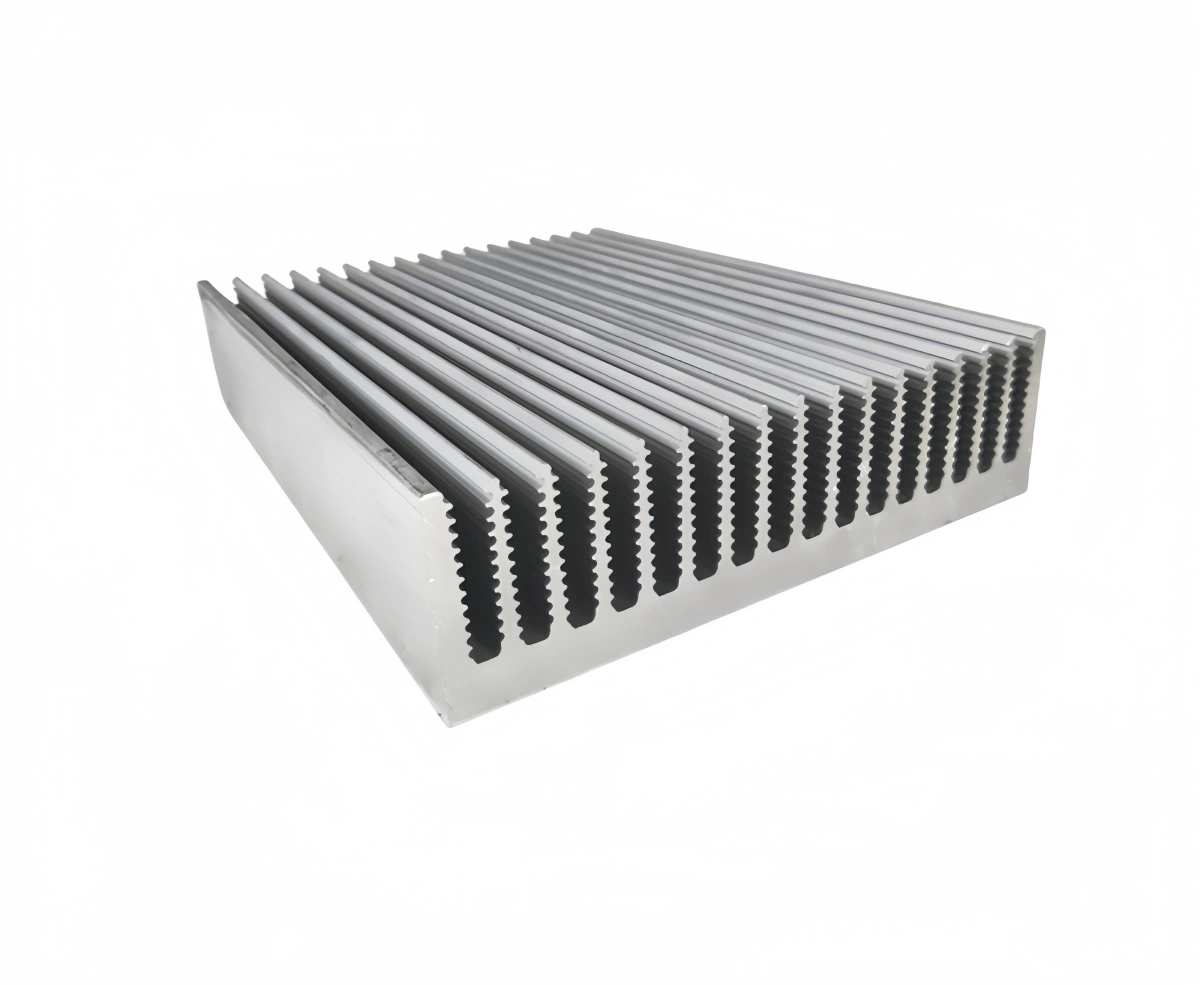

What fin types do extruded heat sinks have?

Do all extruded heat sinks look the same with just straight fins? You might be missing out on optimized cooling if you think so. Understanding fin variations helps select the best design.

In my role overseeing the production of various extruded heat sinks at ALUT, I know that while straight fins are most common due to ease of manufacturing, we also produce designs like flared or splayed fins. We can even create interlocking profiles that allow for much larger heat sink assemblies, all achieved through the versatile extrusion process.

The beauty of the aluminum extrusion process is its ability to create a wide variety of continuous linear shapes, which directly translates into diverse fin designs for extruded heat sinks. While all aim to maximize surface area for heat dissipation, different fin geometries can offer nuanced performance benefits depending on the airflow conditions and application. Here are the primary fin types you’ll encounter with extruded heat sinks:

Straight Fin Design

• Beschreibung: This is the most prevalent and classic design for extruded heat sinks. It features multiple straight, parallel fins extending perpendicularly from a flat base.
• Characteristics:
  • Relatively simple and cost-effective to extrude.
  • Offers good thermal performance, especially when airflow is directed parallel to the fins (either natural convection or forced air).
  • The height, thickness, and spacing of the fins are critical design parameters. Taller fins increase surface area but can have lower fin efficiency (tip is much cooler than base). Thinner fins allow more fins in a given width but can be more fragile. Optimal spacing prevents fins from overly restricting airflow.
• Common Use Cases: Widely used in almost all applications, from cooling LEDs and power supplies to CPUs and industrial electronics, where consistent parallel airflow can be reasonably expected. Many standard extruded heat sinks feature this design.

Flared Fin (or Splayed Fin) Design

• Beschreibung: In this design, the fins of the extruded heat sinks are not strictly parallel but are angled slightly outwards (splayed) from the base.
• Characteristics:
  • The flaring of the fins can reduce airflow resistance compared to densely packed straight fins.
  • This design may improve natural convection performance by encouraging more efficient air movement up and through the fin array, especially if the heat sink orientation is not perfectly vertical.
  • It can also be beneficial in situations with less directed or more turbulent forced airflow.
• Common Use Cases: Often chosen for applications where natural convection is the primary cooling mode or where airflow is not well-channeled. They can offer a slight performance edge in such scenarios over standard straight fin extruded heat sinks.

Interlocking or Dovetail Fin Design

• Beschreibung: These are not a fin type per se, but rather a design feature of the overall extruded heat sinks profile. The profiles are extruded with features like dovetail slots or other interlocking mechanisms along their edges.
• Characteristics:
  • This allows multiple individual extrusions to be joined together side-by-side to create a much wider heat sink assembly than could be economically or practically produced as a single, monolithic extrusion.
  • It provides scalability for very high-power applications needing extensive surface area.
• Common Use Cases: Used in building large extruded heat sinks for high-power industrial equipment, power inverters, large uninterruptible power supplies (UPS), and other applications where significant heat loads must be managed.

While the extrusion process excels at creating these linear fin patterns, it’s worth noting that “pin fin” heat sinks (with arrays of round or elliptical pins) are generally not made by extrusion but rather by processes like forging, casting, or machining, though some very specialized techniques might achieve pin-like features. For true extruded heat sinks, straight and flared fins are the mainstays.

The choice of fin type for extruded heat sinks depends on a thermal analysis considering the heat load, airflow conditions, space constraints, and cost targets.

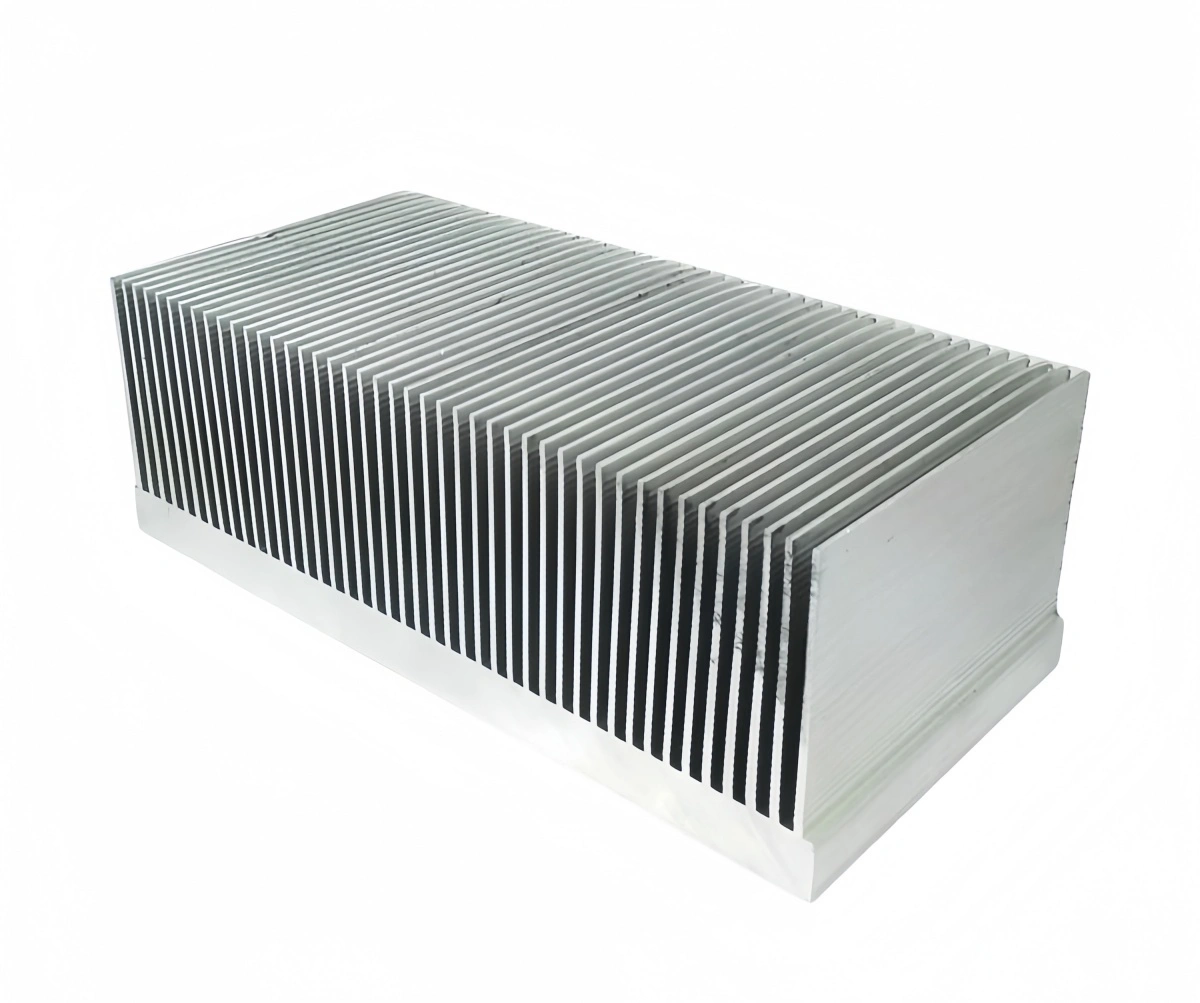

What affects extruded heat sinks performance?

Is your device still running too hot despite using extruded heat sinks? Just having a finned aluminum block isn’t enough; many factors influence its actual cooling power. I’ve seen how overlooking these details leads to poor results.

From my engineering and manufacturing experience at ALUT, the thermal performance of extruded heat sinks is critically affected by a combination of its material properties (like aluminum’s thermal conductivity), its physical design (especially total surface area and fin efficiency), the quality of the thermal interface with the heat source, and crucially, the characteristics of the airflow (natural or forced) over its surfaces.

The primary function of extruded heat sinks is to facilitate the transfer of thermal energy from a heat-generating component (like a chip or LED) to the cooler ambient environment, primarily through convection and radiation. The effectiveness of this process, often measured by the heat sink’s thermal resistance (in °C/W – a lower value means better performance), depends on a complex interplay of several factors:

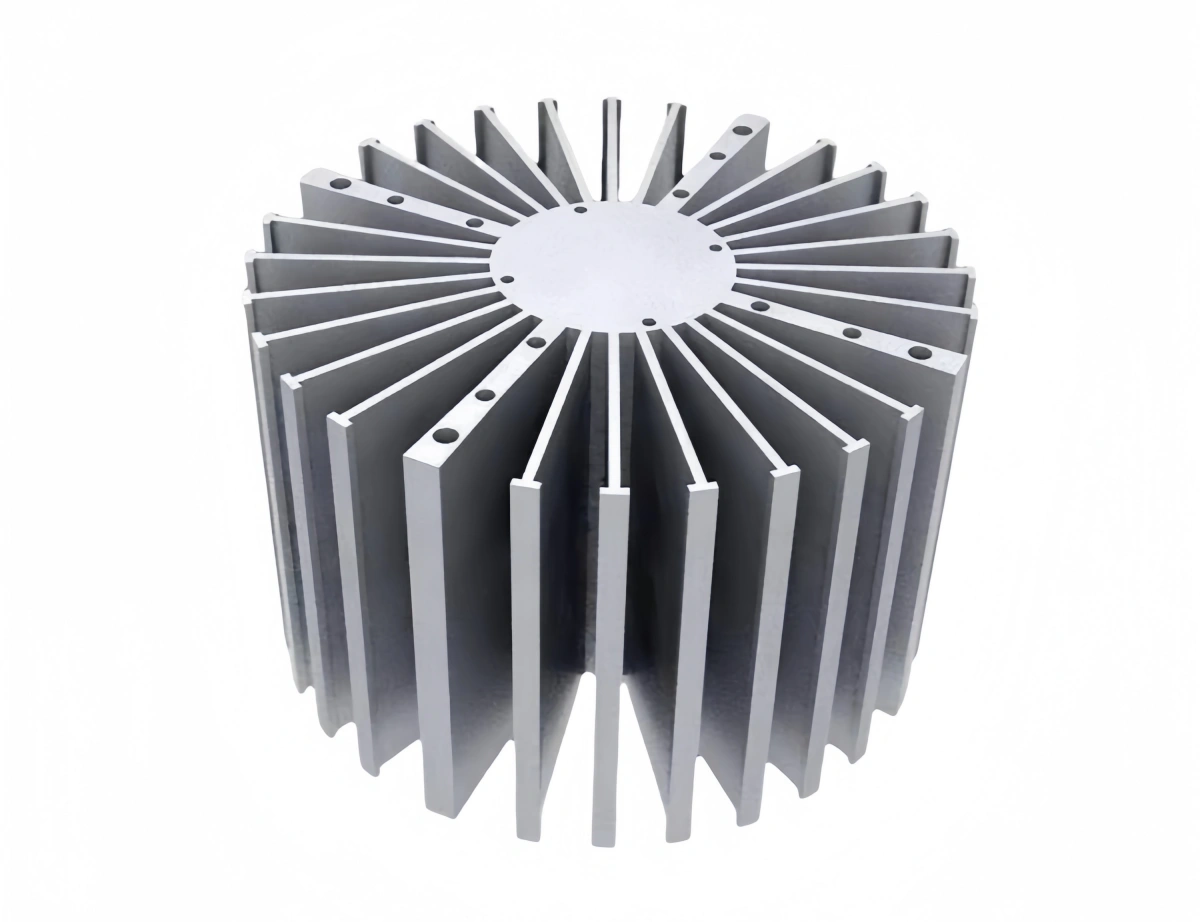

1. Material Properties

• Wärmeleitfähigkeit: Aluminum alloys commonly used for extruded heat sinks (e.g., 6063, 6061) have good thermal conductivity (around 200-210 W/mK). This property ensures that heat absorbed at the base quickly spreads throughout the fins, maximizing the effective heat transfer surface. If conductivity is poor, the fin tips remain too cool to dissipate heat efficiently.
• Emissivity (for Radiation): The ability of the surface to radiate heat. Black anodized surfaces have higher emissivity than bare shiny aluminum, making them better at radiating heat, especially in natural convection scenarios.

2. Physical Design – Surface Area and Fin Efficiency

• Total Surface Area: The more exposed surface area the extruded heat sinks have (base + all fin surfaces), the more heat they can potentially transfer to the surrounding air. This is why fins are used – to dramatically increase this area compared to a simple flat plate.
• Fin Design (Height, Thickness, Spacing):
  • Height: Taller fins increase surface area but can lead to lower “fin efficiency” if the heat doesn’t conduct well to the tip.
  • Thickness: Thicker fins conduct heat better to their tips but mean fewer fins in a given width. Thinner fins allow more fins but might be less efficient conductors and more fragile.
  • Spacing: Optimal spacing is crucial. If fins are too close, they restrict airflow between them (increasing pressure drop for forced air, or hindering natural convection). If too far apart, surface area density is reduced. There’s a sweet spot for different airflow conditions.
• Base Thickness: A sufficiently thick base on the extruded heat sinks helps spread heat efficiently from a concentrated heat source to the base of all the fins.

3. Airflow (Convection)

This is often the most significant factor influencing the performance of extruded heat sinks.

• Natural Convection: Relies on the principle that warmer air is less dense and rises, drawing cooler air to replace it. Performance is very sensitive to the orientation of the extruded heat sinks (vertical fins are usually best to allow unimpeded upward flow) and the amount of open space around it.
• Forced Convection: Using a fan to actively blow air across the fins dramatically increases the heat transfer coefficient (h), leading to substantially better cooling. Higher air velocity generally improves performance, but extremely high velocities can lead to excessive noise and power consumption from the fan, and very dense fin packs can create high backpressure. The design of the extruded heat sinks should complement the fan’s characteristics.

4. Thermal Interface Material (TIM)

• Interface Resistance: No two solid surfaces are perfectly flat. When a heat source is mounted to the base of extruded heat sinks, microscopic air gaps exist at the interface. Air is a poor thermal conductor, creating a significant barrier to heat flow (thermal interface resistance).
• TIM’s Role: A Thermal Interface Material (TIM) – such as thermal grease, thermal pads, or phase change materials – is applied between the component and the heat sink base. The TIM fills these air gaps with a material that has much better thermal conductivity than air, thereby reducing interface resistance and improving heat transfer into the extruded heat sinks. The choice and proper application of the TIM are critical.

5. Ambient Environment

• Ambient Temperature (T_ambient): The temperature of the air surrounding the extruded heat sinks. Heat transfer is driven by the temperature difference (ΔT) between the heat sink surface and the ambient air. A higher ambient temperature reduces this ΔT, making the heat sink less effective.
• Altitude: At higher altitudes, air density is lower, which reduces convective heat transfer efficiency.

Optimizing the performance of extruded heat sinks requires a holistic approach, considering all these factors in the context of the specific application’s thermal load and operating environment. Often, thermal simulation software (CFD analysis) is used to predict and optimize performance before manufacturing.

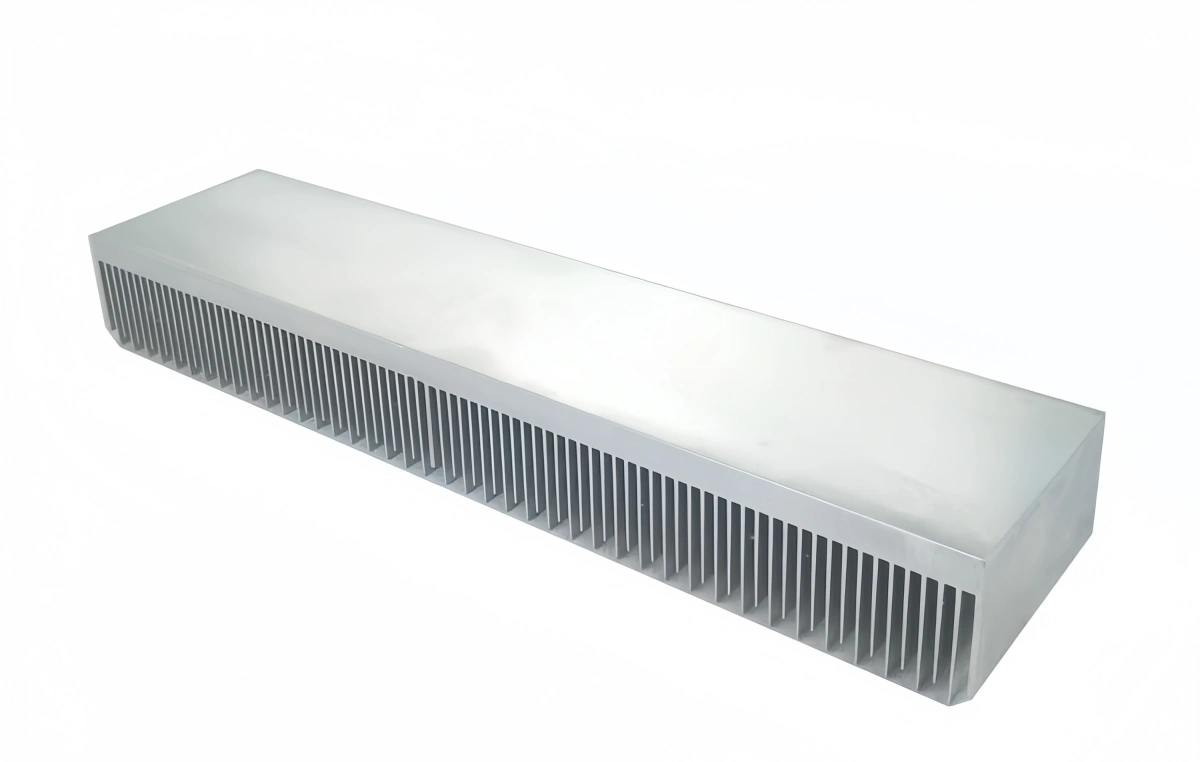

Where are extruded heat sinks commonly used?

Are you wondering where these workhorse cooling components actually get used? You might be surprised by just how many everyday devices and industrial systems rely on extruded heat sinks to keep things running smoothly. Their effectiveness makes them a go-to solution.

Based on the vast array of industries ALUT supplies with extruded heat sinks, I see them commonly used in virtually all types of electronic equipment. Key areas include LED lighting fixtures, computer processors (CPUs/GPUs), power supplies, audio amplifiers, motor controllers, telecommunications gear, and automotive electronics – essentially, wherever efficient and cost-effective thermal management is required.

The combination of good thermal performance, design flexibility through extrusion, light weight, and cost-effectiveness makes extruded heat sinks a ubiquitous solution for thermal management across a wide spectrum of industries and applications. Here are some of the most prominent areas where you’ll find extruded heat sinks hard at work:

Electronics and Computing Systems

• Central Processing Units (CPUs) & Graphics Processing Units (GPUs): Almost all desktop computers, servers, workstations, and gaming consoles utilize extruded heat sinks, often paired with fans, to cool these high-power processors. The ability to create dense fin arrays is crucial here.
• Motherboard Components: Chipsets, Voltage Regulator Modules (VRMs), and other supporting ICs on motherboards frequently employ smaller, dedicated extruded heat sinks.
• Solid State Drives (SSDs): Particularly high-performance NVMe SSDs can generate significant heat during operation, and many are now sold with or have aftermarket extruded heat sinks available to prevent thermal throttling.
• Network Equipment: Routers, switches, and other telecommunications hardware contain processors and interface chips that require reliable cooling, often provided by extruded heat sinks.

LED Lighting Industry

• High-Power LED Fixtures: LEDs are much more efficient than older lighting technologies, but they still convert a significant portion of electrical energy into heat. Effective thermal management using extruded heat sinks is absolutely critical for maintaining the LED’s lifespan, light output (efficacy), and color consistency. You’ll find them in streetlights, high bay lights, downlights, automotive headlamps, horticultural grow lights, and many other LED applications. Often, the fixture housing itself is designed as an extruded heat sinks.

Power Electronics and Control Systems

• Power Supplies: Switched-Mode Power Supplies (SMPS), AC/DC converters, and DC/DC converters use extruded heat sinks to cool power transistors (MOSFETs, IGBTs), rectifiers, and other heat-generating components.
• Audio Amplifiers: The power output stages of audio amplifiers can generate substantial heat, necessitating large extruded heat sinks to ensure performance and prevent overheating.
• Motor Controllers and Drives: Variable Frequency Drives (VFDs), servo drives, and other motor control systems use high-power semiconductors that require robust cooling solutions, frequently employing extruded heat sinks.
• Industrial Automation: Programmable Logic Controllers (PLCs), power distribution units, and other industrial control cabinet components often use them.

Automobil und Transport

• Electronic Control Units (ECUs): Modern vehicles have numerous ECUs managing engine, transmission, safety, and infotainment systems, many of which require cooling.
• LED Lighting Systems: As mentioned, automotive LED headlights, taillights, and interior lights use extruded heat sinks.
• Power Electronics for Electric/Hybrid Vehicles: Inverters, converters, and battery management systems in EVs and HEVs generate significant heat loads.

Here’s a table summarizing these uses for extruded heat sinks:

The versatility of the extrusion process allows for custom designs tailored to specific applications, making extruded heat sinks an incredibly adaptable and widely adopted thermal management solution.

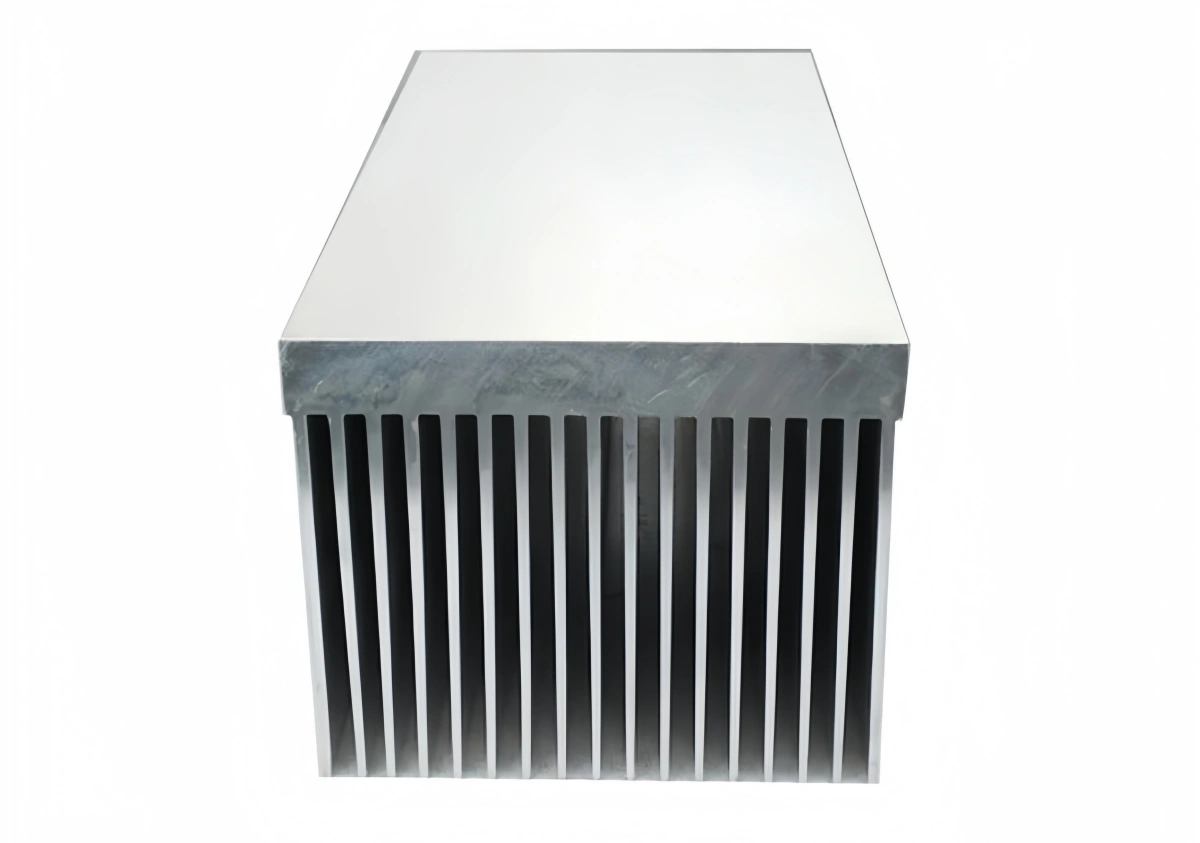

Are extruded heat sinks better than other types?

Facing a thermal challenge and wondering if extruded heat sinks are always the top choice? While highly effective and popular, it’s important to know they aren’t a universal solution. I often advise clients on the best heat sink type for their specific needs.

From my experience matching thermal solutions to applications at ALUT, I can say that extruded heat sinks offer an excellent balance of performance, cost, and design flexibility for a vast range of applications. However, whether they are “better” than other types like bonded fin, skived fin, or forged heat sinks depends entirely on the specific thermal requirements, airflow conditions, space constraints, and budget of the project.

Extruded heat sinks are the most common type for very good reasons, primarily their cost-effectiveness and the ability to create complex, integral fin structures efficiently. However, other manufacturing methods produce heat sinks with different characteristics, which might make them “better” for certain niche or high-performance scenarios. Let’s compare:

Advantages of Extruded Heat Sinks

• Cost-Effectiveness: For medium to high production volumes, extrusion is generally the most economical way to produce finned heat sinks. The tooling (die) cost is amortized over many parts.
• Good Thermal Performance: Offer good heat dissipation, especially when made from aluminum alloys like 6063, suitable for a wide range of power levels.
• Design Flexibility (for linear profiles): Can create intricate, continuous cross-sectional fin designs with good aspect ratios (fin height to thickness).
• Integral Structure: Fins and base are a single piece of material, ensuring excellent thermal contact between them (no interface resistance like in some assembled types).
• Lightweight (Aluminum): Aluminum’s low density makes them suitable for weight-sensitive applications.

Limitations of Extruded Heat Sinks

• Fin Aspect Ratio Limits: There are practical limits to how tall and thin fins can be reliably extruded. Extremely high aspect ratios or very dense fin packing can be challenging.
• Directional Cooling: Most effective when airflow is parallel to the fins. Less optimal for omnidirectional or impinging airflow compared to, say, pin fin designs.
• Size Limitations (for single piece): Very large heat sinks might need to be made from multiple interlocked extrusions or by other methods.

Comparison with Other Heat Sink Manufacturing Methods

So, are extruded heat sinks better?

• For many common applications requiring good thermal performance at a reasonable cost, yes, they are often the best overall choice. Their balance of properties is hard to beat.
• For extremely high heat flux or very compact spaces where maximum surface area density is needed, bonded fin or skived fin heat sinks might perform better, albeit usually at a higher cost.
• For omnidirectional airflow or specific pin-like structures, forged heat sinks might be superior.
• For very low-power, high-volume board-level cooling, stamped heat sinks can be the most economical.

The “best” heat sink is the one that meets the thermal, mechanical, spatial, and budgetary requirements of your specific application. Extruded heat sinks provide an excellent, versatile, and often optimal starting point for a vast number of thermal challenges.

Schlussfolgerung

Extruded heat sinks are powerful, cost-effective cooling solutions. Their diverse fin types, combined with aluminum’s properties, make them ideal for many applications when performance factors and design are carefully considered.
