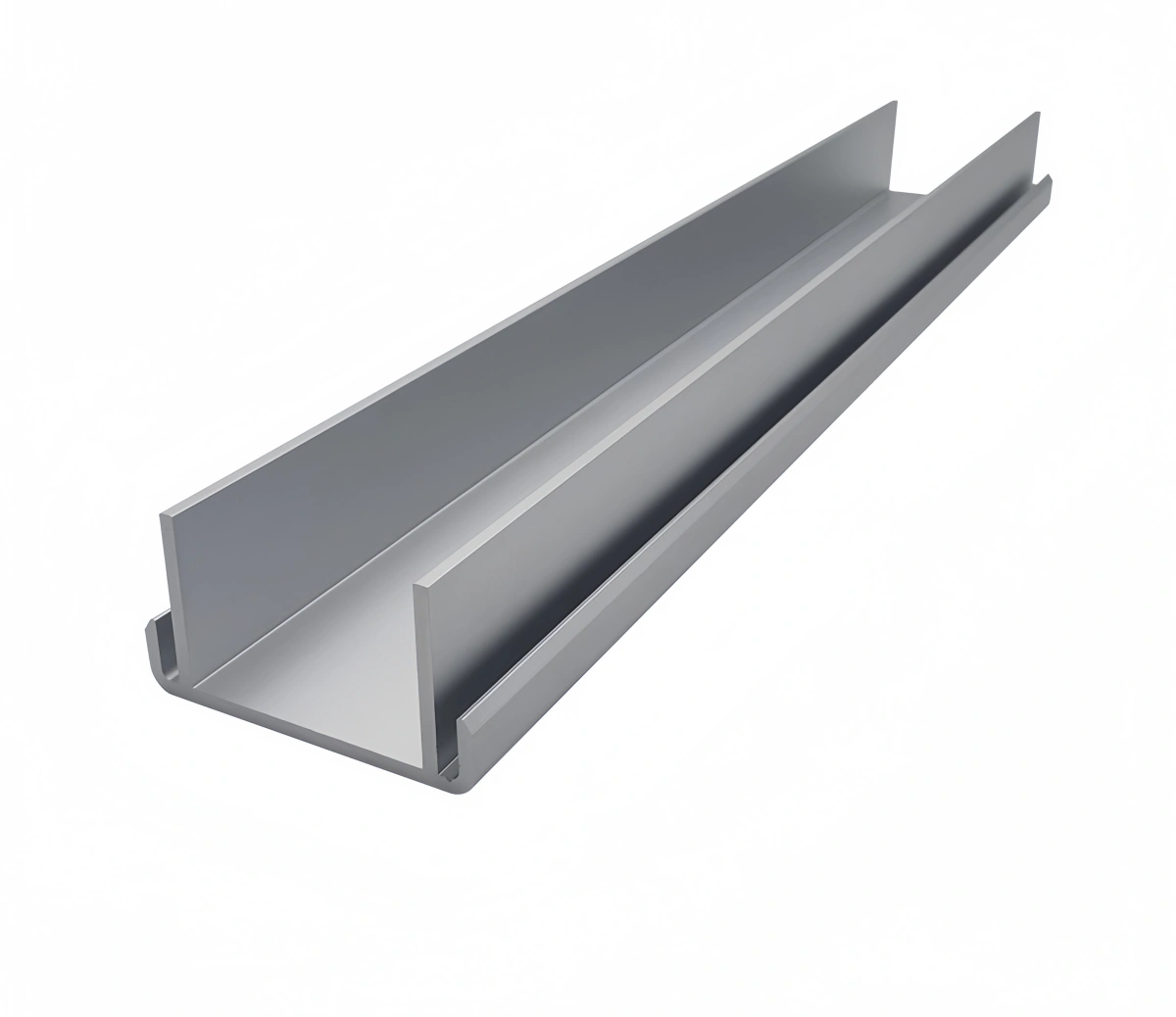

Amazing Versatility: Are Channel Aluminum Extrusion Profiles Your Project’s Secret Weapon?

Struggling to find the right structural or decorative solution? I’ve seen many projects transformed by the right channel aluminum extrusion profiles. Let’s explore their potential.

In my experience, channel aluminum extrusion profiles are incredibly versatile, offering solutions for everything from LED lighting to architectural trim and machine frames. I believe their strength, lightness, and customizability make them a secret weapon for many innovative designs.

You might be surprised at just how many ways these profiles can be used. Let’s dive deeper into where you’ll find them and what makes them so effective.

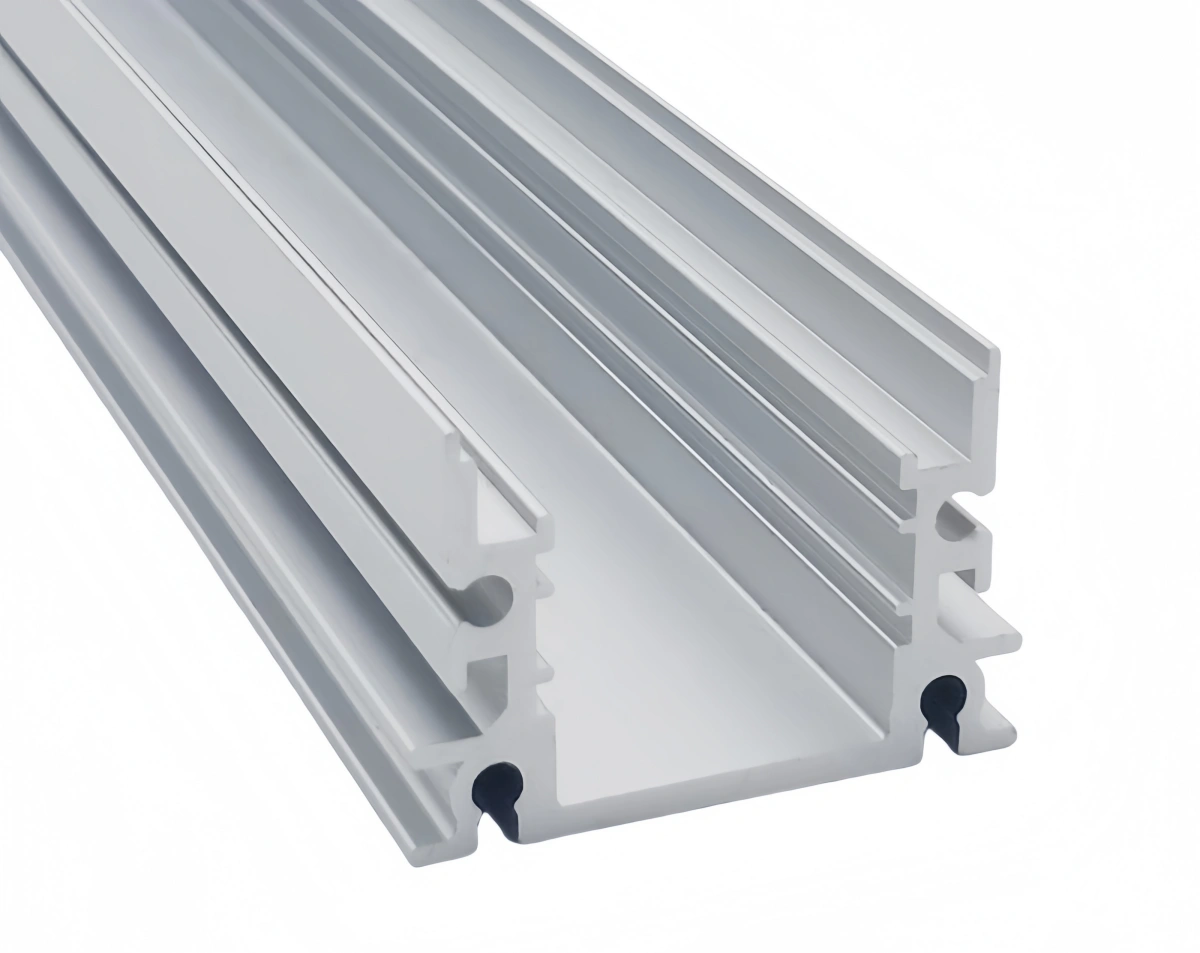

Where are channel aluminum extrusion profiles commonly used?

Ever wondered where those sleek aluminum channels appear? I see channel aluminum extrusion profiles everywhere, often hidden in plain sight, solving design challenges.

I frequently see channel aluminum extrusion profiles used in LED lighting fixtures, window and door frames, solar panel mounting, and machinery guards. Their adaptability makes them indispensable across many industries, from construction to electronics.

Channel aluminum extrusion profiles are true workhorses in modern design and manufacturing. Their unique shapes, like U-channels, C-channels, J-channels, and hat channels, lend themselves to a vast array of applications. At ALUT, we’ve manufactured these profiles for clients across many sectors, and I’m always impressed by their adaptability.

Bauwesen und Architektur

In the building industry, you’ll find channel aluminum extrusion profiles used extensively. They form the backbone of many window and door frames, providing strength and durability while being lightweight. They are also used in curtain wall systems, architectural trim for a clean, modern aesthetic, and even as railings or structural supports for facades. The ability to create custom channel aluminum extrusion profiles means architects can achieve very specific design visions.

Lighting Solutions

The lighting industry heavily relies on channel aluminum extrusion profiles, especially for LED strip lighting. These channels not only provide a neat housing for the LED strips but also act as heat sinks, dissipating heat and prolonging the life of the LEDs. They can be designed to incorporate diffusers for even light distribution, making them perfect for both residential and commercial lighting applications. We often produce custom channel aluminum extrusion profiles for lighting manufacturers seeking specific thermal performance and aesthetic qualities.

Electronics and Machinery

Inside electronic devices, you might find smaller channel aluminum extrusion profiles used as enclosures, chassis components, or heat sinks. In industrial settings, they are crucial for building machine frames, safety guards, and conveyor systems. T-slot channel aluminum extrusion profiles, for instance, allow for modular assembly, which is incredibly useful for creating adaptable workstations or machine structures.

Other Notable Applications

The versatility doesn’t stop there. Here’s a quick look at other common uses:

My team at ALUT works closely with purchasing managers and product designers to develop the precise channel aluminum extrusion profiles needed for their unique products. Whether it’s a standard U-channel or a complex, custom-designed profile for a new innovation, the application range is truly impressive. The inherent properties of aluminum, combined with the extrusion process, make these profiles an ideal solution across these diverse fields.

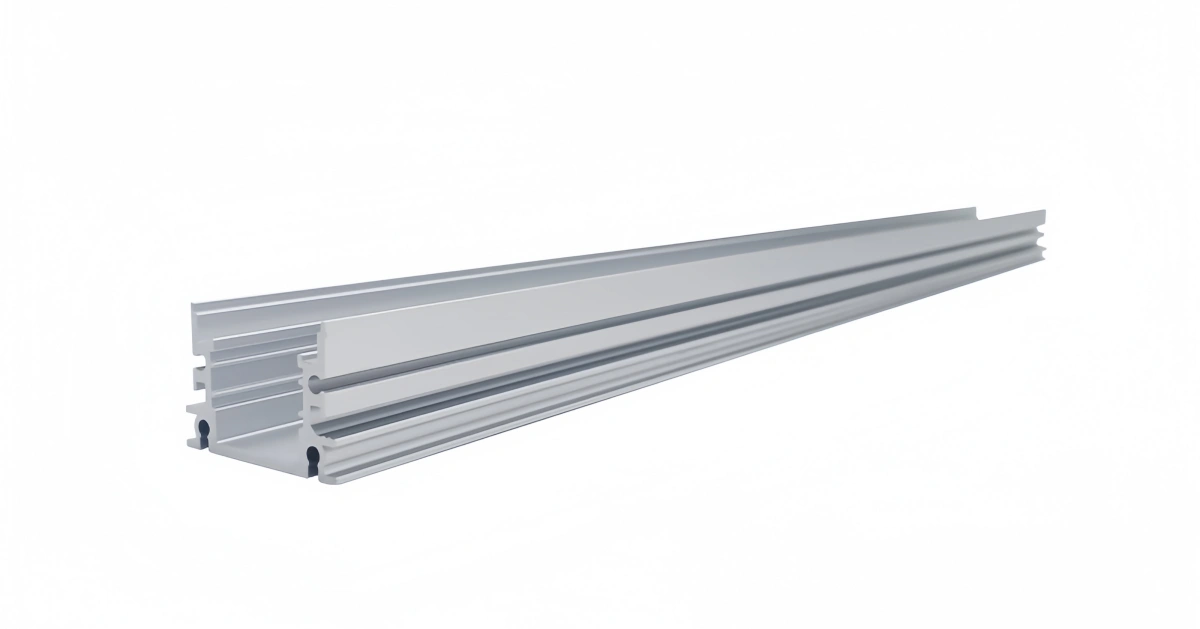

What benefits do channel aluminum extrusion profiles offer?

Looking for a material that ticks all the boxes? I always tell clients about the impressive benefits of channel aluminum extrusion profiles.

I believe the key benefits of channel aluminum extrusion profiles include their excellent strength-to-weight ratio, corrosion resistance, and design flexibility. These advantages, combined with cost-effectiveness, make them a superior choice for many projects.

When I talk to clients, especially purchasing managers from the US and Europe, about why they should consider channel aluminum extrusion profiles, the conversation always highlights a set of core advantages that make aluminum an outstanding choice. These aren’t just minor points; they are significant benefits that can impact product performance, longevity, and overall cost.

Lightweight Yet Strong

One of the most compelling benefits is aluminum’s excellent strength-to-weight ratio. Channel aluminum extrusion profiles are significantly lighter than steel channels of similar dimensions, yet they can be designed to offer substantial strength. This makes them easier to handle during manufacturing and installation, reduces shipping costs, and lessens the load on supporting structures. This is a huge plus for everything from automotive parts to large architectural installations.

Superior Corrosion Resistance

Aluminum naturally forms a protective oxide layer on its surface when exposed to air. This layer is very stable and prevents further corrosion, making aluminum inherently resistant to rust and degradation in many environments. For enhanced protection, especially in harsh conditions, or for aesthetic purposes, channel aluminum extrusion profiles can be anodized or powder-coated. At ALUT, we provide these finishing services, which many of our clients value for durability.

Unmatched Design Flexibility

The extrusion process itself offers incredible design freedom. We can create very complex cross-sectional shapes for channel aluminum extrusion profiles, tailored precisely to our clients’ needs. This means features like screw ports, snap-fit grooves for assembly, or intricate fin patterns for heat dissipation can be integrated directly into the profile. This level of customization is often difficult or more expensive to achieve with other materials and manufacturing methods.

Other Key Advantages

Here’s a comparison highlighting more benefits:

Furthermore, aluminum is a good conductor of heat, which is beneficial for channel aluminum extrusion profiles used in LED lighting or electronics enclosures. It’s also non-magnetic and non-sparking. And, importantly in today’s world, aluminum is highly recyclable without any loss of its inherent properties, making it an environmentally responsible choice. The combination of these benefits makes channel aluminum extrusion profiles a very attractive solution for many engineered products.

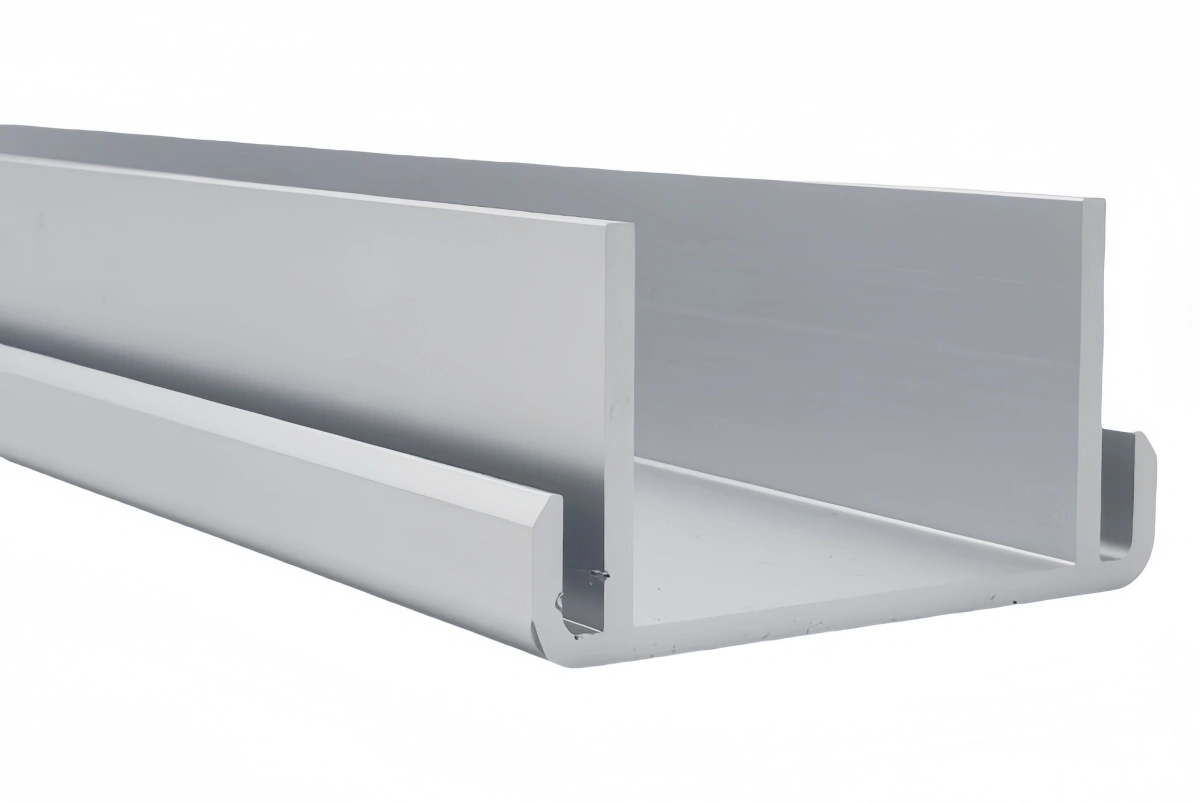

Which alloys suit channel aluminum extrusion profiles best?

Choosing the right material is key. I often guide clients on selecting the best aluminum alloys for their channel aluminum extrusion profiles.

From my experience, 6063 aluminum alloy is a top choice for many channel aluminum extrusion profiles due to its excellent extrudability and surface finish. For higher strength needs, I often recommend the 6061 alloy.

Selecting the correct aluminum alloy is a critical step in designing effective channel aluminum extrusion profiles. The choice depends heavily on the specific requirements of the application, such as the need for strength, corrosion resistance, surface finish quality, or ease of fabrication. At ALUT, we work with various alloys, but a few stand out for their suitability for channel extrusions.

The Popular Choice: 6063 Aluminum Alloy

The 6063 alloy is often my first recommendation for a wide range of channel aluminum extrusion profiles, especially for architectural applications and those where aesthetics are important.

• Excellent Extrudability: This is a major reason for its popularity. 6063 flows very well through complex extrusion dies, allowing us to create intricate channel shapes with tight tolerances.
• Superb Surface Finish: Profiles made from 6063 have a smooth, clean surface that is ideal for anodizing or powder coating. This results in a high-quality, visually appealing product. Many of the decorative channel aluminum extrusion profiles we produce for lighting and trim are made from 6063.
• Good Corrosion Resistance: Like all aluminum alloys, 6063 offers good resistance to corrosion.
• Moderate Strength: While not as strong as some other alloys, its strength is sufficient for many applications, including window frames, door frames, LED housings, and general trim.

For Strength and Structure: 6061 Aluminum Alloy

When an application demands higher mechanical strength and load-bearing capabilities, the 6061 alloy is an excellent choice for channel aluminum extrusion profiles.

• Higher Strength: 6061 offers significantly greater tensile and yield strength compared to 6063, especially after proper heat treatment (like T6 temper). This makes it suitable for structural components, machine frames, and applications subjected to higher stresses.
• Good Machinability and Weldability: It can be easily machined, drilled, tapped, and welded, offering versatility in post-extrusion fabrication.
• Good Corrosion Resistance: It also provides good resistance to corrosion.

Here’s a quick comparison of these two common alloys for channel aluminum extrusion profiles:

While 6063 and 6061 are the most common, other alloys like 6005A (offering a balance between the strength of 6061 and the extrudability of 6063) can also be used for specific channel aluminum extrusion profiles. My team at ALUT always discusses the application requirements with our clients in detail. This helps us recommend the optimal alloy to ensure the final product meets all performance, aesthetic, and cost targets. We ensure our purchasing manager clients understand these nuances to make the best sourcing decisions.

How are channel aluminum extrusion profiles manufactured?

Ever wondered how those intricate aluminum shapes are made? I’m always fascinated by the manufacturing process of channel aluminum extrusion profiles.

I oversee the manufacturing of channel aluminum extrusion profiles daily. The process involves heating an aluminum billet and forcing it through a shaped die using a powerful ram, much like squeezing toothpaste from a tube.

The creation of channel aluminum extrusion profiles is a precise engineering process that transforms a simple aluminum billet into a complex, functional shape. As a manufacturer, I’m involved in this process from die design to the final quality check. It’s a fascinating journey that combines heat, immense pressure, and careful control.

The Step-by-Step Extrusion Process

Here’s a breakdown of how we manufacture channel aluminum extrusion profiles at ALUT:

1. Die Design and Creation: It all starts with the die. This is a hardened steel tool with an opening precisely shaped to the desired cross-section of the channel (e.g., U-channel, C-channel, or a custom design). We work with our clients to design these dies, or they provide us with their existing die designs.
2. Knüppelvorbereitung: We use solid cylindrical logs of a specific aluminum alloy, called billets. These are cut to an appropriate length and then preheated in an oven to a temperature typically between 400°C and 500°C (750°F to 930°F). This heating doesn’t melt the aluminum but makes it soft and malleable.
3. The Extrusion Press: The heated billet is transferred to the extrusion press. A lubricant is often applied to the billet and the die.
4. Den Würfel durchdrücken: A powerful hydraulic ram applies immense pressure (ranging from 100 tons to 15,000 tons, depending on the press and profile size) to the billet. This forces the softened aluminum through the opening in the die. The aluminum emerges from the other side of the die as a continuous profile, having taken on the shape of the die opening. This is how various channel aluminum extrusion profiles get their distinctive shapes.
5. Cooling (Quenching): As the extrusion emerges, it is guided onto a run-out table and cooled. This cooling, or quenching, can be done with air or water sprays. The rate of cooling is critical for achieving the desired metallurgical properties and strength of the alloy.
6. Dehnen: Once cooled, the long extruded profile is gripped at both ends by a stretcher. It’s pulled to straighten it and to relieve internal stresses that may have built up during the extrusion and cooling process.
7. Cutting to Length: The straightened profile is then cut to specific lengths, usually standard mill lengths or custom lengths required by the client.

Post-Extrusion Treatments

After the main extrusion process, many channel aluminum extrusion profiles undergo further treatments:

• Aging (Heat Treatment): For alloys like 6061 and 6063, aging is crucial. This involves heating the profiles in an oven for a specific time at a controlled temperature (e.g., T5 or T6 temper). This process significantly increases the strength and hardness of the aluminum.
• Oberflächenveredelung: We offer various surface finishes, including mill finish (as extruded), anodizing (to increase corrosion resistance and allow coloring), powder coating (for a durable, colored finish), or polishing.
• Secondary Fabrication: ALUT also provides CNC machining (drilling, milling, tapping), precision cutting, punching, bending, and assembly services to deliver ready-to-use channel aluminum extrusion profiles or components.

Quality control is paramount at every stage, from checking the billet alloy to inspecting die dimensions, monitoring temperatures, and verifying the final profile dimensions and finish. This ensures that the channel aluminum extrusion profiles we deliver to our clients in the US, Canada, and Europe meet their exact specifications and quality expectations.

Schlussfolgerung

Channel aluminum extrusion profiles offer amazing versatility and benefits. For custom solutions and quality manufacturing, ALUT is your trusted partner. Contact us today!
