Unlocking Amazing Aluminum Extrusion Profiles?

Struggling with limited material options for your designs? Standard shapes often force compromises, impacting function or aesthetics. From my manufacturing background, I know selecting the right profile is key.

Based on my experience here at ALUT, amazing aluminum extrusion profiles are incredibly versatile shapes we create by pushing heated aluminum through a die. They offer remarkable lightweight strength, excellent corrosion resistance, and design flexibility, ranging from simple standard shapes to complex custom designs tailored exactly to your needs.

These extruded components are fundamental to countless modern products, but understanding the options – standard versus custom, achievable shapes, strength factors, and common types – is crucial for making the best choice. Let’s explore these aspects.

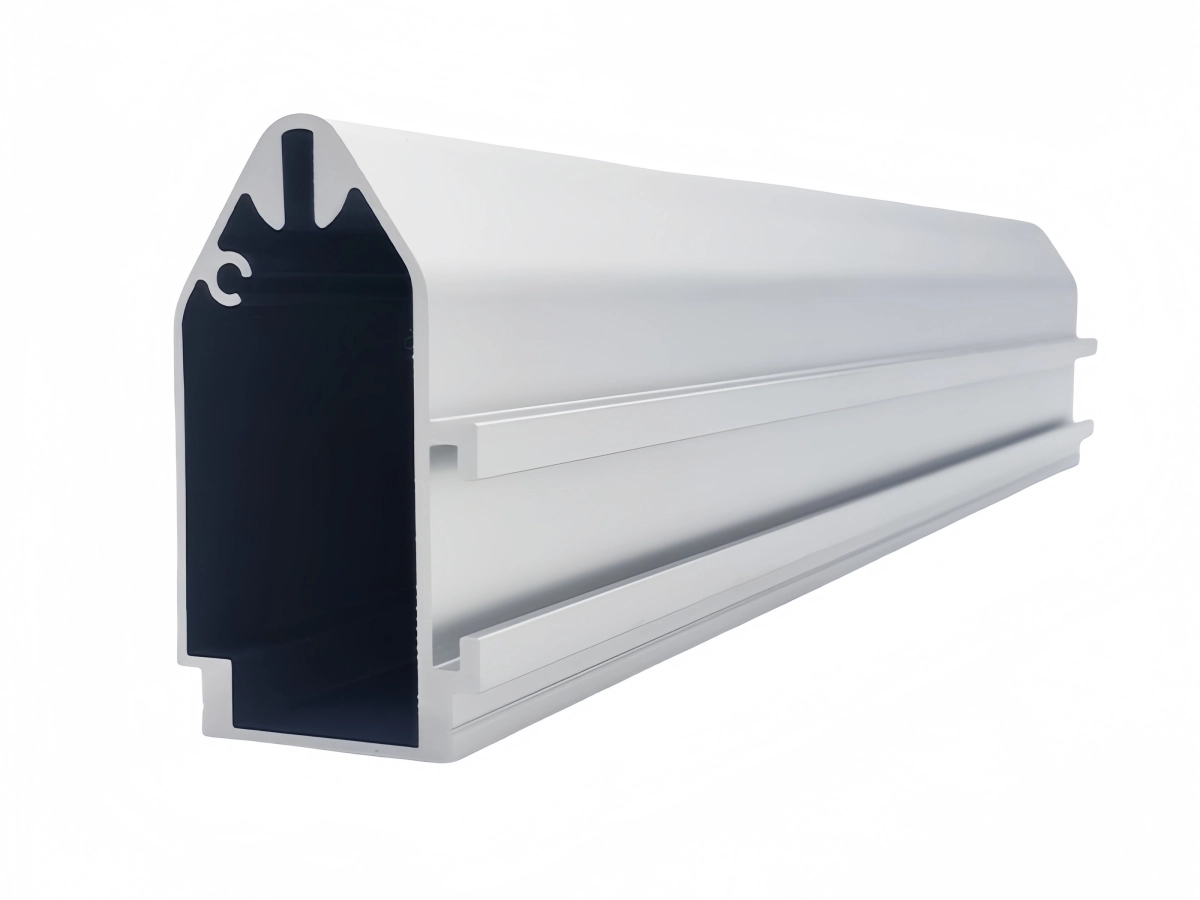

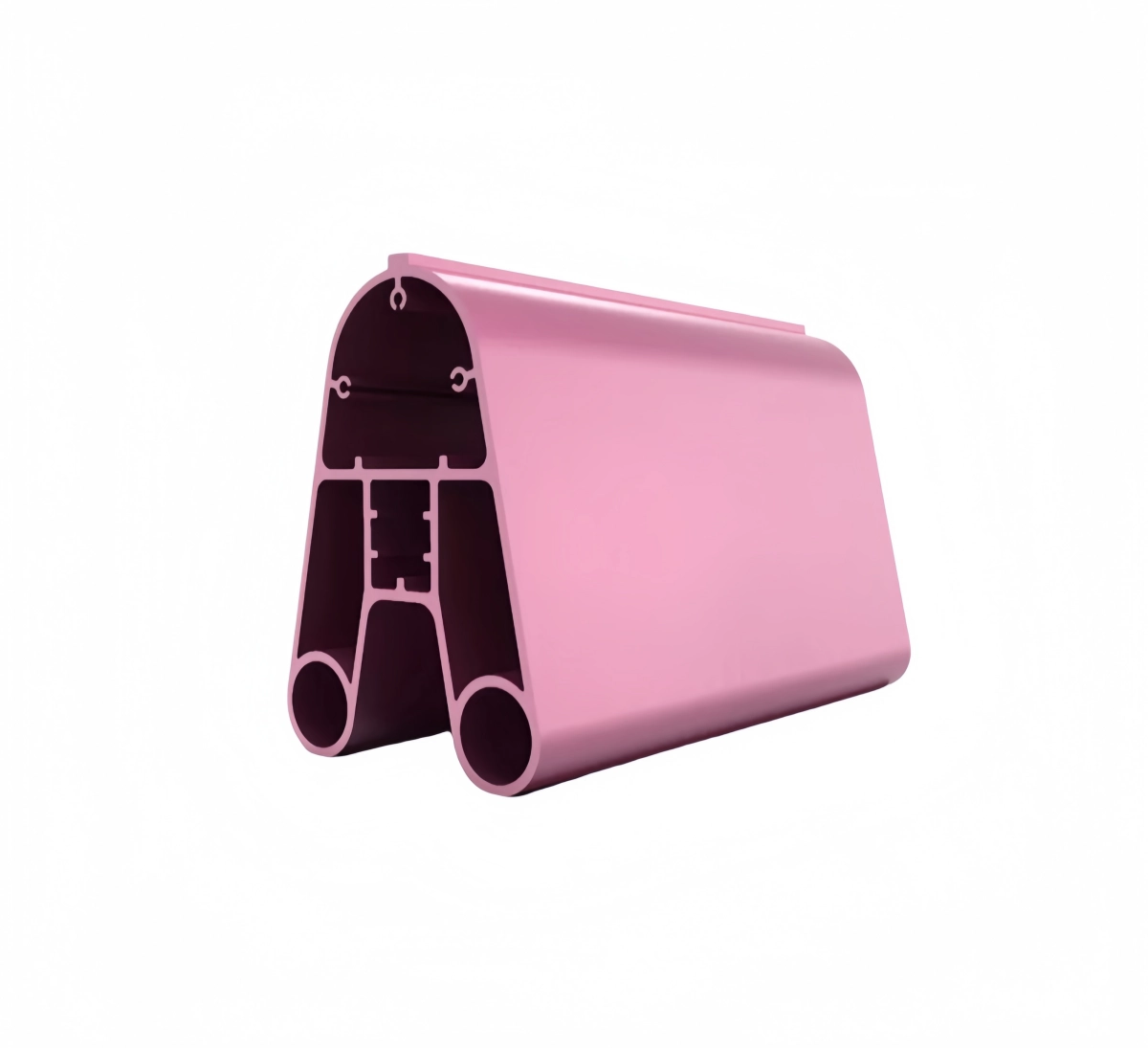

Standard vs custom: what differs for aluminum extrusion profiles?

Confused about whether a standard or custom profile is right for your project? Choosing incorrectly can lead to unnecessary costs or design limitations. Let me clarify the fundamental differences based on my experience.

From my perspective producing both types at ALUT, the core difference lies in the die. Standard aluminum extrusion profiles use common, pre-existing dies for basic shapes like angles or tubes, offering quick availability and lower initial cost. Custom profiles require a unique, newly created die specific to your design, enabling complete design freedom but involving an upfront tooling investment.

The decision between using standard or custom aluminum extrusion profiles significantly impacts project timelines, costs, and design possibilities. Understanding the distinct characteristics of each is vital for effective sourcing and product development.

Standard Aluminum Extrusion Profiles

These are the off-the-shelf options readily available from many suppliers or produced using commonly held dies.

• Die Origin: Made using existing dies owned by the extruder or widely available industry-standard die designs. No new tooling cost for the buyer.
• Shapes: Typically limited to simple, common geometries like round tubes, square tubes, rectangular tubes, angles (L-shapes), channels (U-shapes), T-shapes, Z-shapes, and flat bars. Dimensions are standardized.
• Availability: Often stocked by distributors or extruders, leading to shorter lead times for delivery.
• Kosten: Lower initial cost as there’s no need to pay for die design and manufacturing. The price primarily reflects material and extrusion time.
• Suitability: Best for general structural applications, simple frames, prototypes where exact shape isn’t critical, or situations where speed and low initial cost are paramount. They often require secondary machining if precise features are needed.

Custom Aluminum Extrusion Profiles

These are designed and produced specifically for one customer’s unique application.

• Die Origin: Require the design and manufacture of a brand new, proprietary steel die based on the customer’s drawings. The customer typically pays a one-time tooling charge for this die.
• Shapes: Offer virtually unlimited design freedom. Can achieve complex solid, hollow, or semi-hollow shapes with intricate details, integrated features (like screw bosses, snap-fits, heat sink fins), and non-standard dimensions tailored precisely to the application.
• Availability: Made to order. Lead times are longer initially due to the time needed for die design, manufacturing, and testing (first article inspection). Subsequent orders are faster.
• Kosten: Higher initial cost due to the tooling investment. The per-piece cost might be higher or lower than standard depending on complexity and volume, but the total project cost can be lower if custom profiles eliminate assembly steps or other components.
• Suitability: Ideal for products requiring unique shapes, integrated functionality, optimized performance (weight/strength), reduced assembly labor, high volumes (where tooling cost is amortized), or specific aesthetic requirements.

Key Differences Summarized

Choosing custom aluminum extrusion profiles is an investment in getting the genau part needed, potentially saving significant downstream costs in machining, assembly, and part count, despite the initial tooling expense. Standard profiles offer speed and lower upfront cost for less demanding applications.

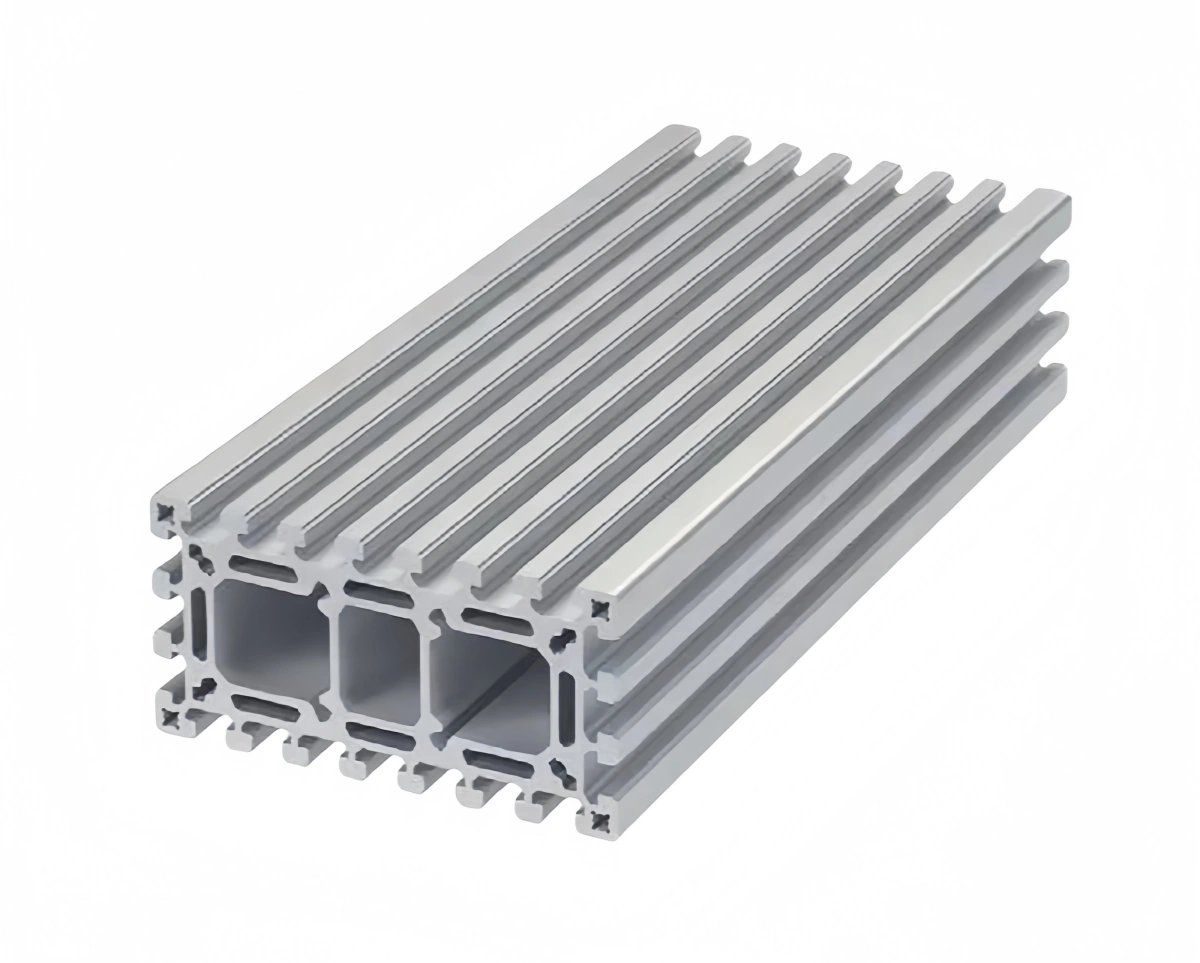

What shapes can aluminum extrusion profiles form?

Think aluminum extrusions are just simple bars and tubes? This misconception might be limiting your design potential! The reality I see in our factory is far more versatile and exciting.

From my direct experience at ALUT, aluminum extrusion profiles can form an astonishing variety of shapes. We routinely produce everything from basic solid bars and angles to incredibly complex, multi-void hollow sections and intricate semi-hollow designs with features integrated directly into the profile.

The aluminum extrusion process is remarkably adaptable, offering engineers significant freedom in designing component cross-sections. If you can draw a continuous 2D shape, there’s a high probability it can be extruded in aluminum. The limitations are more related to die engineering, metal flow physics, and cost-effectiveness rather than fundamental impossibility. Let’s explore the main categories of shapes achievable with aluminum extrusion profiles:

Solid Profiles

These are the simplest form, having no enclosed voids.

• Beschreibung: The cross-section is entirely solid metal.
• Examples: Round rods, square bars, rectangular bars, flat strips, angles (L-shapes), channels (U-shapes), T-sections, Z-sections, hexagonal bars.
• Anpassungen: Even solid aluminum extrusion profiles can be customized with grooves, ribs, varying thicknesses, asymmetrical features, or curved elements on the exterior.

Hollow Profiles

These profiles feature one or more fully enclosed voids or cavities within the cross-section.

• Beschreibung: The die includes one or more internal mandrels held by supporting bridges. Molten aluminum flows around the bridges and welds back together perfectly behind them to form the continuous void.
• Examples: Standard square, rectangular, and round tubes. More complex examples include multi-chambered profiles for window and door systems (providing thermal breaks), conduits with internal dividers, or complex structural members.
• Complexity: Designing and manufacturing dies for hollow aluminum extrusion profiles is significantly more complex and costly than for solid profiles due to the intricate internal structure (mandrel and bridges).

Semi-Hollow Profiles

These profiles have a partially enclosed void, where the area of the void is large relative to the width of the opening (gap).

• Beschreibung: They represent a complexity level between solid and hollow shapes. Metal must flow through a relatively narrow gap into a wider cavity.
• Examples: Channels with very deep legs relative to the opening, C-shapes, profiles with undercut features.
• Challenge: Designing the die requires careful management of the “tongue” – the part of the die forming the narrow gap. A high tongue ratio (depth of void vs. gap width) makes the die more fragile and prone to failure.

Shape Complexity Factors

While versatility is high, certain design elements increase difficulty and cost:

• Extreme Wall Thickness Variation: Drastic changes between thick and thin sections can cause uneven cooling and distortion.
• Very Thin Walls: Difficult to fill consistently and maintain tolerance.
• Sharp Internal Corners: Can impede metal flow and create stress points in the die. Slight radii are preferred.
• Deep, Narrow Channels/Gaps: Challenging for metal flow and die strength (tongue ratio).
• High Asymmetry: Can lead to twisting or bowing during cooling if not managed carefully through die design and cooling control.

Examples by Shape Category

Understanding these shape possibilities and limitations allows designers to leverage the full potential of aluminum extrusion profiles while ensuring manufacturability through practices like Design for Manufacturability (DFM), often involving collaboration with the extruder.

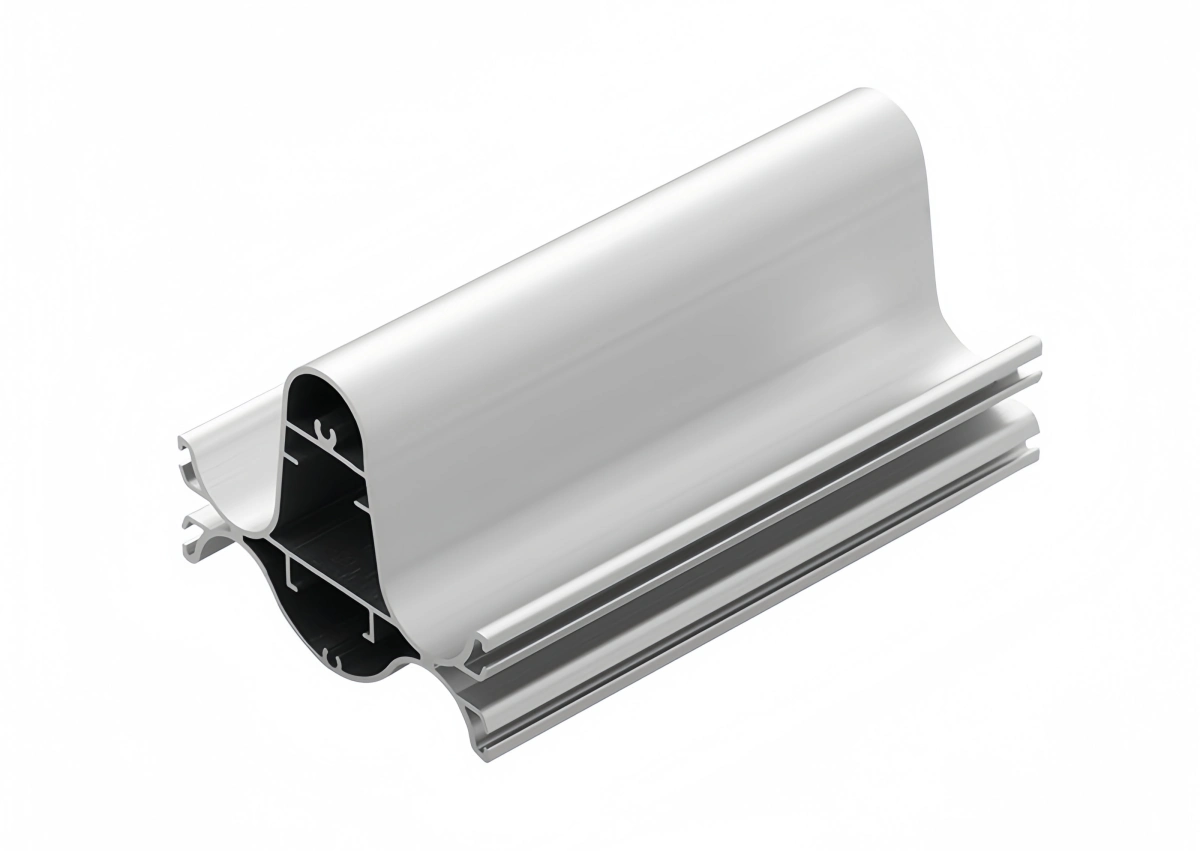

How strong are aluminum extrusion profiles?

Is aluminum strong enough for your structural or mechanical needs? It’s a common concern, especially compared to steel. But let me assure you, the strength of aluminum extrusion profiles can be tailored and is often impressive.

Based on the alloys and tempers we work with constantly at ALUT, the strength of aluminum extrusion profiles varies widely but can be very high, rivaling some steels, especially considering aluminum’s low density. Strength is primarily determined by the specific aluminum alloy used and the heat treatment (temper) applied after extrusion.

You cannot judge the strength of an aluminum component simply by its material name. “Aluminum” encompasses a wide range of alloys, each formulated with different elements (like silicon, magnesium, copper, zinc) to achieve specific properties. Furthermore, for many alloys used in aluminum extrusion profiles, heat treatment after extrusion dramatically increases their strength.

Key Factors Determining Strength:

• Aluminium-Legierung: The specific chemical composition is critical. Different alloy series offer different baseline strengths and responses to heat treatment.
  • 6xxx Series (Al-Mg-Si): The most common for extrusions. Offer good strength (moderate to high), excellent extrudability, and are heat-treatable. 6063 is standard for architectural uses (moderate strength, good finish). 6061 provides higher strength for structural applications. 6082 is even stronger.
  • 7xxx Series (Al-Zn-Mg): Offer the highest strengths, comparable to some steels. Used in high-stress applications like aerospace and performance equipment. Can be more challenging to extrude.
  • 5xxx Series (Al-Mg): Good moderate strength (from work hardening), excellent corrosion resistance. Used in marine environments. Not typically heat-treated for strength enhancement after extrusion.
• Bezeichnung der Temperatur: This suffix (e.g., -T4, -T5, -T6) indicates the thermal treatment applied, significantly affecting the final strength of heat-treatable alloys.
  • -F (As Fabricated): No controlled treatment.
  • -O (Annealed): Softest condition.
  • -T4 (Solution Heat Treated, Naturally Aged): Moderate strength, good formability.
  • -T5 (Cooled from Extrusion, Artificially Aged): Common temper providing good strength and stability.
  • -T6 (Solution Heat Treated, Artificially Aged): Typically yields the highest strength and hardness for alloys like 6061. Very common for structural aluminum extrusion profiles.

Strength-to-Weight Ratio: Aluminum’s Advantage

While steel might offer higher absolute strength in some cases, aluminum’s density is only about one-third that of steel. This gives aluminum extrusion profiles an outstanding strength-to-weight ratio. A well-designed aluminum component can provide the required structural integrity at a fraction of the weight of a steel equivalent, which is crucial in transportation, aerospace, and manual handling applications.

Strength Comparison Table (Typical Minimum Yield Strength)

(Note: Values are typical minimums and can vary.)

As the table shows, common structural aluminum like 6061-T6 offers yield strength comparable to mild steel but at significantly lower weight. By selecting the appropriate alloy and temper, engineers can design aluminum extrusion profiles that meet demanding strength requirements effectively.

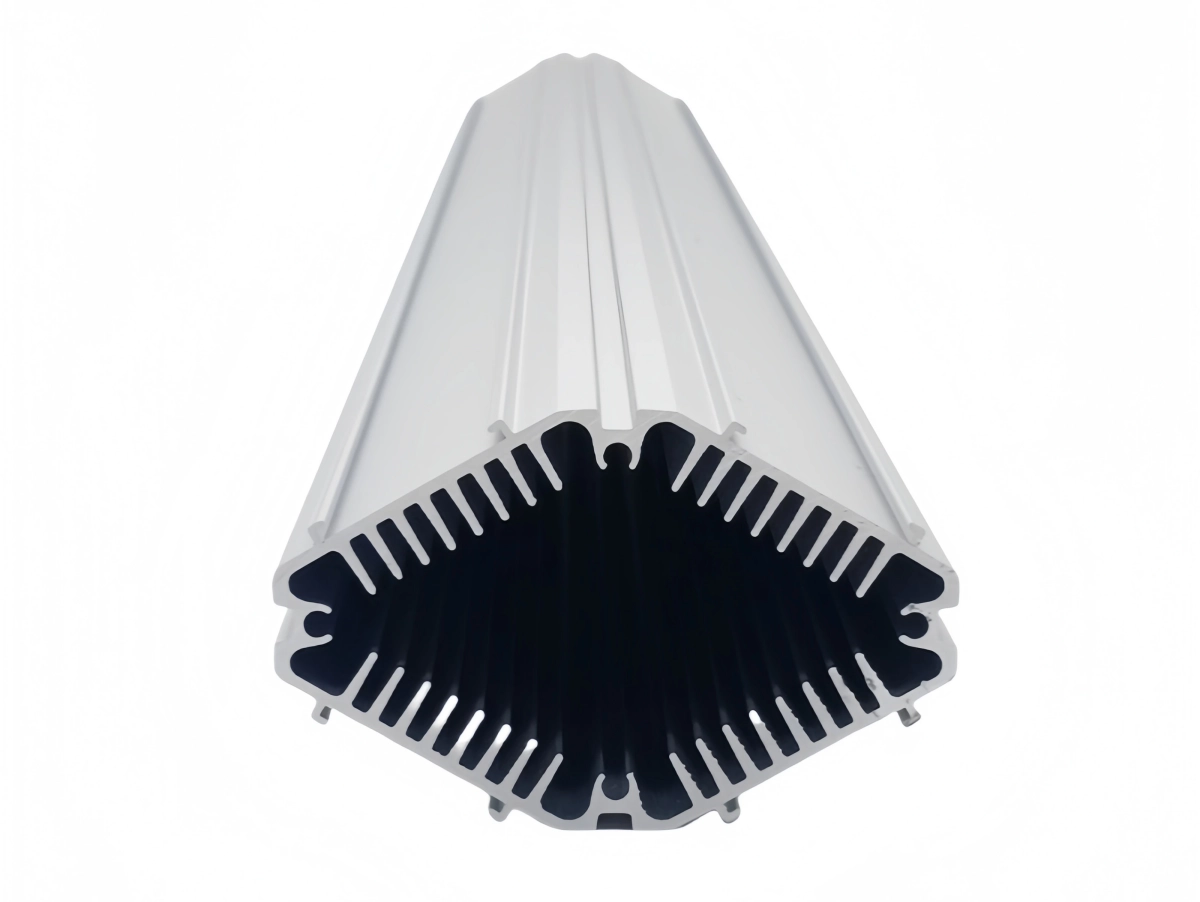

What types of aluminum extrusion profiles exist?

Beyond just shape, how are aluminum extrusion profiles categorized? Thinking about their common uses helps understand the different types available for specific industries and functions. Let me break down some primary categories I encounter frequently.

From my experience supplying various markets at ALUT, aluminum extrusion profiles are often typed by their primary application. Common categories include architectural profiles (windows, doors), structural profiles (frames, beams), specialized heat sinks for thermal management, modular T-slot framing systems, and various standard shapes like tubes and bars.

While the extrusion process can create nearly any shape, certain types of aluminum extrusion profiles have become standardized or commonly recognized due to their widespread use in particular applications. Grouping them by function or industry helps clarify the options:

Architectural Profiles

These are designed primarily for building and construction applications, with aesthetics, corrosion resistance, and sometimes thermal performance being key considerations.

• Characteristics: Often made from 6063 alloy for its excellent surface finish capabilities (anodizing, painting) and good corrosion resistance. Designs frequently incorporate features like screw ports, channels for weather stripping, and thermal breaks (insulating barriers within the profile).
• Examples: Window frames, door frames, curtain wall systems, storefronts, handrails, gutters, decorative trim, facade elements.

Strukturelle Profile

Designed for load-bearing applications where strength, stiffness, and durability are paramount.

• Characteristics: Typically made from higher-strength alloys like 6061, 6005A, or 6082 in T6 or similar tempers. Shapes are often optimized for structural efficiency (e.g., I-beams, C-channels, complex hollows).
• Examples: Machine frames, structural beams in buildings or bridges (where appropriate), vehicle chassis components, support structures for solar panels, exhibition stands.

Heat Sink Profiles

Specifically designed to dissipate heat from electronic components or lighting.

• Characteristics: Feature multiple fins to maximize surface area for efficient heat transfer to the surrounding air. Made from alloys with good thermal conductivity (often 6063 or specific 6xxx variants). Design complexity can be high to optimize airflow and thermal performance.
• Examples: Cooling fins for CPUs, GPUs, power supplies, LED lighting fixtures, power electronics. These specialized aluminum extrusion profiles are crucial for thermal management.

T-Slot Profiles

These form modular framing systems popular in industrial automation, guarding, workstations, and DIY projects.

• Characteristics: Feature a characteristic “T” shaped slot along one or more faces. This slot accepts specialized fasteners (T-nuts) allowing components to be easily attached and repositioned without welding or drilling. Usually made from alloys like 6063 or 6061.
• Examples: Machine guards, assembly line structures, workbenches, jigs and fixtures, simulator cockpits, display racks.

Standard Shapes

These are the basic building blocks often available as standard profiles (though they can also be custom).

• Characteristics: Simple, common geometries. Availability varies, but often stocked.
• Examples: Round tubes, square tubes, rectangular tubes, angles (L-shapes), channels (U-shapes), flat bars, round bars. Used in countless general fabrication and structural applications.

Other Specialty Types

The versatility of extrusion means many other application-specific aluminum extrusion profiles exist, such as conduit, pipe, automotive trim, display system components, and furniture parts. The possibilities are vast, often driven by the need for custom solutions.

Schlussfolgerung

Aluminum extrusion profiles offer amazing versatility in shape, strength, and type. Understanding standard versus custom, achievable forms, material properties, and common categories helps you unlock the best solution for your needs.
