Custom Aluminum Extrusions: The Revolutionary Secret to Flawless Manufacturing?

Struggling to find the perfect metal profile for your project? I understand the frustration. Off-the-shelf parts often mean compromises, forcing you to change your design. There is a much better, tailored solution.

As a manufacturer, I can tell you that flawless custom aluminum extrusions are profiles designed and made just for your specific project. They are not standard parts. This gives you complete control over the shape, function, and fit, ensuring your final product is absolutely perfect without any compromises.

Let’s break down what this means for you and your projects. We will explore the details step-by-step, showing you how to get the exact parts you need, improve your product, and even save costs in the long run.

What exactly are custom aluminum extrusions?

Heard the term but not sure what it means? It can sound technical and complex. But I’ll break it down into a very simple and clear concept for you.

From my factory floor experience, I see custom aluminum extrusions as unique aluminum shapes. We create a special die just for your design and push heated aluminum through it. Think of it like a Play-Doh press, but for high-strength metal parts made precisely for your needs.

Alloy billets for custom aluminum extrusions

The core idea is simple: instead of picking a pre-made shape from a catalog, you create your own. This process allows for an incredible level of detail and complexity that is impossible with standard parts. You are not limited to simple squares, rounds, or angles. You can design profiles with multiple hollow sections, screw ports, snap-fit features, and integrated heat sinks, all in a single piece.

This avoids the common problem of trying to make a standard part work, which often leads to extra machining, weaker joints, or a less-than-ideal final product. For purchasing managers, this means fewer steps in the supply chain and a more streamlined assembly process. For product managers, the final product looks and functions exactly as envisioned. The real value of custom aluminum extrusions is this ability to consolidate multiple functions into one intelligently designed profile. This flexibility is the hallmark of modern manufacturing, and it’s why so many industries are turning to custom aluminum extrusions for a competitive edge. It’s about getting a part that is not just “close enough,” but is perfect for the job.

Standard Profiles vs. Custom Profiles

To make it clearer, let’s compare standard profiles with custom profiles side-by-side. This helps show why a custom approach can be a superior choice for any serious project that requires precision.

FeatureStandard Aluminum ProfilesCustom Aluminum Extrusions
DesignLimited to existing shapes (L, T, U, etc.)Unlimited, based on your specific needs
ToolingNo tooling cost, readily availableInitial investment in a custom die
FunctionalityBasic, often requires extra partsComplex, can combine multiple parts into one
EfficiencyCan lead to material waste and more assemblyOptimized for material use and simple assembly
Best ForSimple projects, prototyping, low-volume needsOptimized products, high-volume production

What are the key benefits of custom aluminum extrusions?

Wondering if going custom is worth the effort? It might seem like an extra step in your process. I’m here to show you the massive, game-changing benefits it delivers for you.

In my experience helping hundreds of clients, the main benefit is getting the exact part you need. This leads to lighter, stronger, and more cost-effective products. You reduce assembly steps and waste when you use custom aluminum extrusions, giving you a huge competitive advantage.

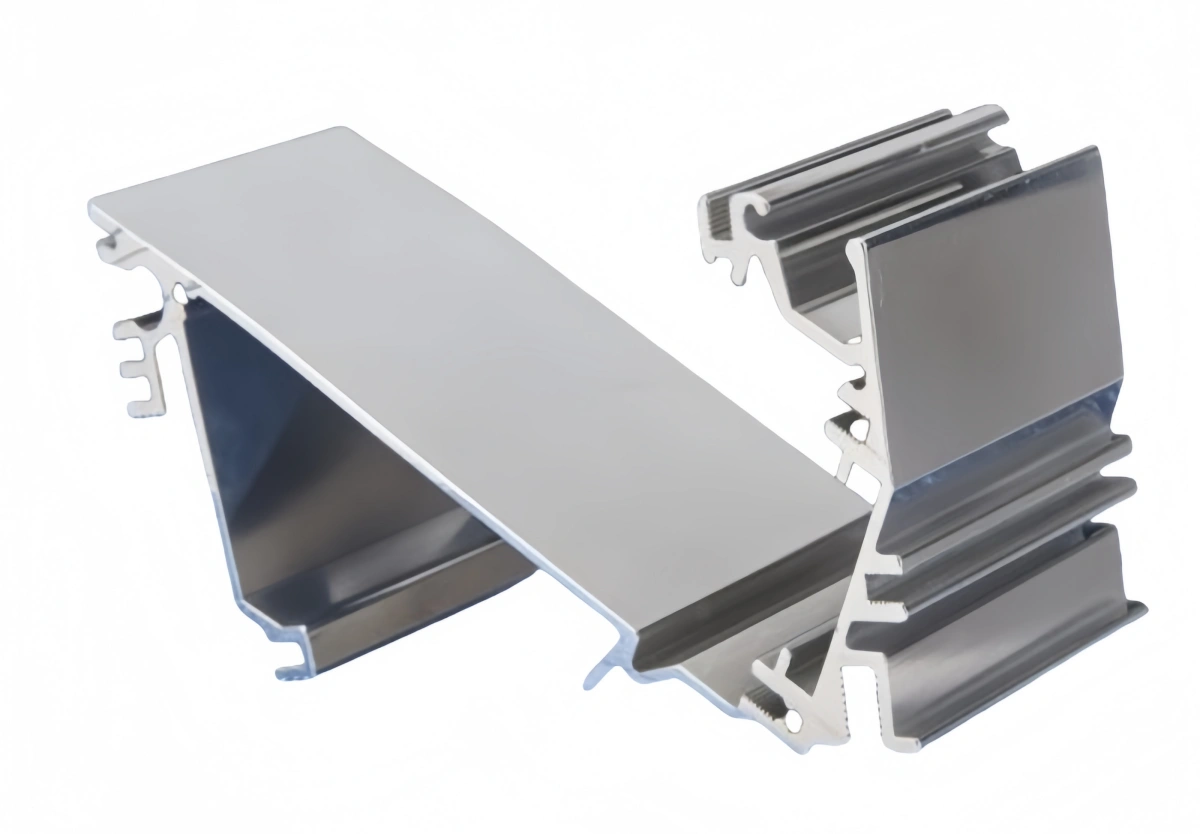

Complex shapes of custom aluminum extrusions

The advantages go far beyond just getting a unique shape. They impact your bottom line, product quality, and production speed. When you design a part for its specific purpose, you can place material exactly where it’s needed for strength and remove it where it’s not. This is a key reason why aluminum is used so heavily in aerospace and automotive industries—it has a fantastic strength-to-weight ratio. A custom profile maximizes this benefit.

This also means your team spends less time on assembly. Instead of bolting or welding three or four standard pieces together, you have one part that does the job of all three. This not only reduces labor costs but also eliminates potential failure points. For a purchasing manager, fewer parts to source and manage means a simpler, more reliable supply chain. Sourcing custom aluminum extrusions from a reliable partner simplifies this entire process. This is a direct solution to the pain point of complex project management and potential delays. The benefits are not just theoretical; they translate into real savings and a better product.

Cost-Effectiveness in the Long Run

Many people see the initial die cost and think custom aluminum extrusions are expensive. But this is short-sighted. For any significant production run, the custom route is often cheaper.

Cost FactorUsing Standard PartsUsing Custom Aluminum Extrusions
Material CostHigher, as parts are not optimized for weightLower, material is used only where needed
Machining CostHigh, requires drilling, cutting, and millingLow to none, features are built into the profile
Assembly LaborHigh, involves joining multiple componentsLow, a single part reduces assembly time
Inventory CostHigh, must stock multiple different partsLow, only one custom part to manage
Tooling CostNoneOne-time die cost
Total Cost (High Volume)HigherLower

How does the process for custom aluminum extrusions work?

Curious about how your part is actually made? The manufacturing process can feel like a mystery. I will open the factory doors and show you exactly how we do it.

I oversee this process daily. It begins with your design, which we use to create a steel die. Then, we heat an aluminum billet to about 500°C and use a powerful press to push it through the die. The long profile that comes out is then cooled, stretched, and cut.

Diagram of the custom aluminum extrusions process

Understanding this process is important because it shows where quality control is critical. Each step has a direct impact on the final part’s dimensional accuracy, surface finish, and structural integrity. As a supplier, we take responsibility for managing this entire workflow to prevent the common pain points of delayed delivery and poor quality. Quality control during the manufacturing of custom aluminum extrusions is paramount. Here is a more detailed look at the key stages we manage for our clients.

Step 1: Die Design and Creation

Everything starts with the die. Based on your CAD drawing, we design a hardened steel die. This is a critical step, as the die’s precision determines the precision of your final part. We use advanced software to simulate the flow of aluminum.

Step 2: Billet Preheating

We take a solid cylinder of aluminum alloy, called a billet, and heat it in an oven to a specific temperature, usually around 450-500°C (850-930°F). The billet is now soft and malleable. The temperature must be controlled precisely.

Step 3: The Extrusion

The heated billet is placed in the extrusion press. A powerful hydraulic ram pushes the billet with immense pressure, forcing the aluminum through the die. This is how all custom aluminum extrusions are formed.

Step 4: Cooling, Stretching, and Finishing

The extruded profile is cooled carefully. After cooling, it is stretched to straighten it and relieve internal stresses. This is a critical quality step. Finally, we cut the long profile to your lengths and can apply secondary finishes like anodizing or powder coating. This ensures every batch meets the exact specifications.

Which alloys are best for custom aluminum extrusions?

Confused by all the aluminum alloy numbers? Choosing the wrong one can lead to project failure. I’ll help you understand the most common and useful alloys for your needs.

From my professional standpoint, the 6000 series alloys, especially 6061 and 6063, are the most popular choices for custom aluminum extrusions. They offer a fantastic balance of strength, corrosion resistance, and workability, making them perfect for most structural and architectural applications.

Press for making custom aluminum extrusions

The alloy you choose is just as important as the profile design. The alloy determines the part’s final strength, durability, and surface finish. While there are hundreds of alloys, only a handful are commonly used for custom aluminum extrusions. The key is to match the alloy’s properties to your product’s end-use. For example, you wouldn’t use the same alloy for a decorative trim piece as you would for a structural support beam.

Working with a knowledgeable supplier is key here. An unprofessional sales rep might not understand these differences. We always start by asking about your application. Will the part be outdoors? Does it need to support a heavy load? The performance of your custom aluminum extrusions is directly tied to this choice. The answers to these questions help us guide you to the perfect alloy, ensuring your part performs as expected. This professional guidance is a core part of our service, preventing costly mistakes when you are specifying new parts.

Common Aluminum Alloys for Extrusion

Here is a simple table to help you understand the most common choices. We use these alloys every day in our factory for all types of custom aluminum extrusions.

Alloy DesignationKey PropertiesCommon Uses
6063Excellent for finishing, good corrosion resistance, medium strengthArchitectural parts, window frames, door frames, decorative trim, heat sinks
6061Great mechanical properties, good weldability, high strengthStructural components, machine parts, bicycle frames, automotive parts
6005AHigher strength than 6063, good for complex shapesRailway cars, truck bodies, structural applications needing strength
7075Very high strength, similar to steelAerospace components, high-stress applications, performance sports gear

Conclusion

Custom aluminum extrusions offer you unmatched design freedom and efficiency. By understanding the process and materials, you can create better, more cost-effective products. We are here to help you succeed.
